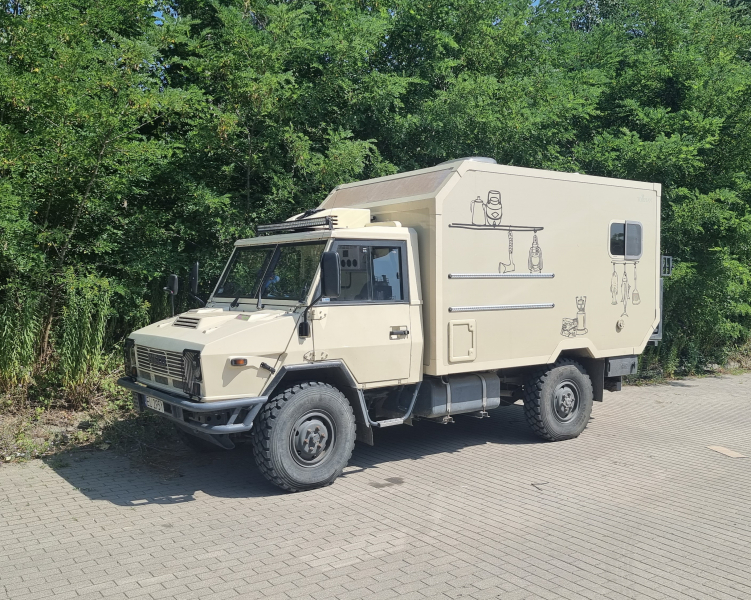

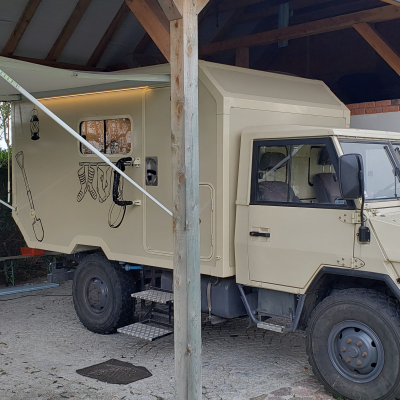

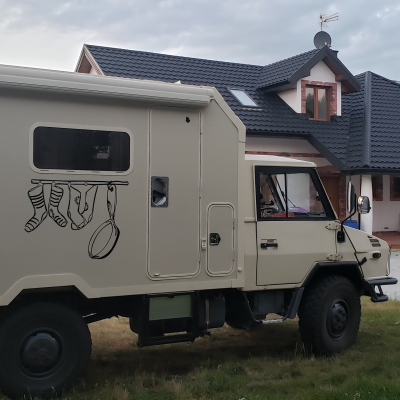

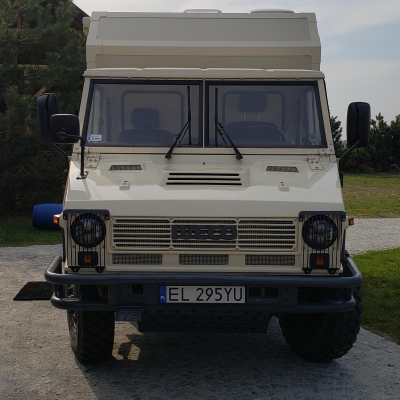

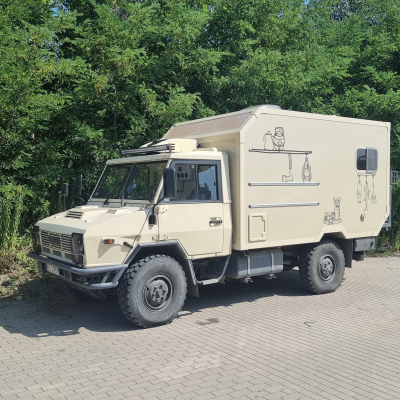

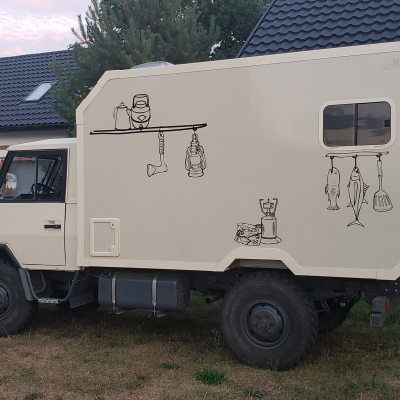

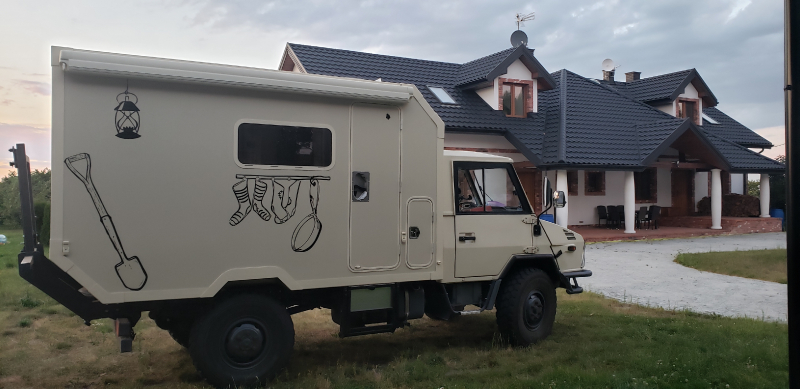

Bruno Iveco 40e13 VM

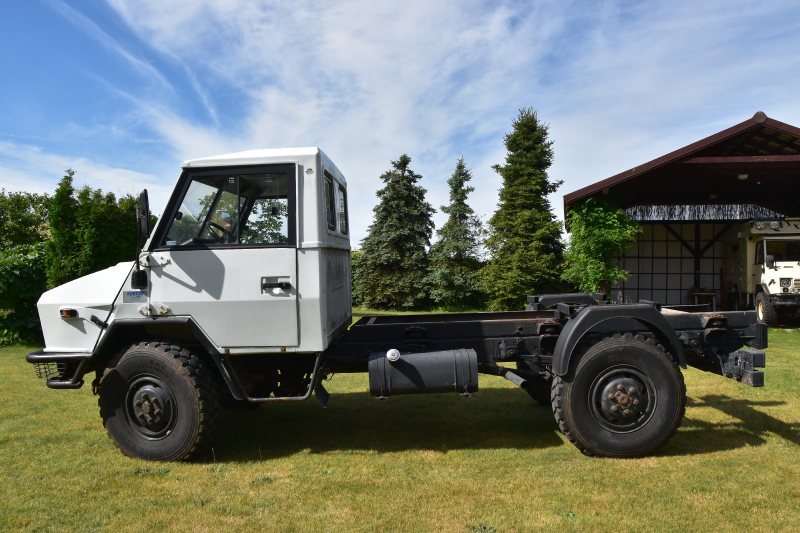

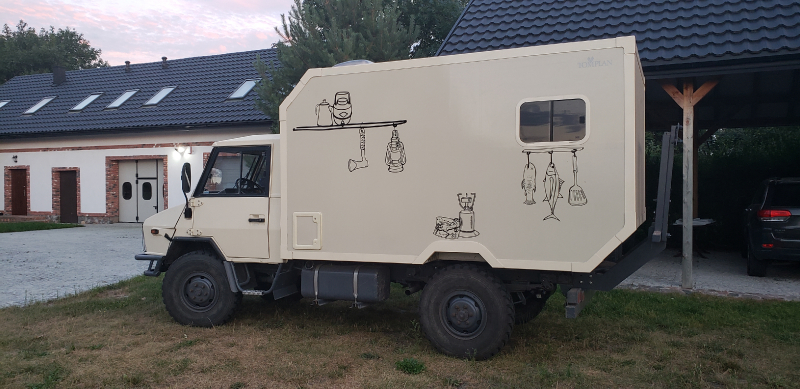

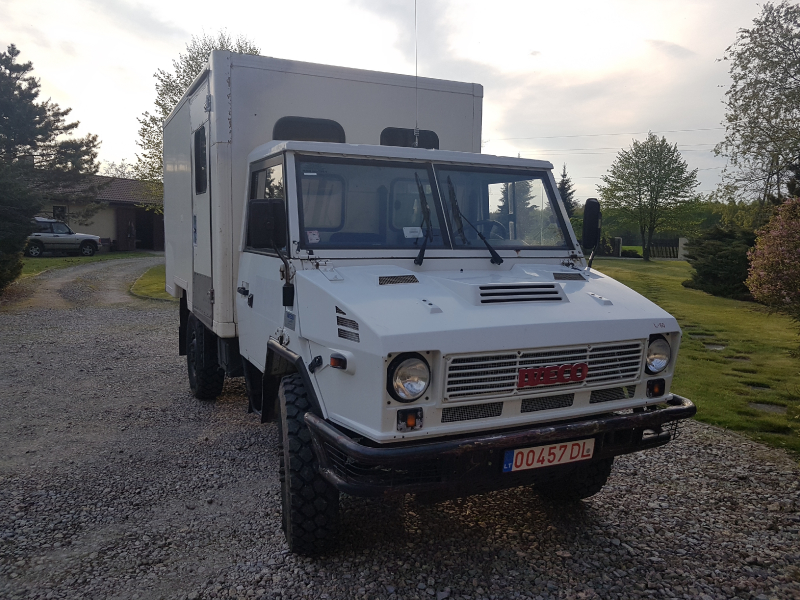

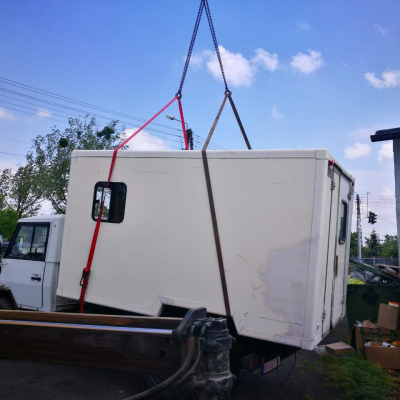

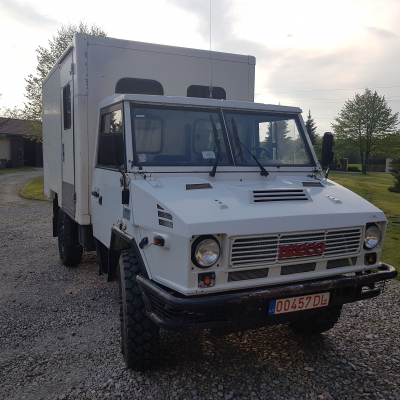

The project was begun on May 2017 when I bought Iveco 40e13 vm which was used earlier by Lithuanian electricity supplier. The first inspiration were my friends, who have a camper which was built on military version of Iveco 40e10. Then I have been inspired by Ulrich with his book with detailed instruction how build my own motorhome. All topics and consideration included in English version Ulrich's book gave me basic to look for my own solutions. Project isn't finished yet but I'm sure I will go on my first travel soon.

Allgemeine Angaben

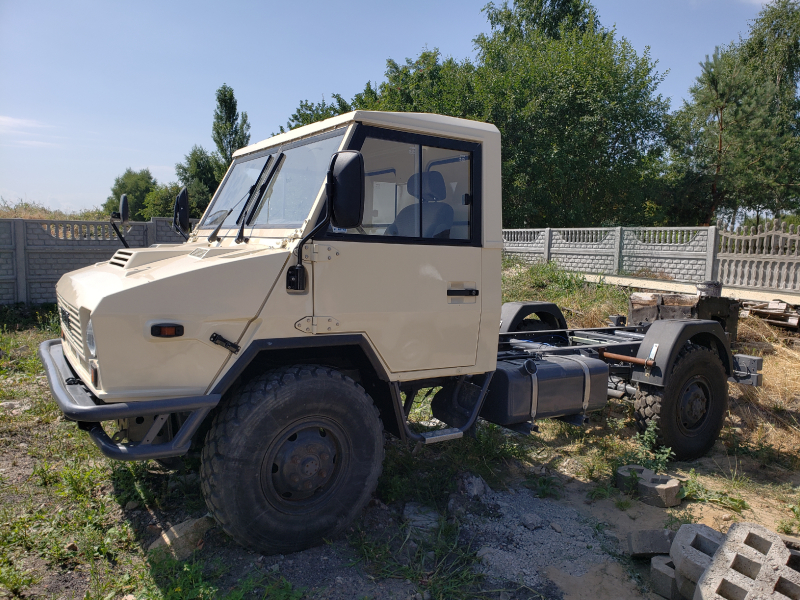

Fahrzeughersteller und Typ Iveco 40e13 VM
Name des Halters Bruno
Land der Zulassung Poland
Baujahr 2005
Fahrzeug steht zum Verkauf? Nein

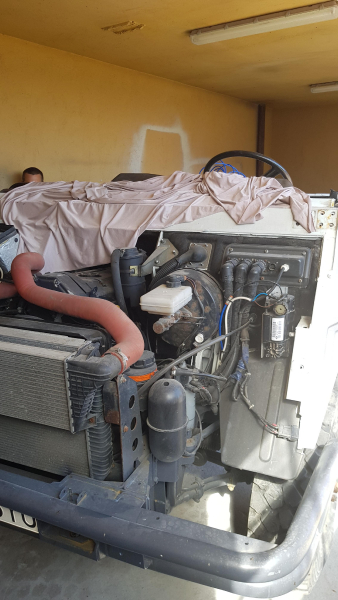

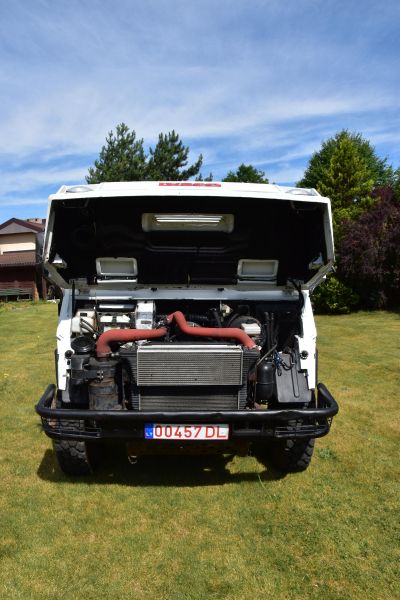

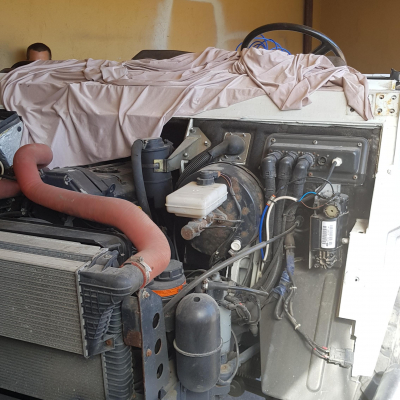

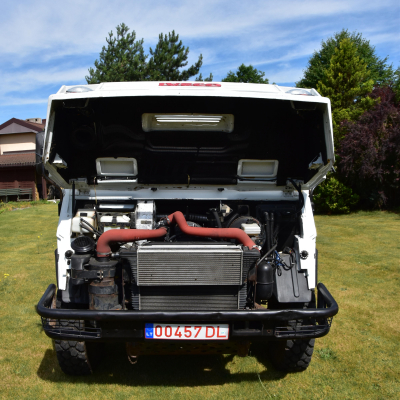

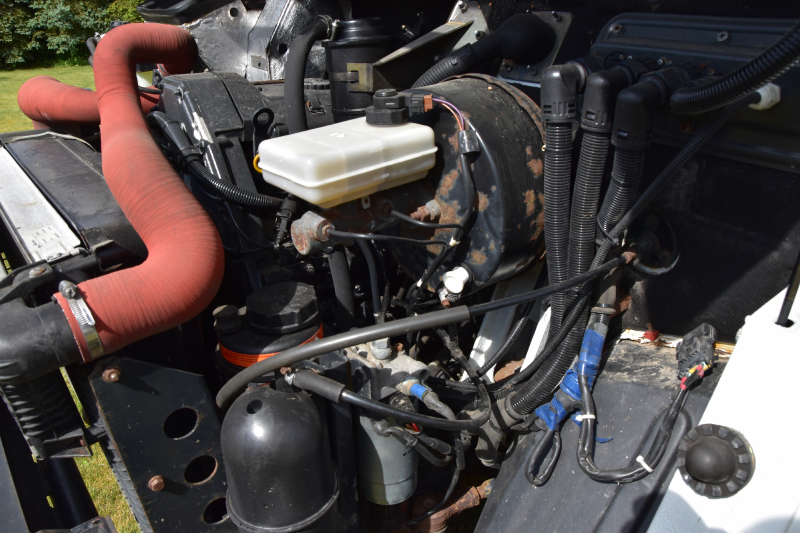

Motor

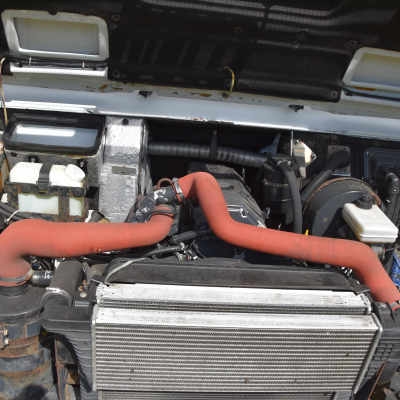

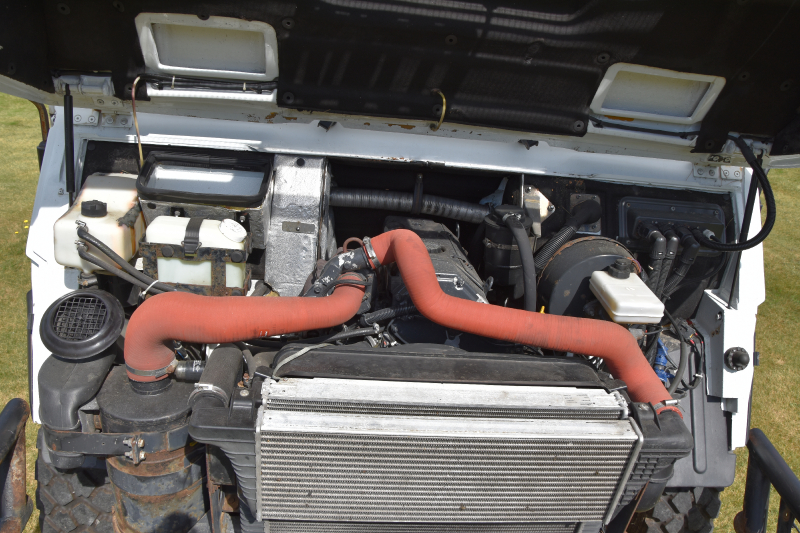

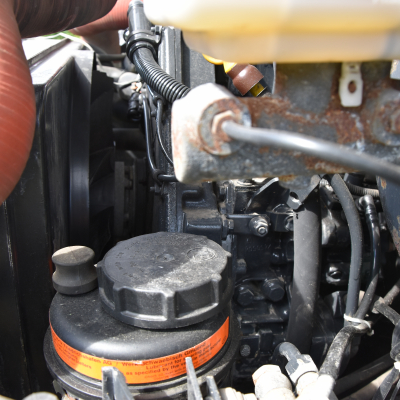

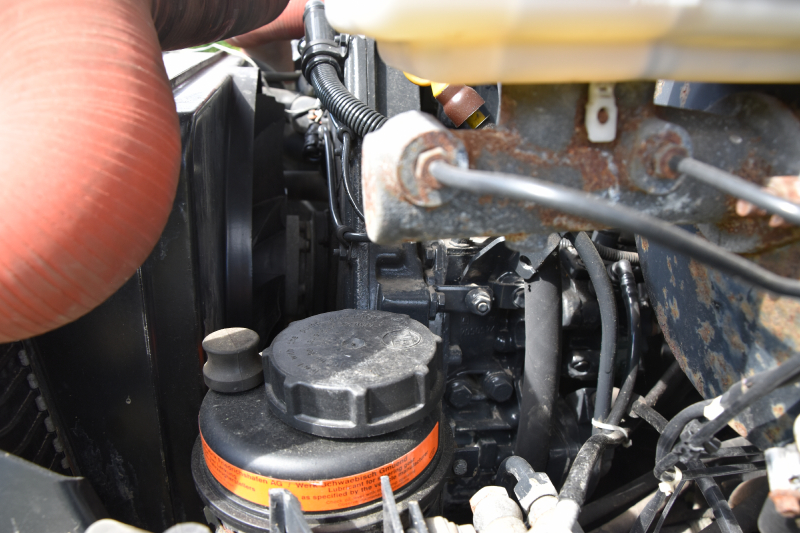

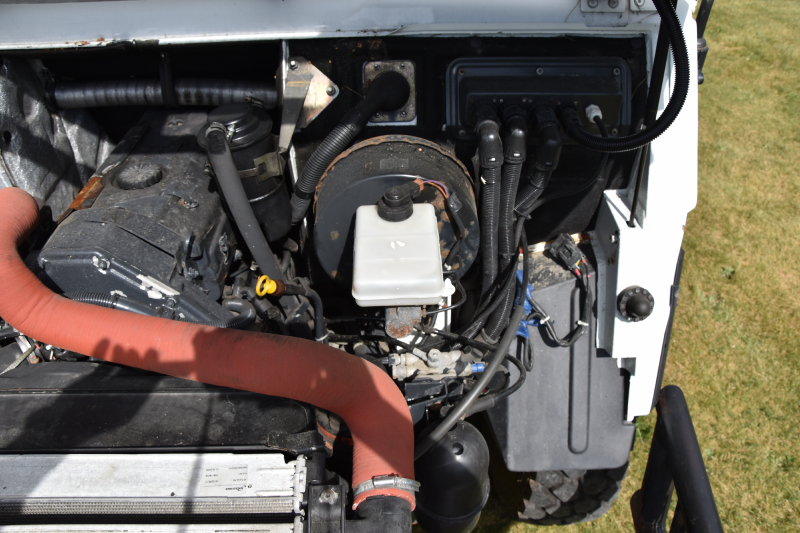

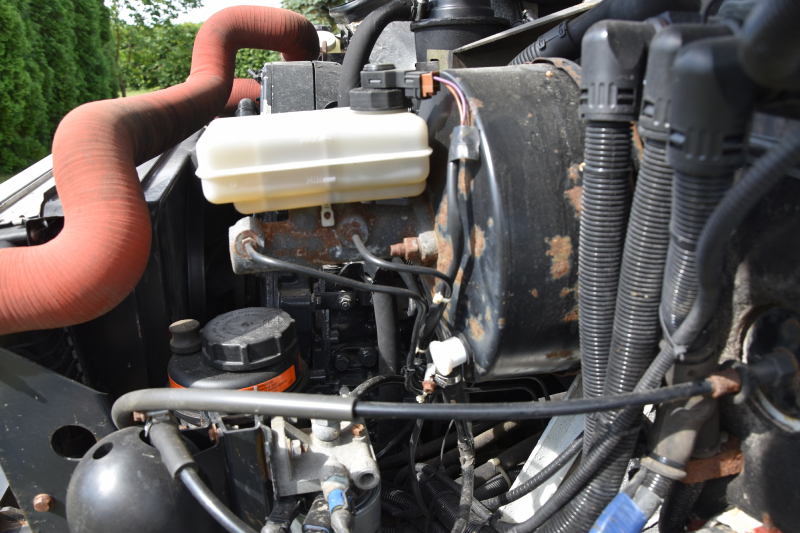

Motortyp IVECO SOFIM 8142.23 Diesel Engine for Vehicle
Hubraum 2826.5
Zylinderzahl 4
Motorleistung in PS 102
Drehmoment 240

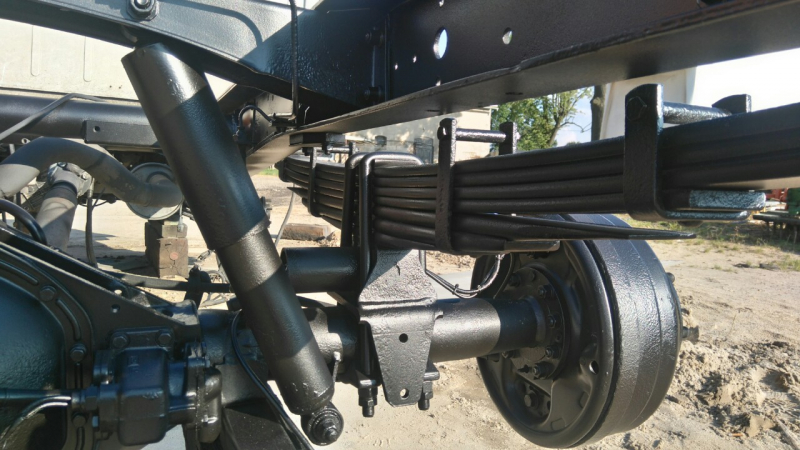

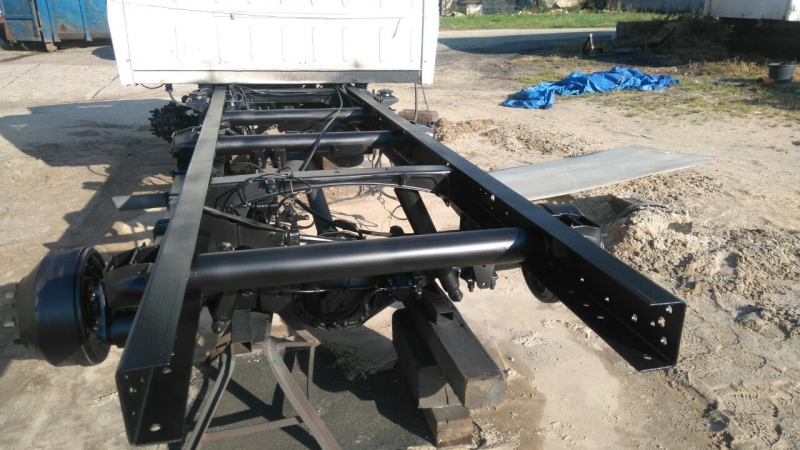

Fahrgestell

Radformel (4x2, 4x4, 6x6, 8x8) 4x4
Radstand 3200

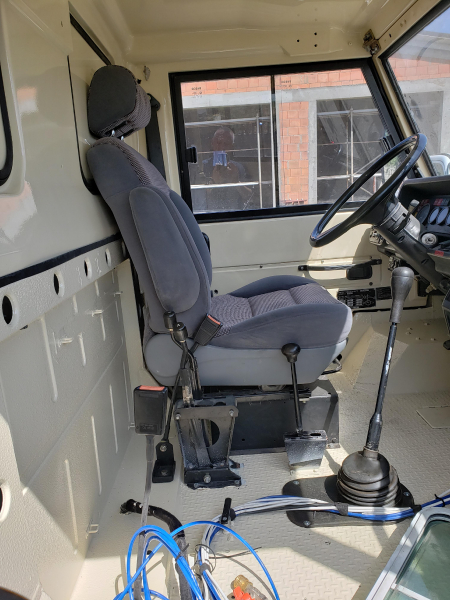

Anzahl der zugelassenen Sitze 3 oryginal, now 2

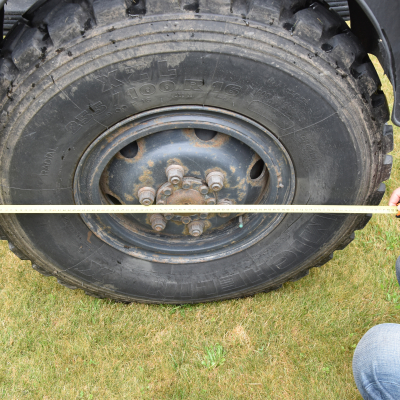

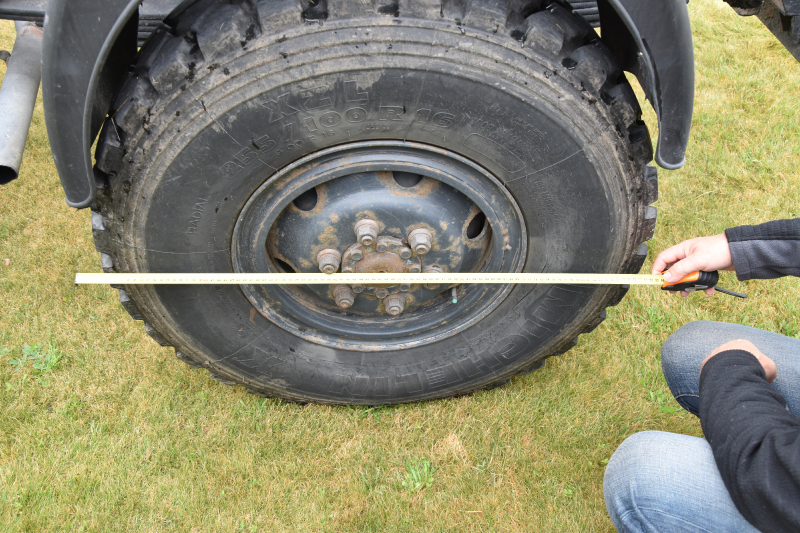

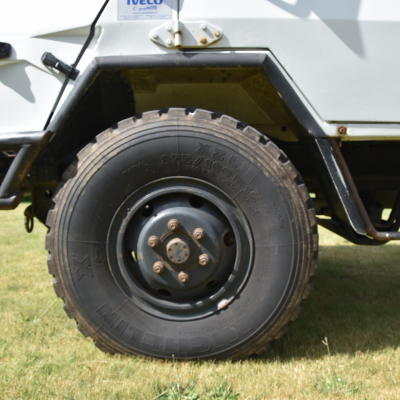

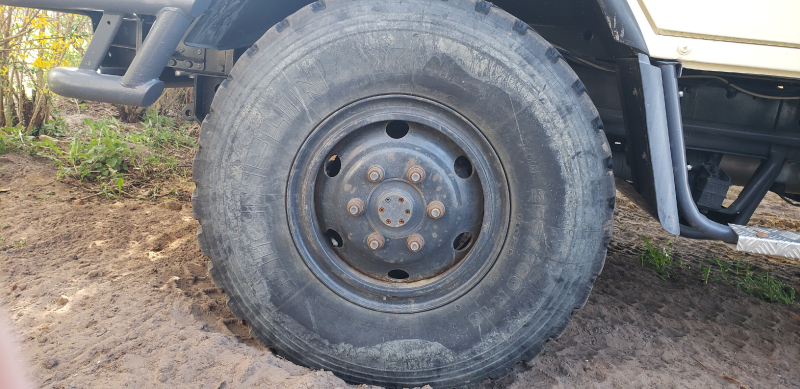

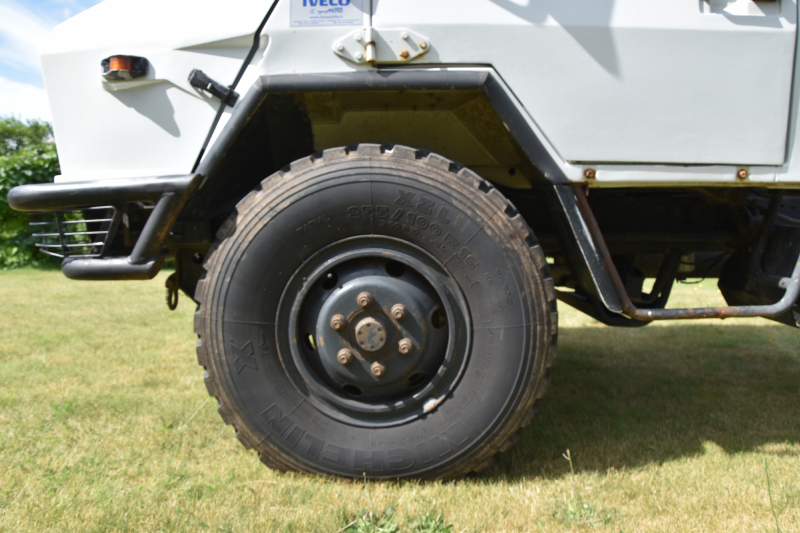

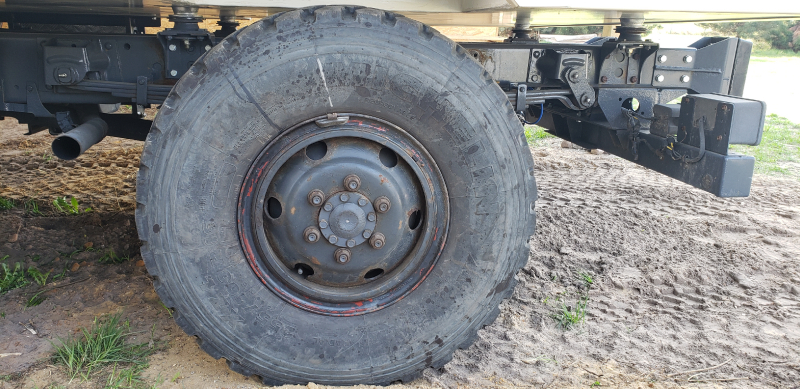

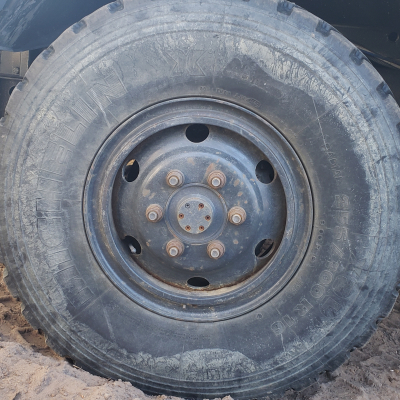

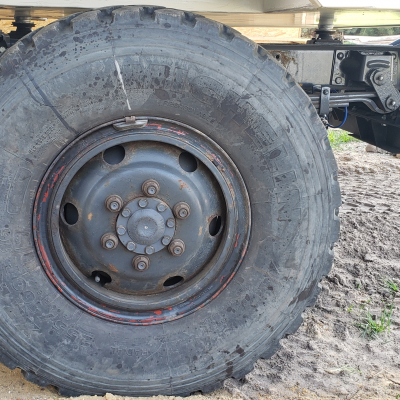

Reifengröße 255x100R16
Felgen 16
Reifenart Michelin

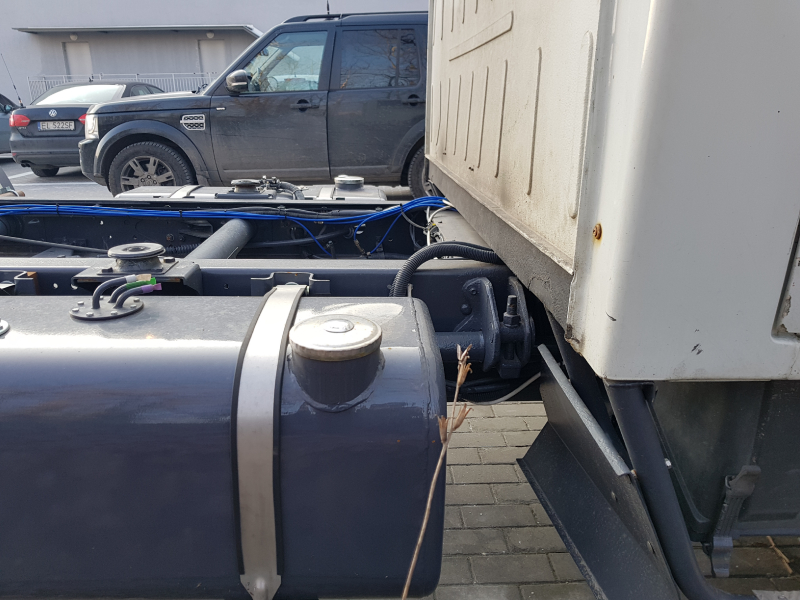

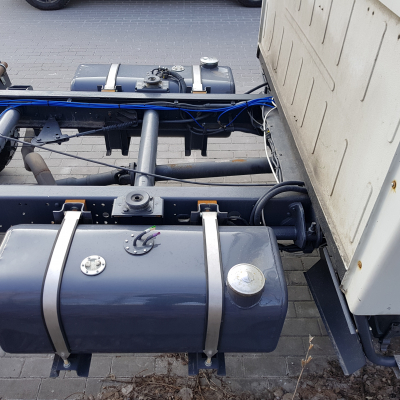

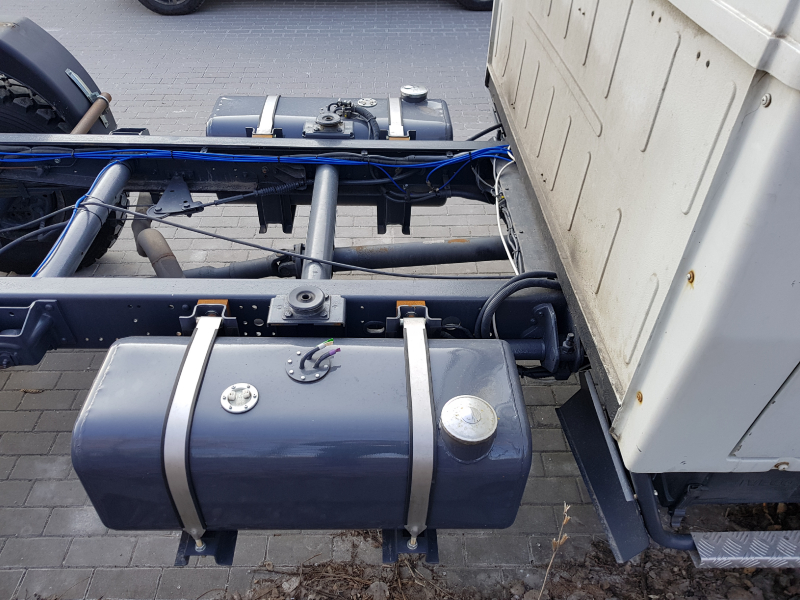

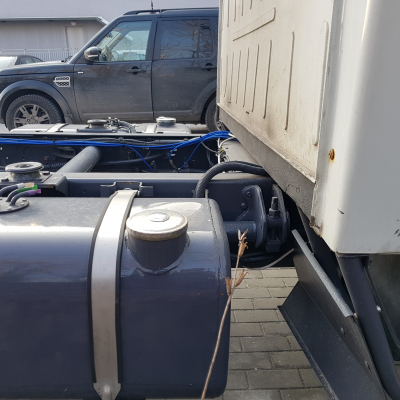

Tankkapazität 2 x 100
Dieselfilter Ja
Sonstiges

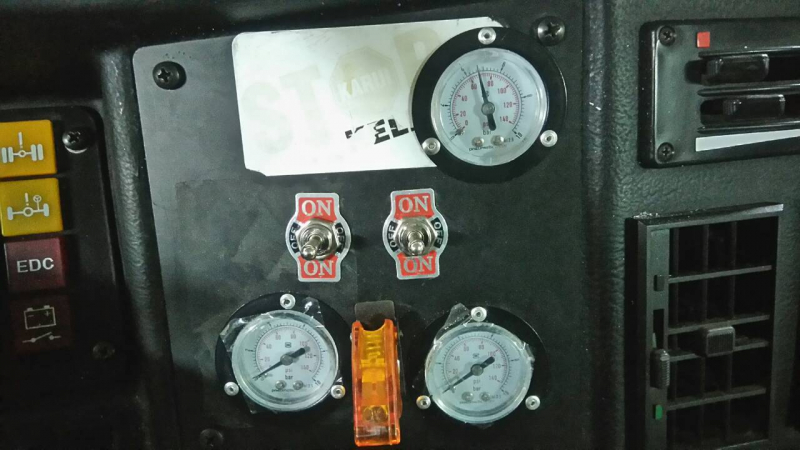

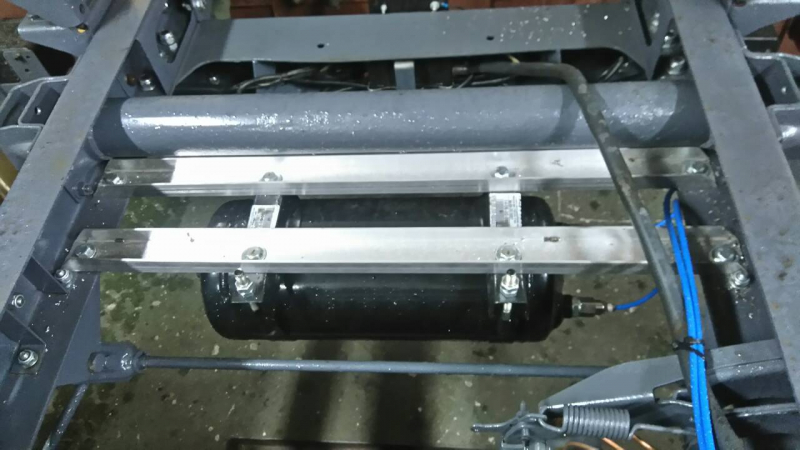

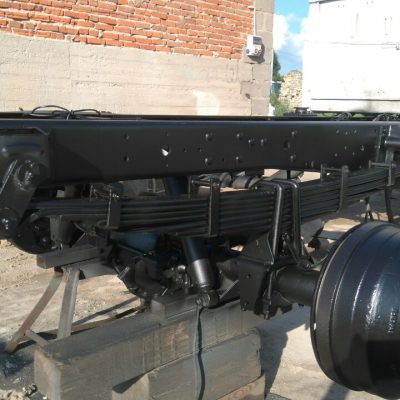

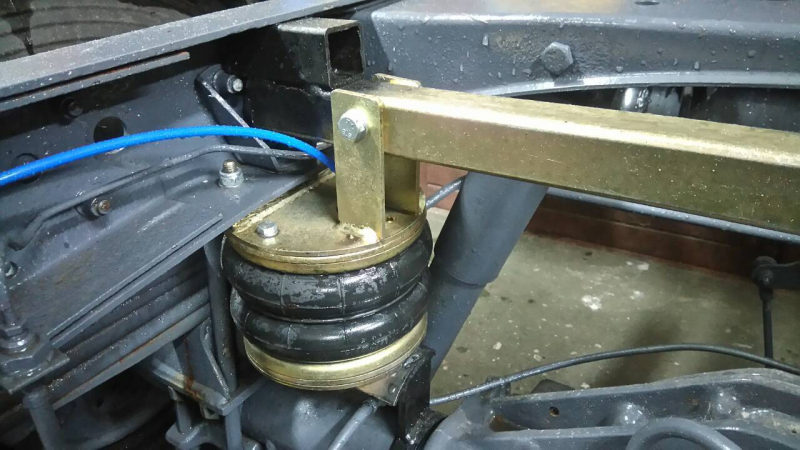

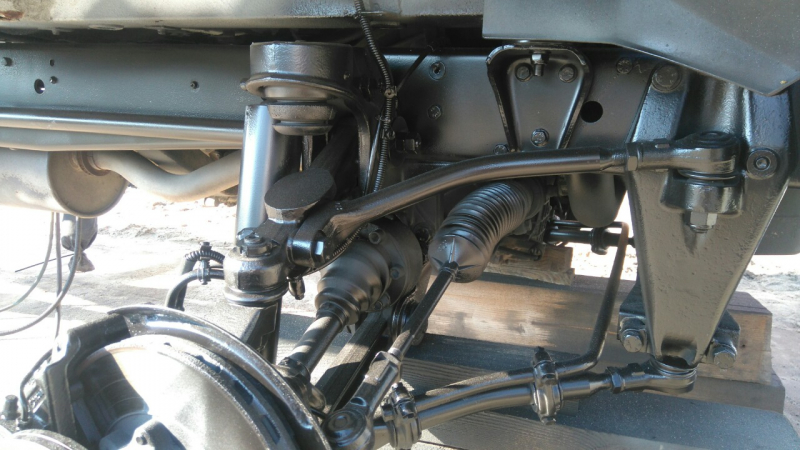

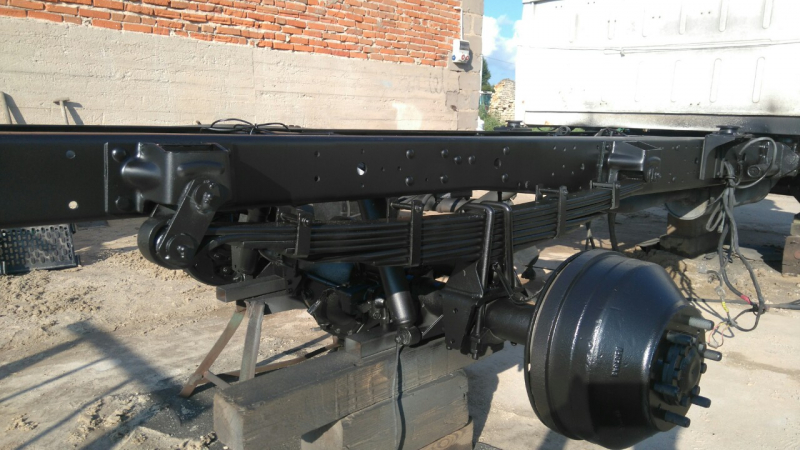

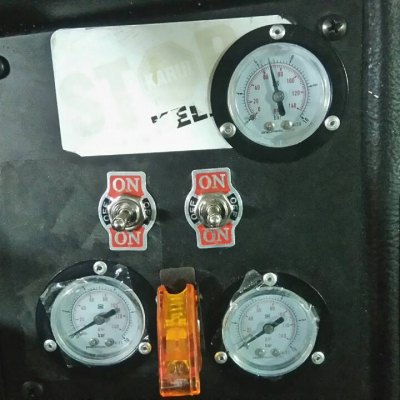

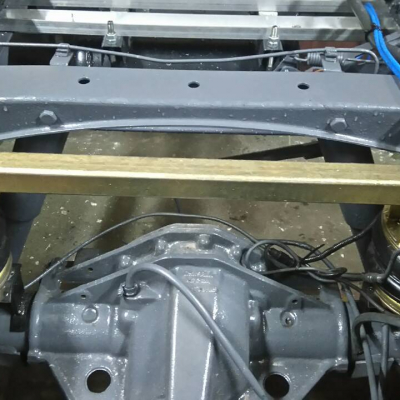

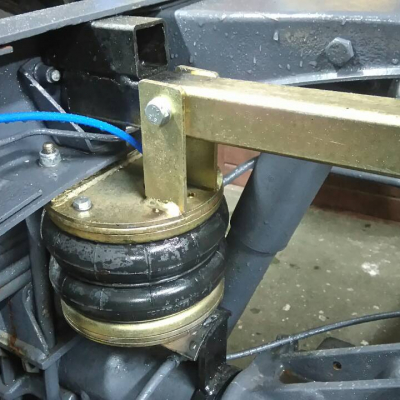

air rear suspension

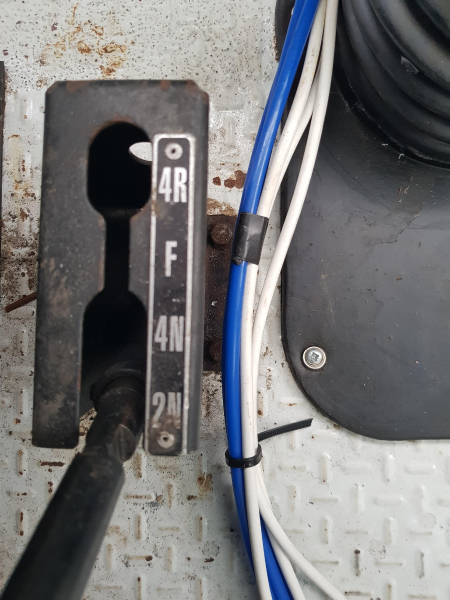

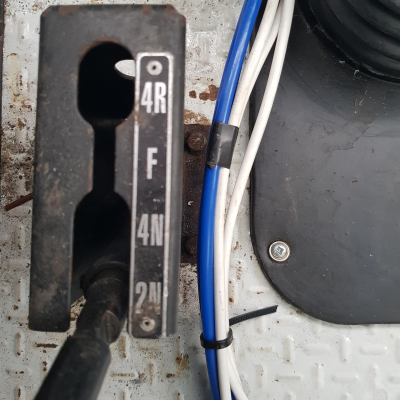

Allrad zuschaltbar oder permanent manually 4WD

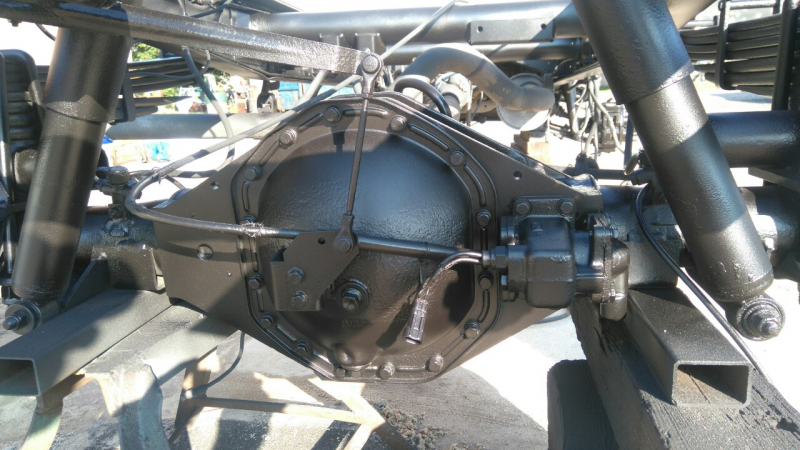

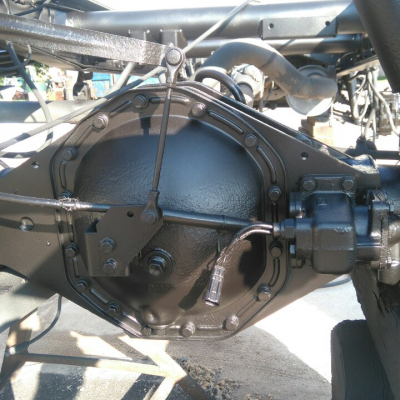

Differenzialsperren any axe, central difflock

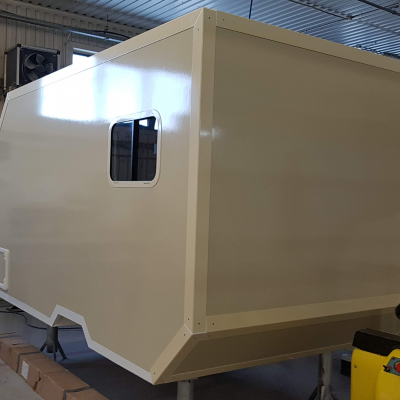

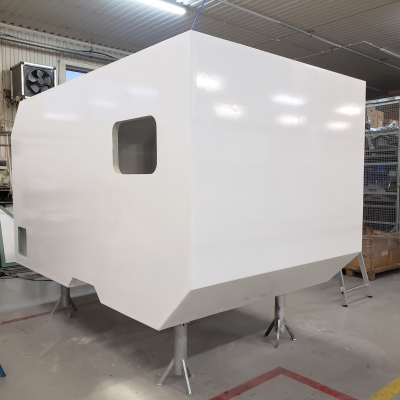

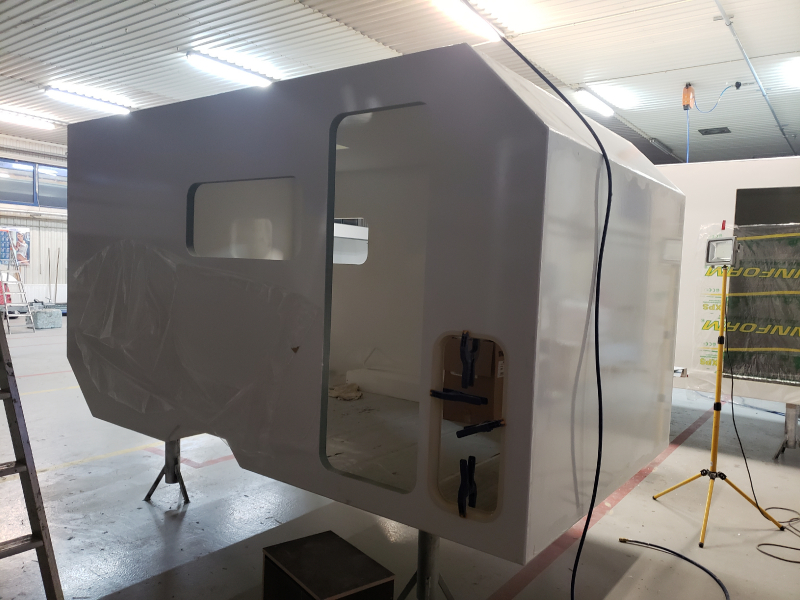

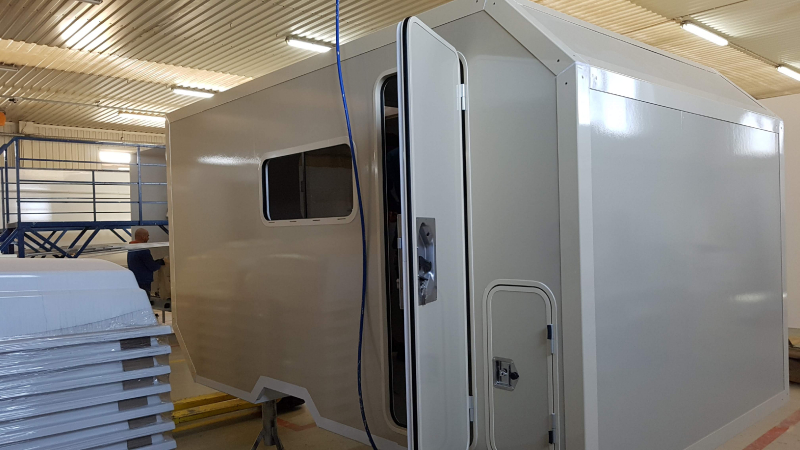

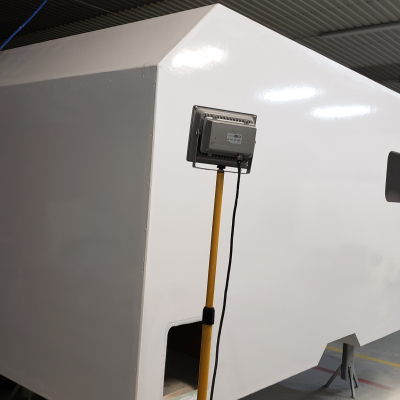

Aufbau

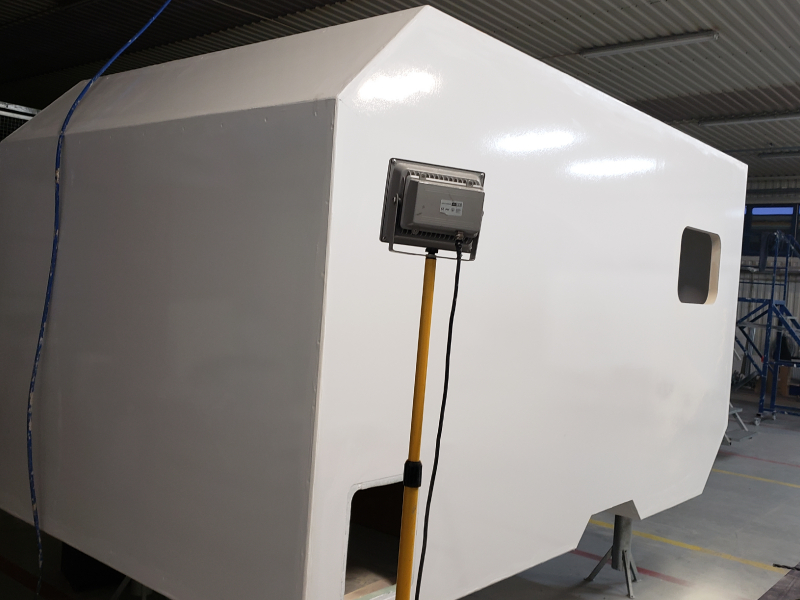

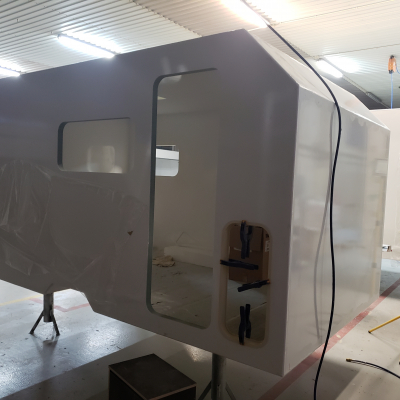

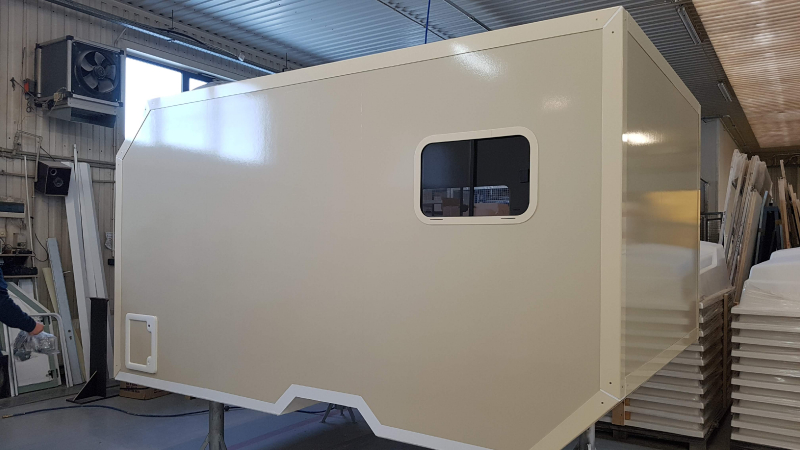

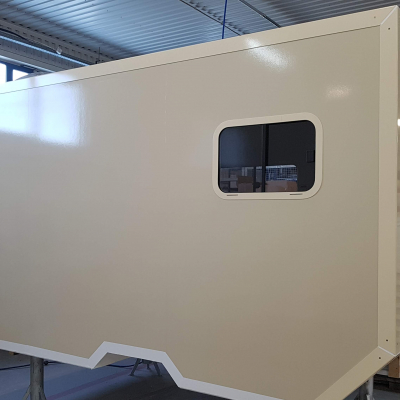

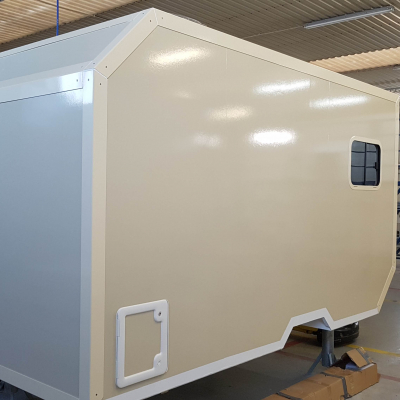

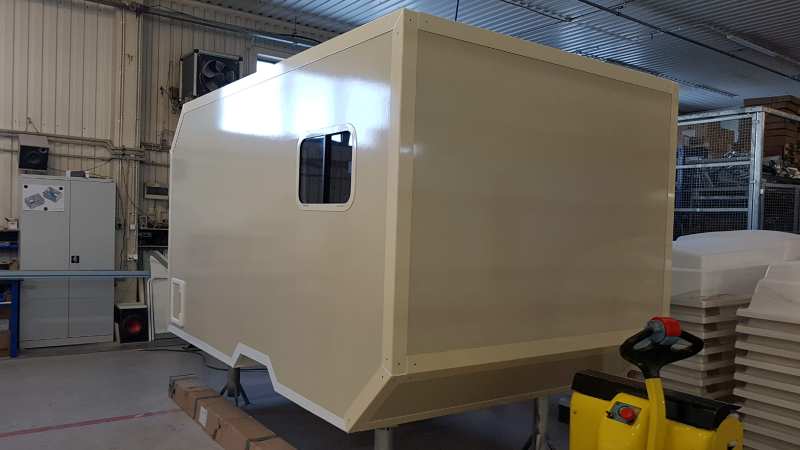

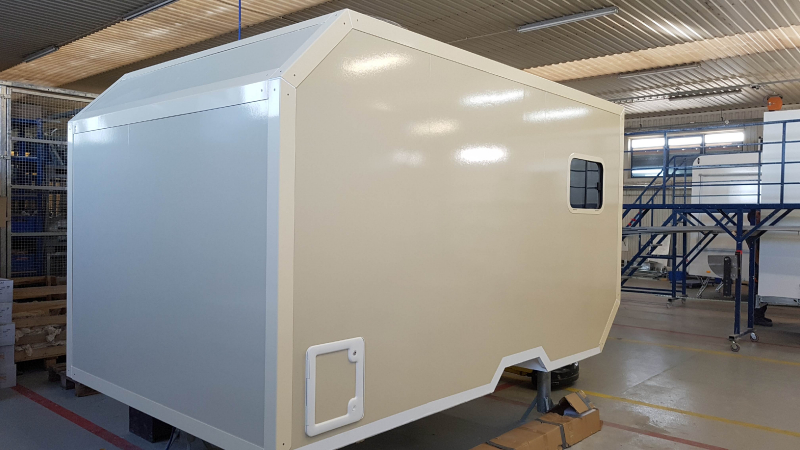

Aufbauhersteller TOMPLAN
Kabinenmaße (Innen) 3352 x 1958 x 1802
Kabinenmaße Abmessungen (außen) 3458 x 2106 x 1940

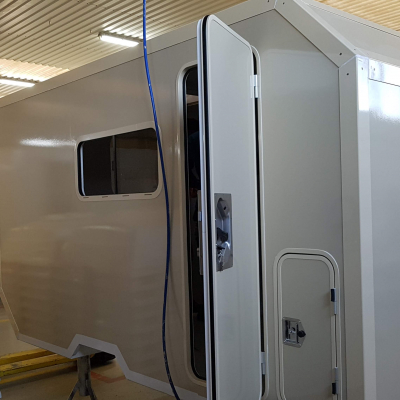

Material der Kabine sandwich made of polyester-glass laminates
Art und Stärke der Dämmung sandwich made of polyester-glass laminates

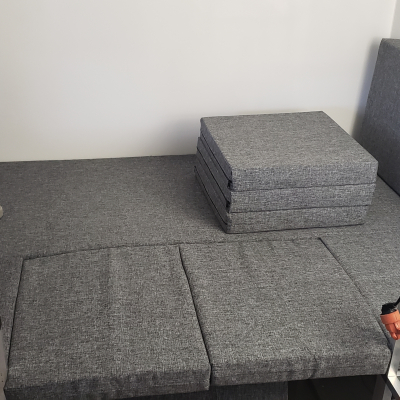

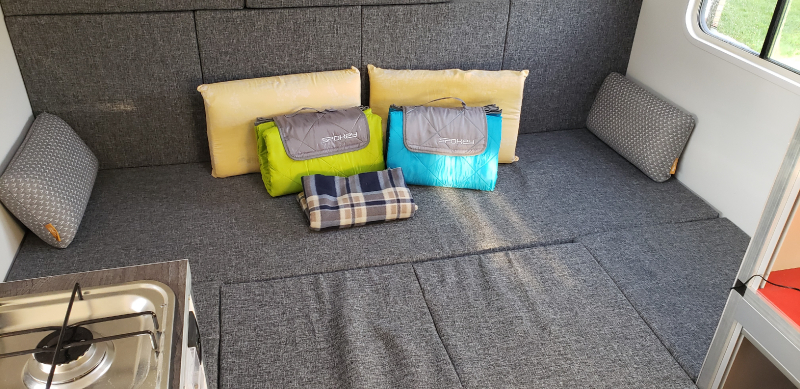

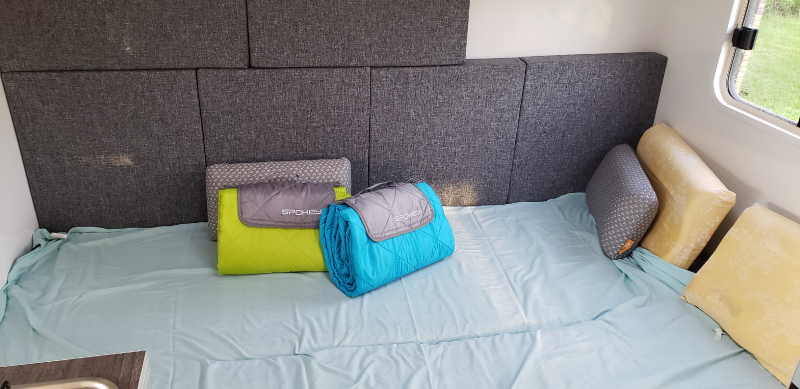

Anzahl der Schlafplätze one 140 x 200

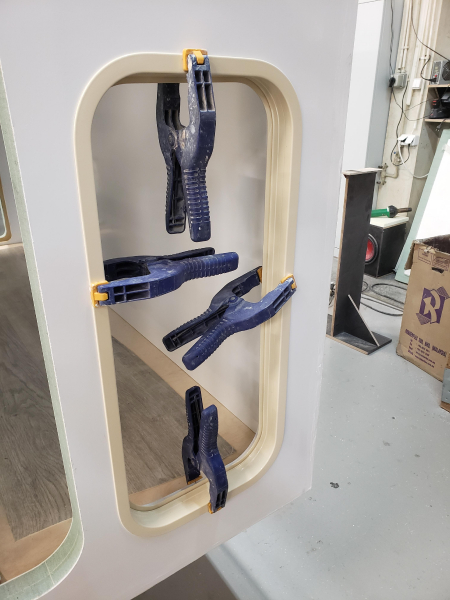

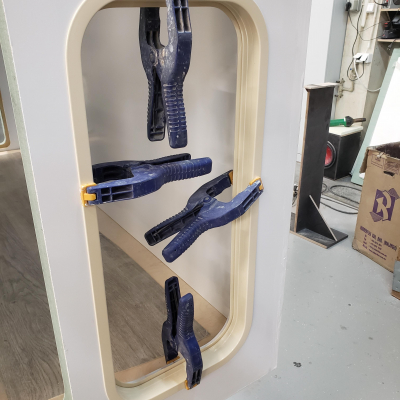

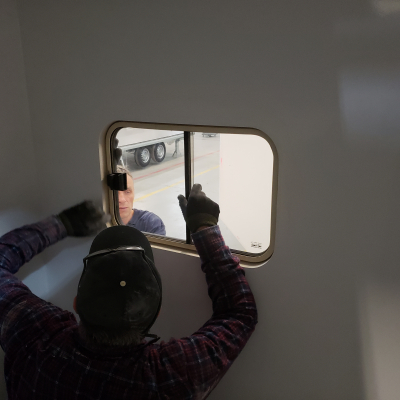

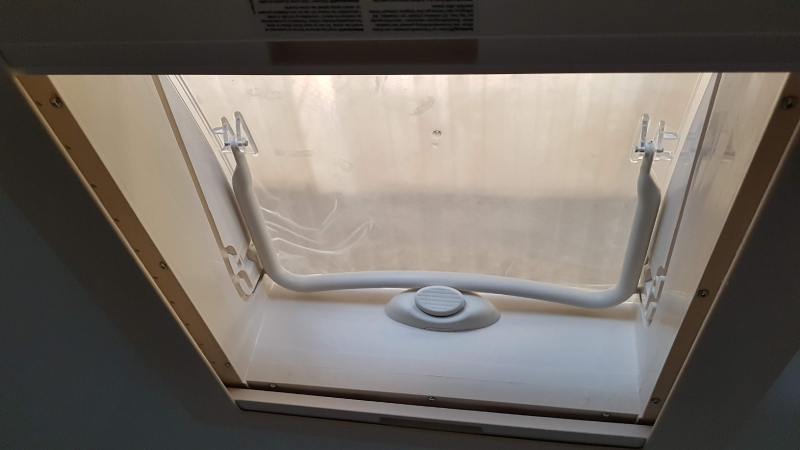

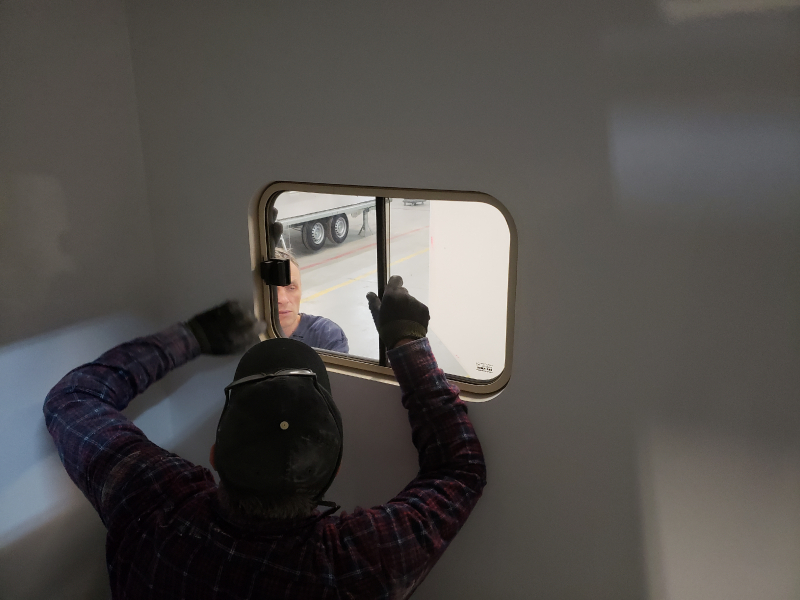

Fenster glass

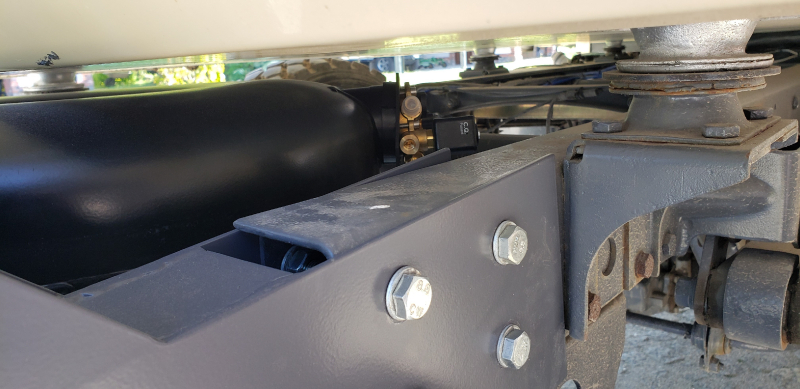

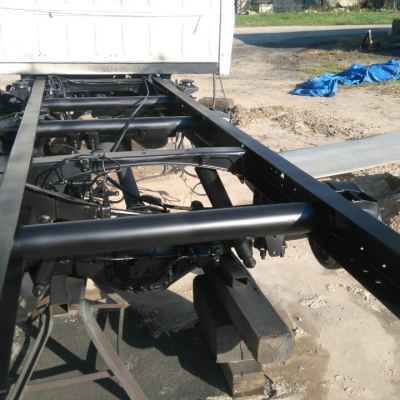

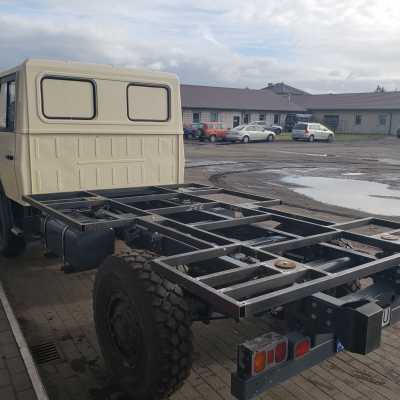

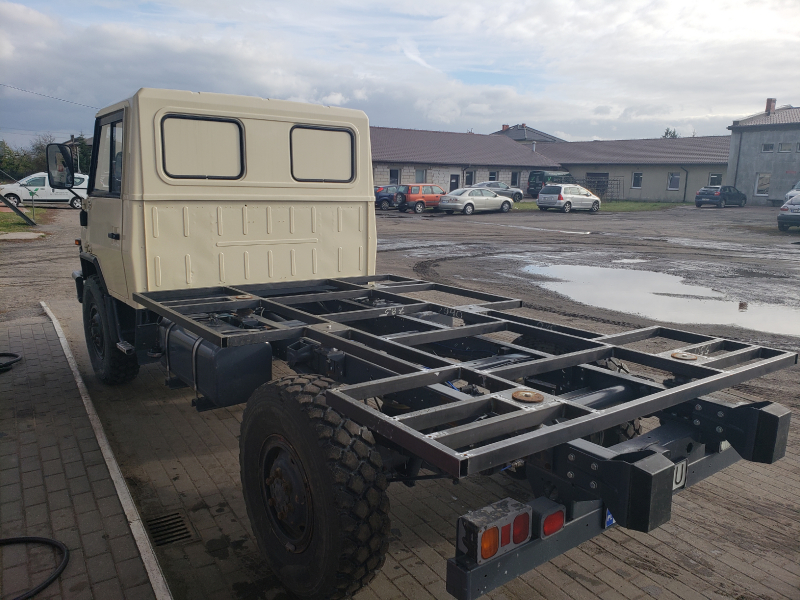

Zwischenrahmen inside food

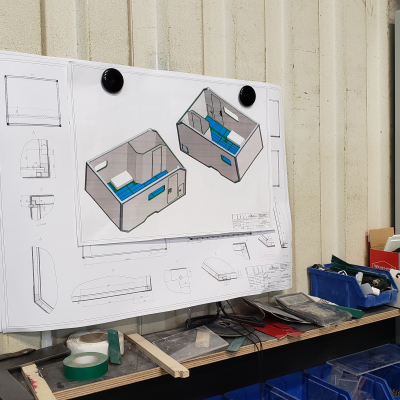

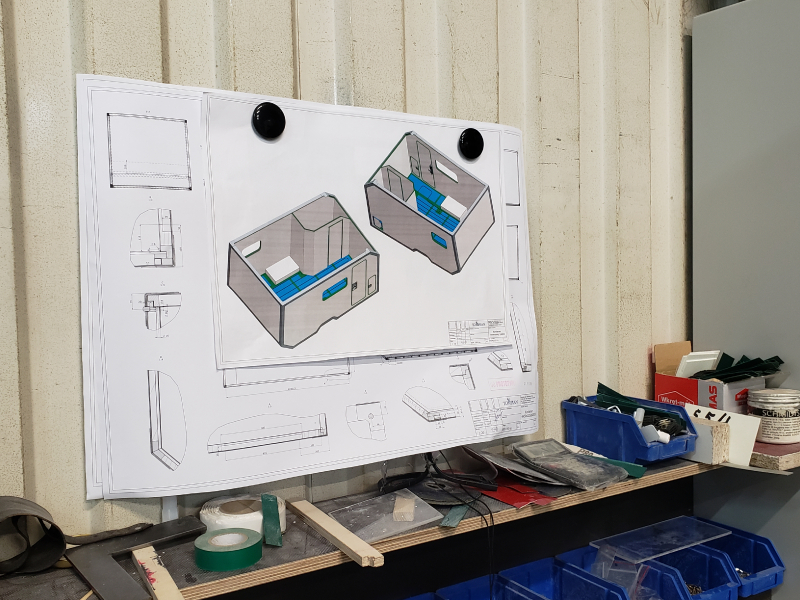

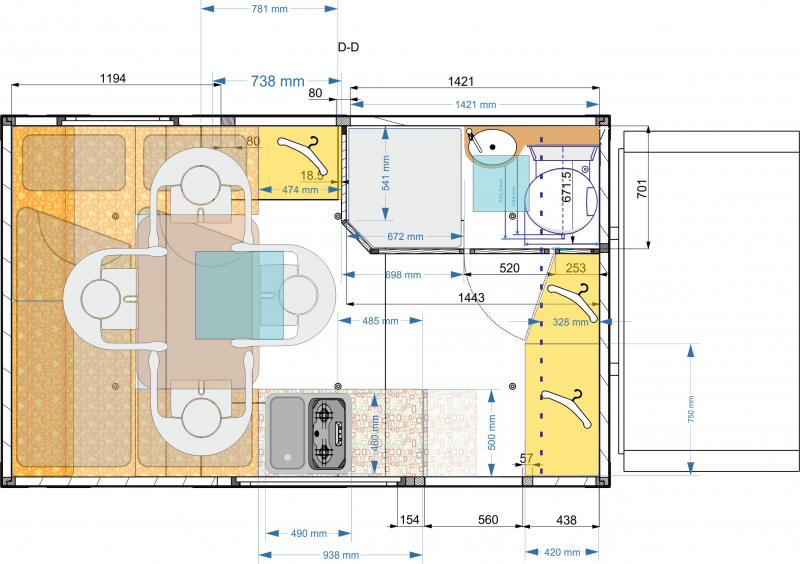

Grundriss

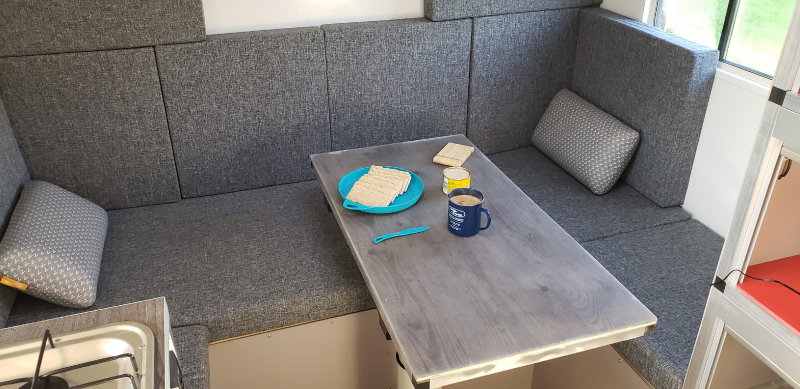

Möbelbau

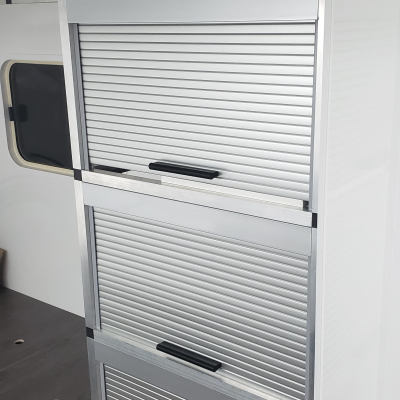

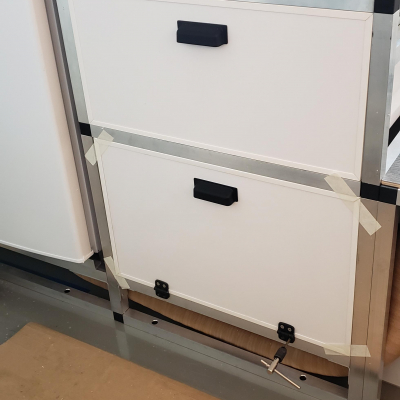

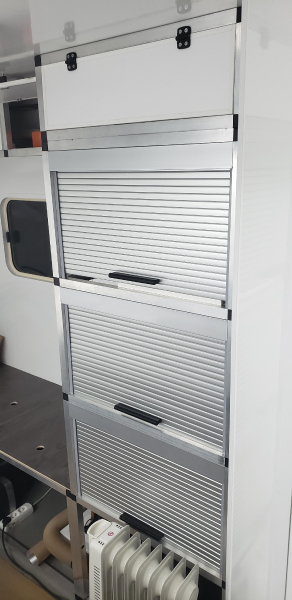

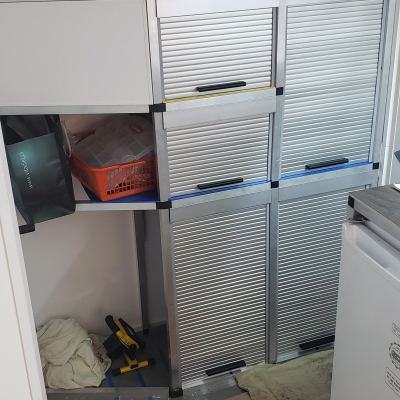

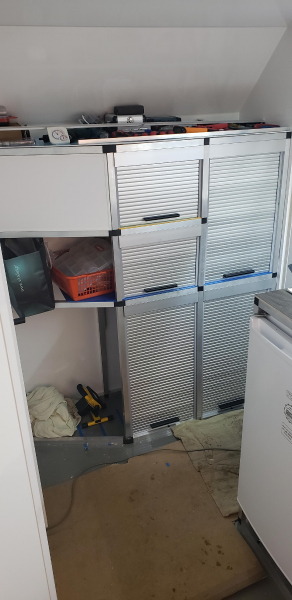

Material des Möbelbaus AL profile construction with light PCV
Sonstiges
in

Kocher

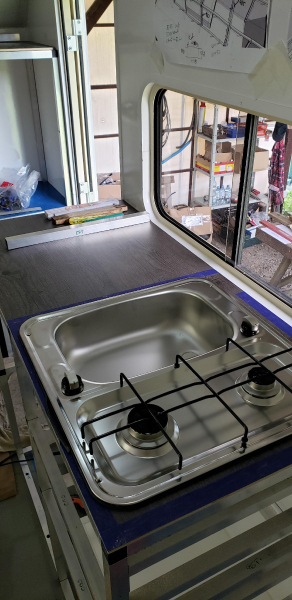

Kocher Dometic HS2460L

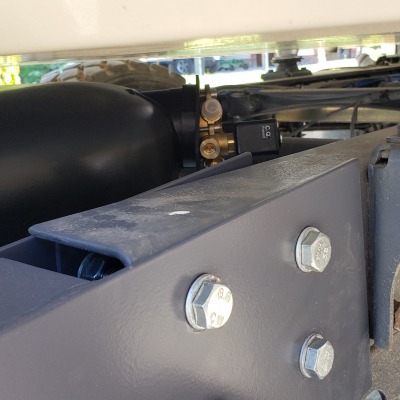

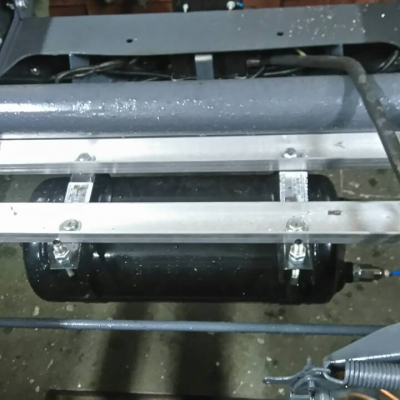

Gasinstallation 24 Litres Motorhome Underslung Gas Tank

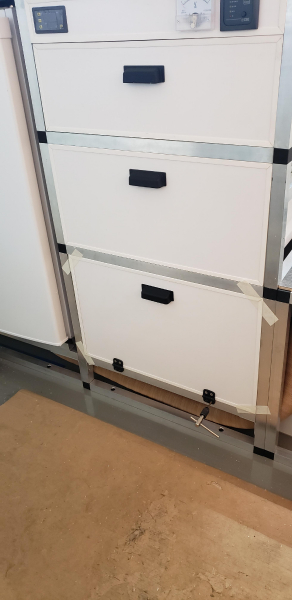

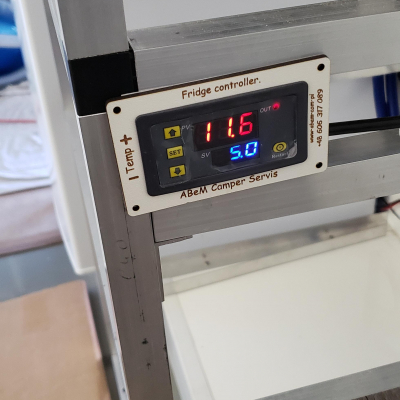

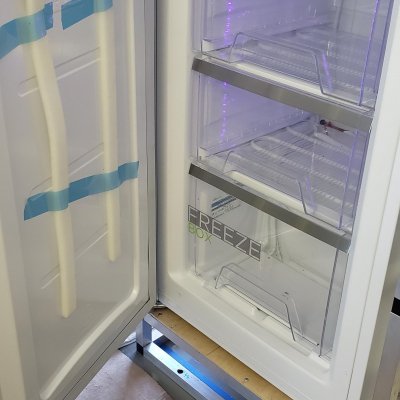

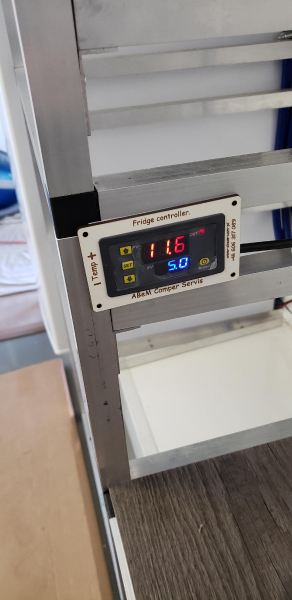

Kühlschrank, Kühlbox

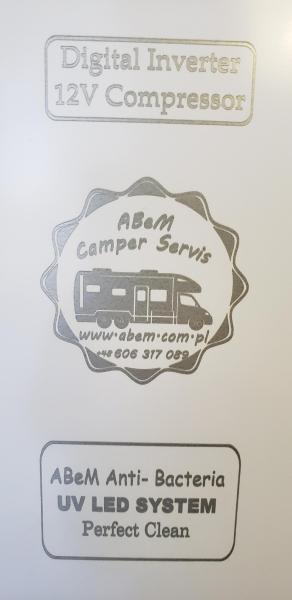

Hersteller und Typ des Kühlschrank ABeM Camper Servis Poland
Sonstiges
All our refrigerators have a system:
ABeM Anti Bacteria UV Led System Perfect Clean. for long freshness of your eg: strawberries in the fridge :)
Perfect replacement for old inefficient fridge on ammonia ( so-called LPG / 120W heater 12V / 120W heater / 220V )
It comes in 2 versions as a 3-drawer fridge, or as a fridge-freezer, with 1 x freezer drawer, 1 x 0stC drawer, 1x +5stC drawer.
The refrigerator is very energy efficient. It does not draw electricity for a very long time.... as is customary with ordinary store refrigerators.
The fridge takes only 18 minutes from switching on to 0stC.
Current consumption is about 2.8 to 4 amps for 12V DC. The power consumed on average0 is 36-41W, even when the fridge starts.
For a temperature setting of 0 degrees Celsius the operation is ONLY ! 5 to 10 minutes per hour, which is very important for the energy balance in the RV, gives a daily energy requirement of ONLY 3-5 Ah.

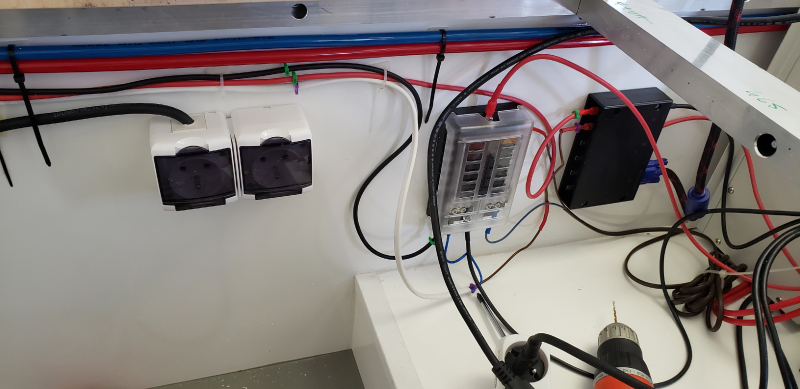

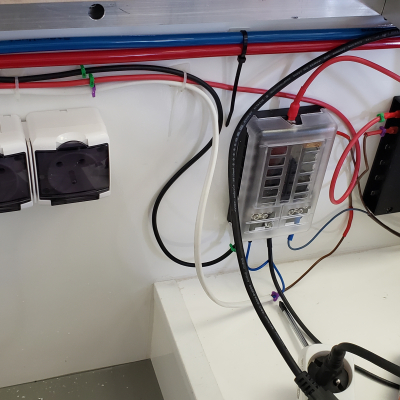

Stromkonzept

Stromspannung im Chassis 24V
Stromspannung im Aufbau 12V
110V / 230V im Aufbau? Ja

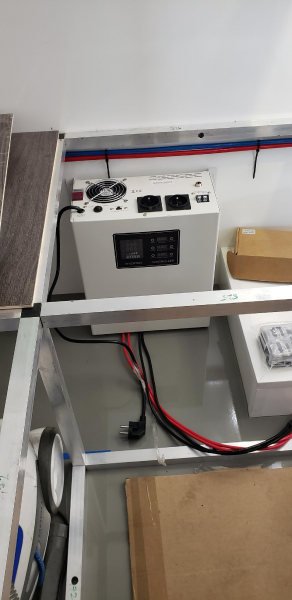

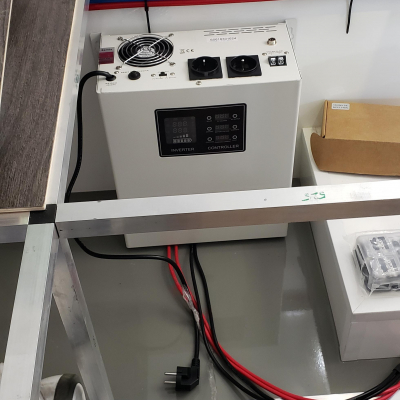

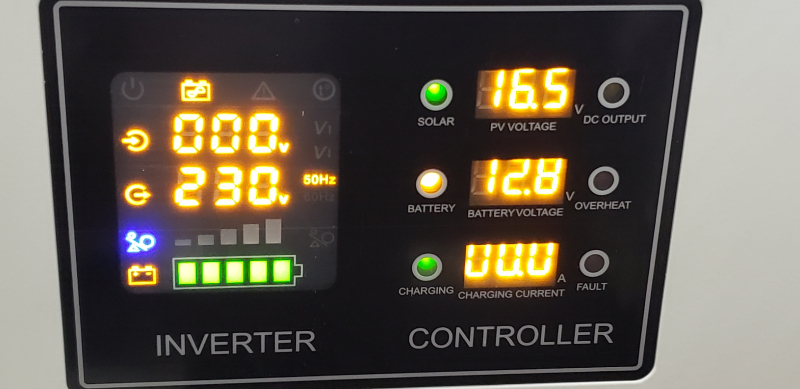

Wechselrichter 230V, 1500W max

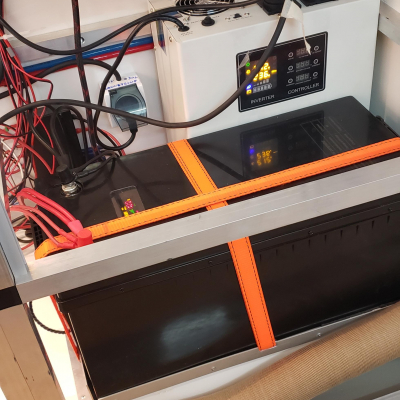

Batteriekapazität im Aufbau

Batteriekapazität im Aufbau 200 ah
Batterietyp LiFePo4
Batterieladegerät für Aufbaubatterien Energoblock by ABeM Camper Servis
Batterieüberwachung Energoblock by ABeM Camper Servis

Stromgewinnung

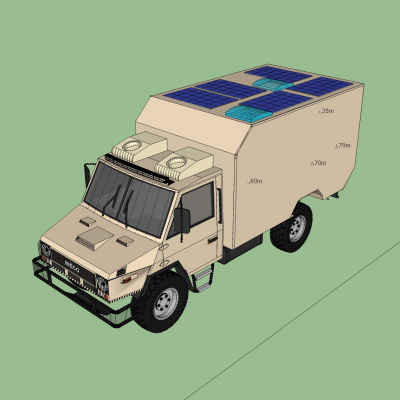

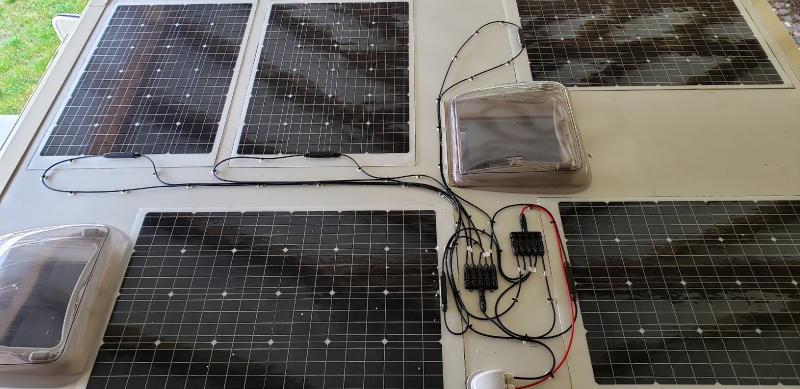

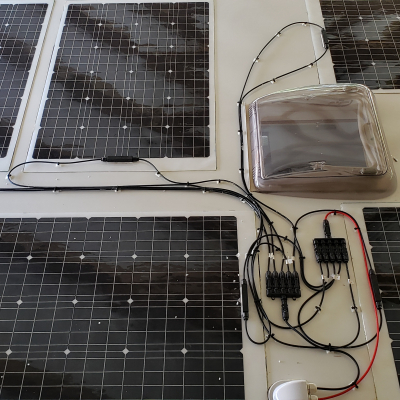

Solarkapazität 5 x 120 W Model:SSTH-HX-M120
Solarregler Energoblock by ABeM Camper Servis
Brennstoffzelle Nein

Heizung

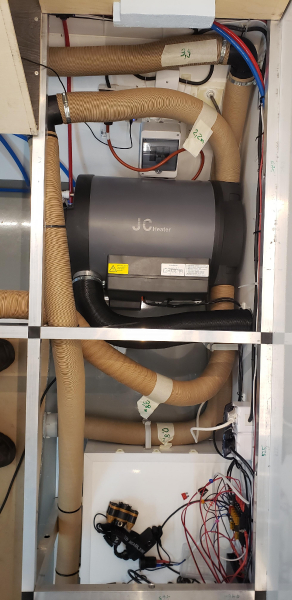

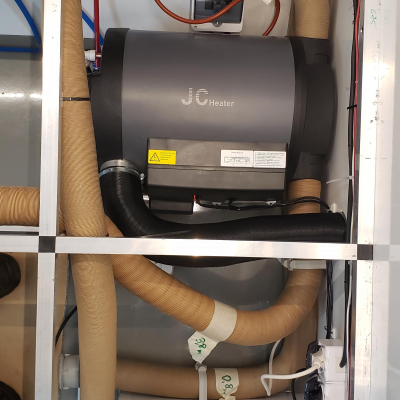

Hersteller und Typ der Heizung JC Heater Air and Water combi gaz and 230V like Truma
Warmwasseraufbereitung JC Heater for water heating 10 dm3
Fahrerhausheizung JC Heater Air working with gas or 230V
Sonstiges

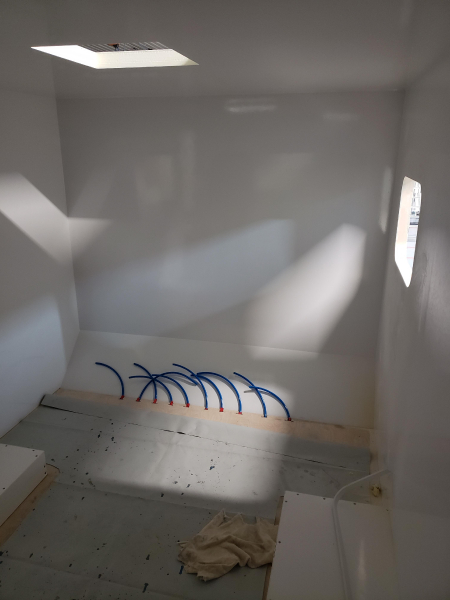

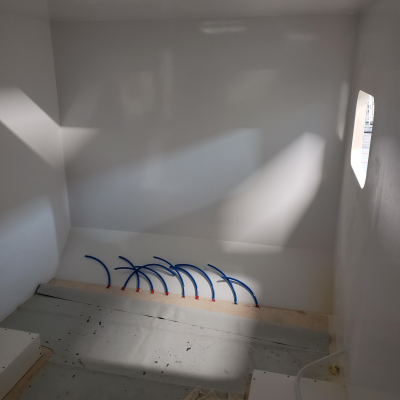

Floor heating possible not connected

Gasanlage

Erläuterung Gasanlage

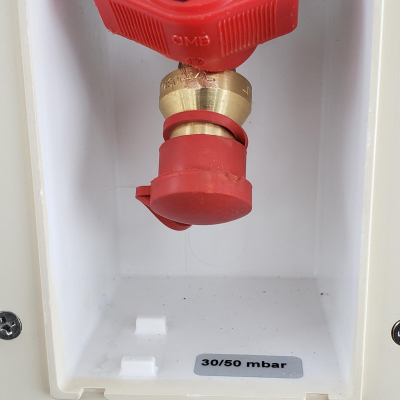

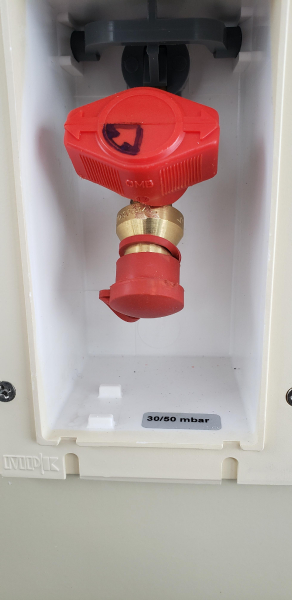

24 Litres Motorhome Underslung Gas Tank for stove, JC Heater for air and water heating, and outside outlet

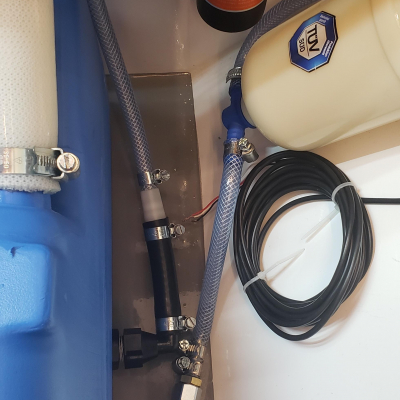

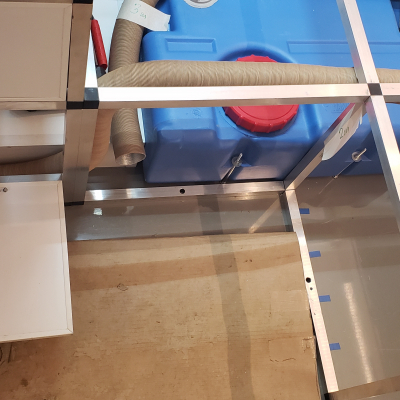

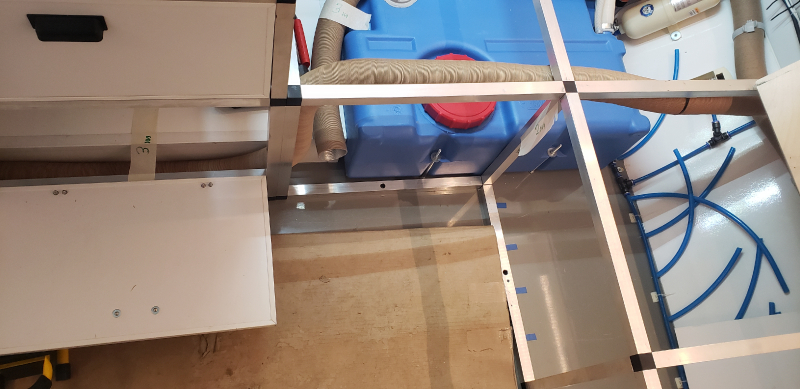

Wassersystem

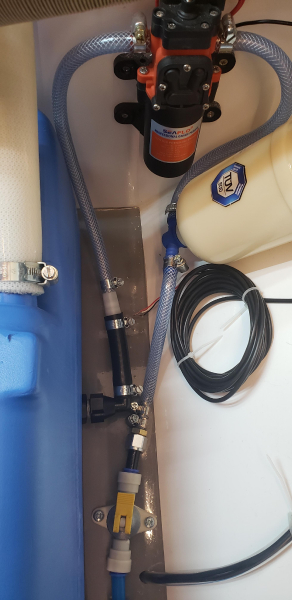

Wasserführung Fiamma 8 1,5 BAR 7L
Volumen der Frischwassertanks 70 dm3
Volumen der Abwassertanks 90 dm3

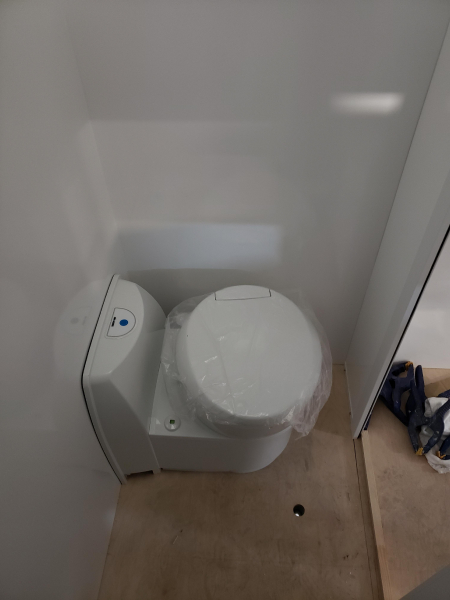

Toilette

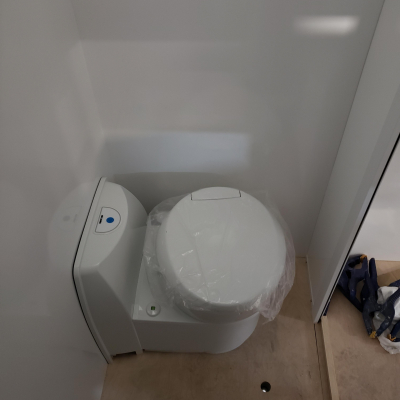

Hersteller und Art der Toilette Thetford C220
Kapazität Fäkalientank 17 dm3

Anbauten

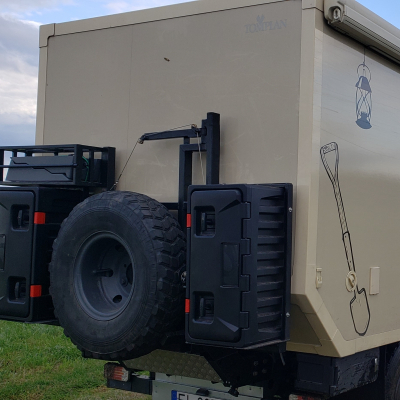

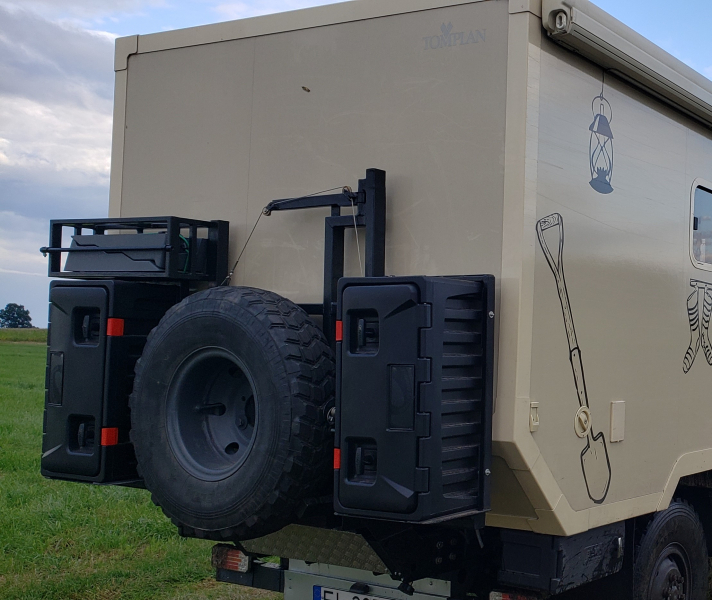

Heckträger yes

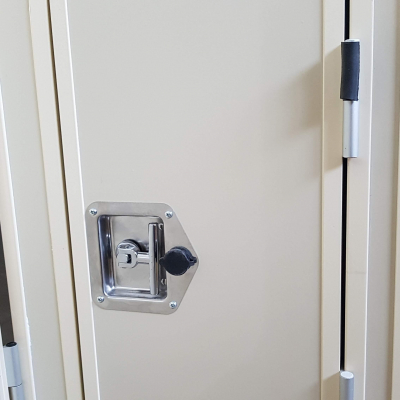

Stauboxen yes
Außenkochstelle yes

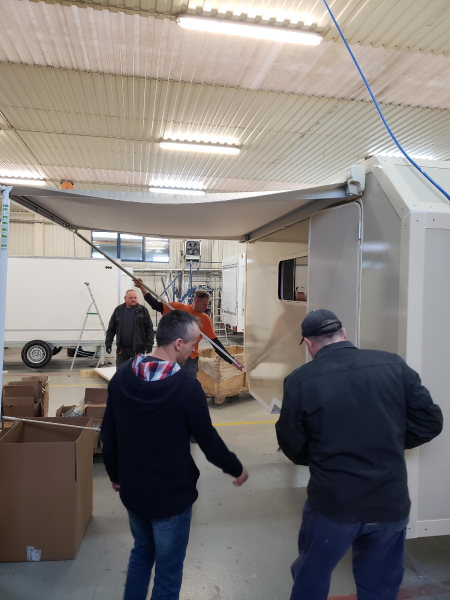

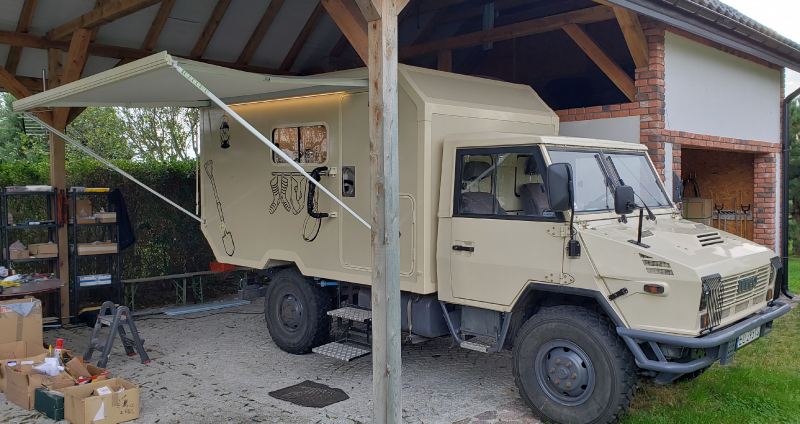

Markise yes
Sonstiges
Floor heating, electric aircondition for chassis and cabin not connected yet
