Owyn overland (#995)

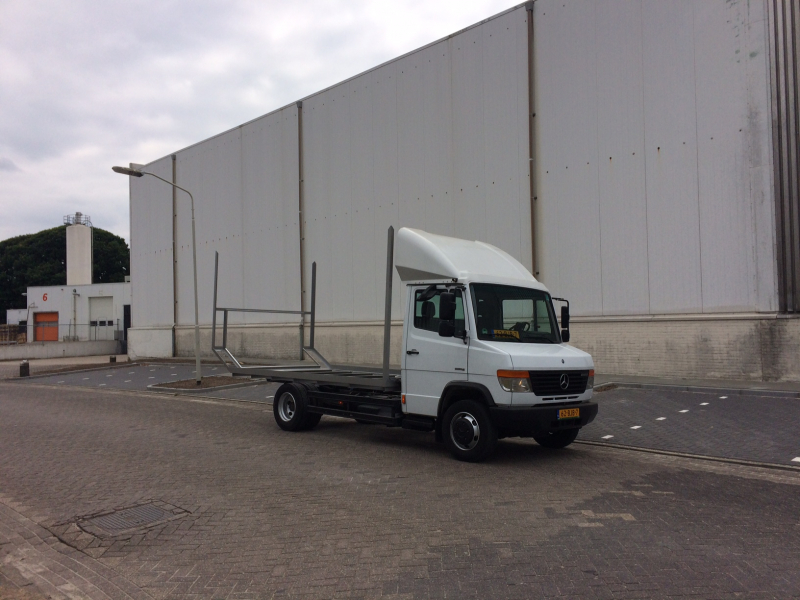

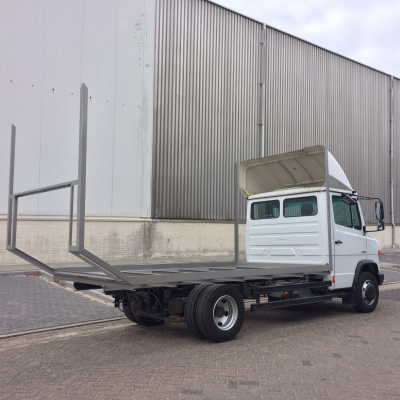

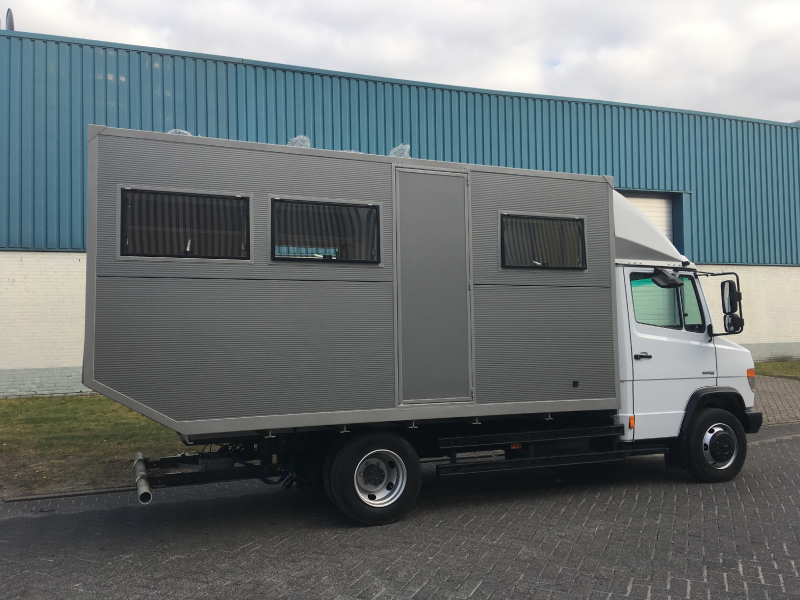

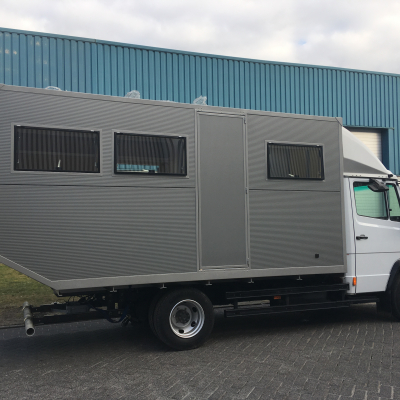

OWYN "Only What You Need" In my opinion the extra cost and weight of a 4x4 version of an on-road truck (if available) is not worthwhile. On my travel to remote places almost all local truck and busses are rear 2 wd. In my case i will ad Rear diff lock, slightly bigger wheels and a departure angle off ca. 30°. On the floor plan the main idea is to be able to use all functions such as sleeping, sitting, bathroom use and cooking for two people without making room for each other. The choice for a Mercedes Vario is a compromis: On weight (7,5 T) , size ( with use off overhang it will fit still on normal parking spot) Height (ca. 3.25 m) Modern engine (acces to city with environmental zone)
Allgemeine Angaben

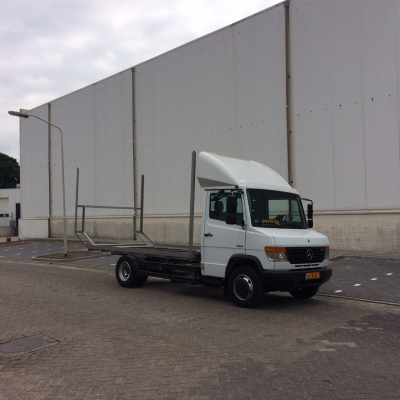

Fahrzeughersteller und Typ | Mercedes Vario 818D |
---|---|
Name des Halters | Owyn |
Land der Zulassung | Netherlands |
Baujahr | 2008 |
Fahrzeug steht zum Verkauf? | Nein |
Motor

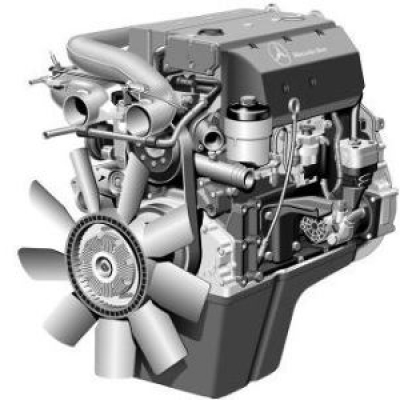

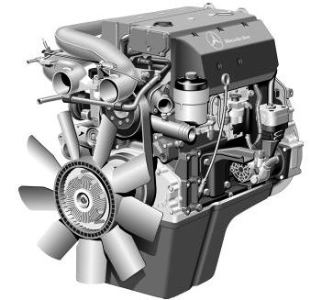

Motortyp | OM 904 euro bleutec4 |
---|---|
Hubraum | 4.249 cc |
Zylinderzahl | 4 |
Motorleistung in PS | 177 |
Drehmoment | 675 |
Fahrgestell
Radformel (4x2, 4x4, 6x6, 8x8) | 2x4 or 4X6 if you count tyre's ;)) |
---|---|
Radstand | 3.700 |
Anzahl der zugelassenen Sitze | 2 |
Reifengröße | not yet fitted (9.5R17.5) |
Felgen | R17,5 |
Tankkapazität | 90L + auxiliary tank |
Dieselfilter | Nein |
Sonstiges | |

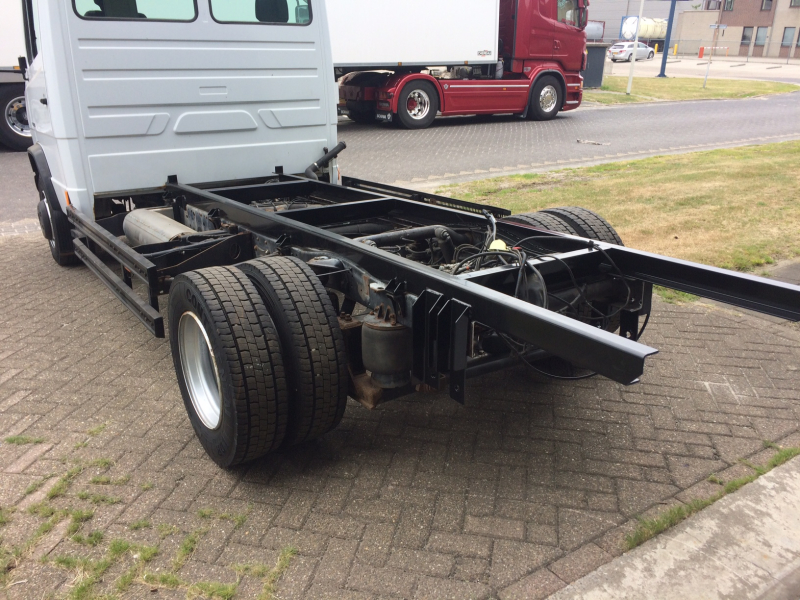

Air suspension on de rear for comfort and easy leveling | |
Allrad zuschaltbar oder permanent | no |
Differenzialsperren | self build rear lock |
Aufbau

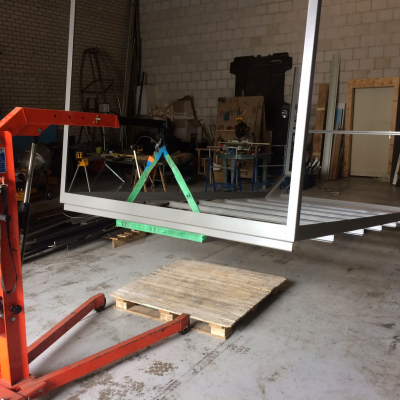

Aufbauhersteller | selfbuild |
---|---|
Kabinenmaße (Innen) | 448X217X210 |

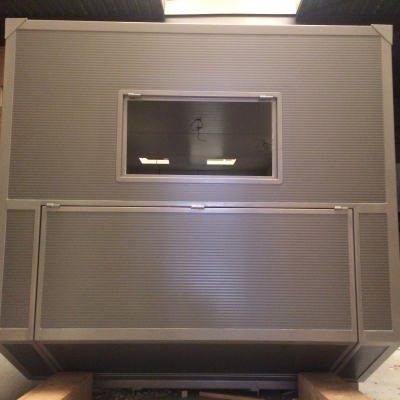

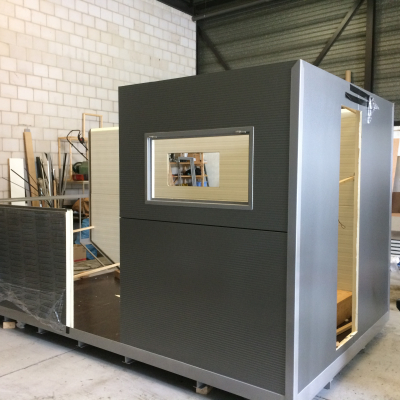

Kabinenmaße Abmessungen (außen) | 460x229x220 |

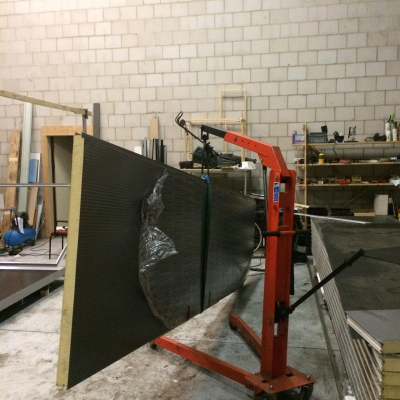

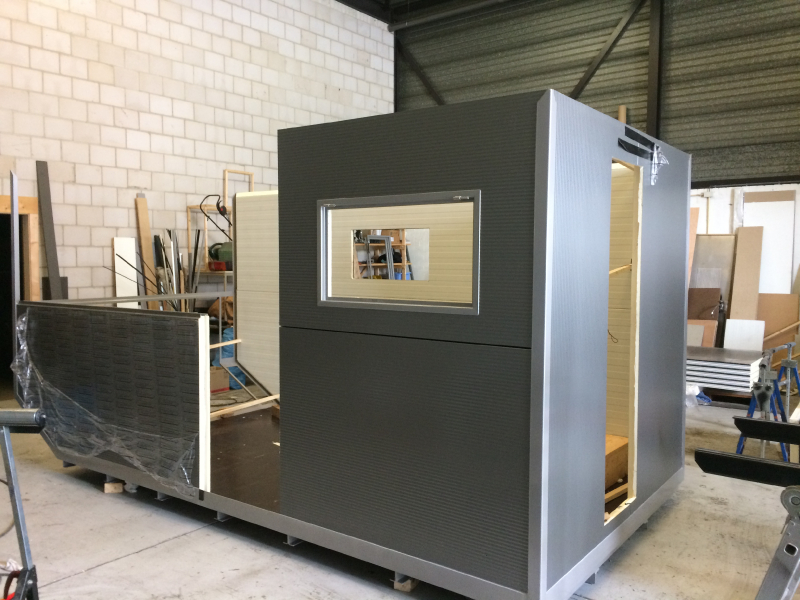

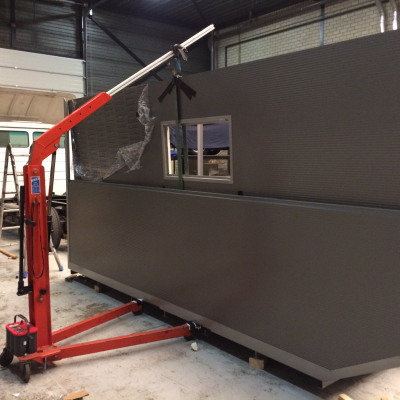

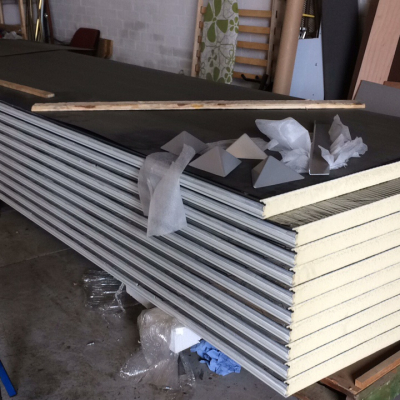

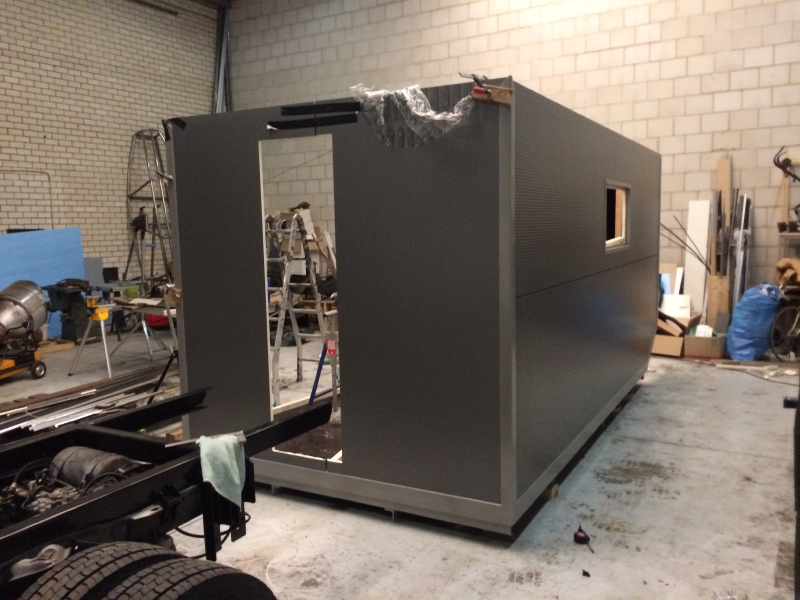

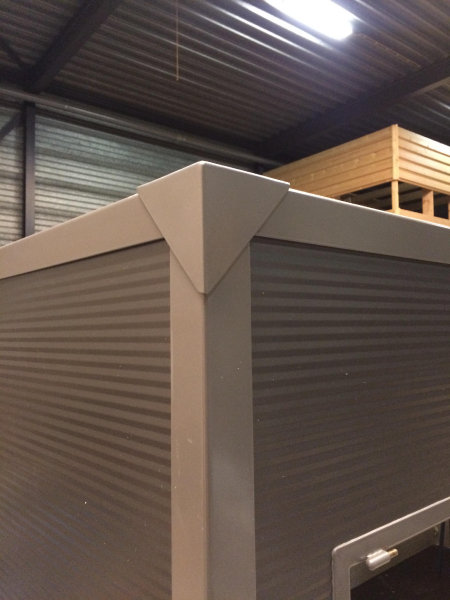

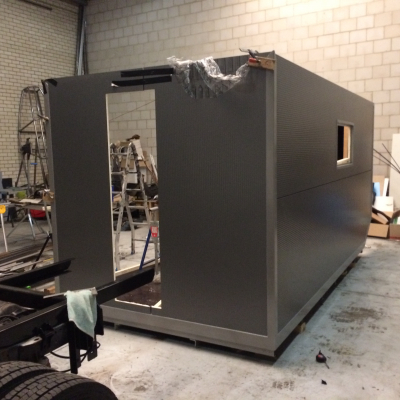

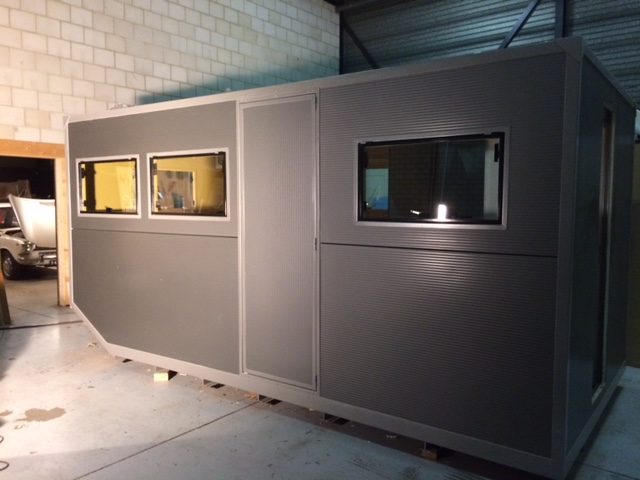

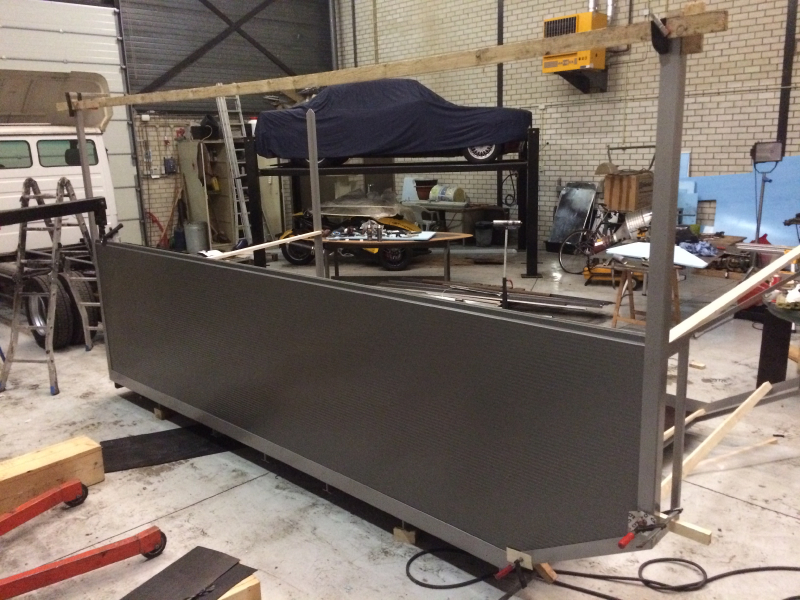

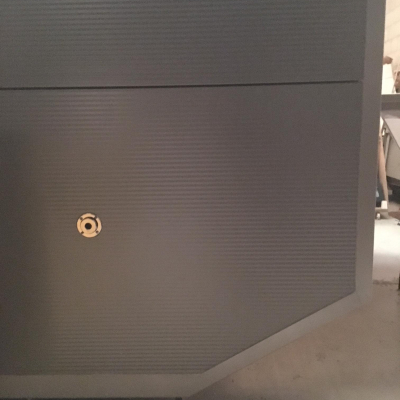

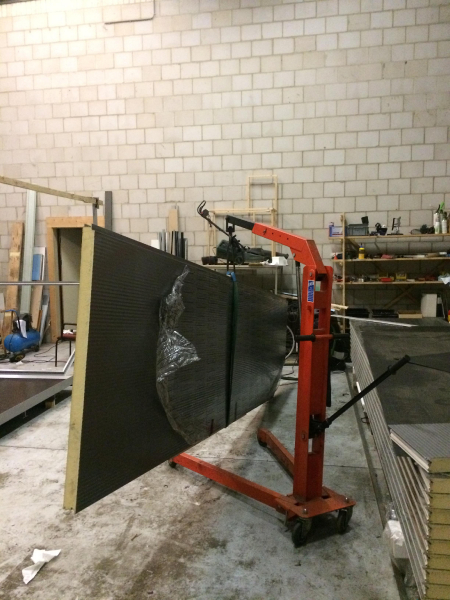

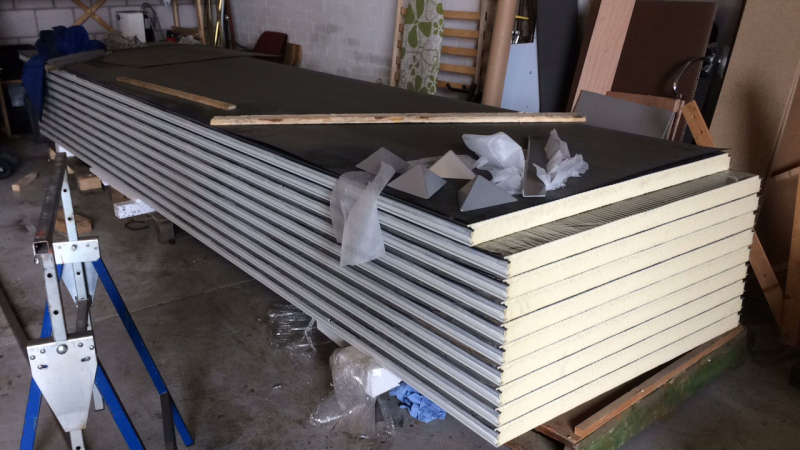

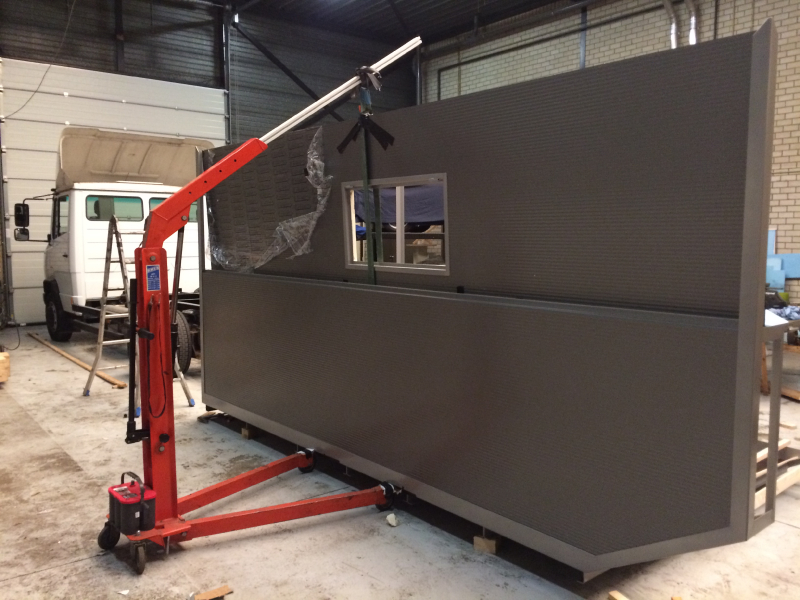

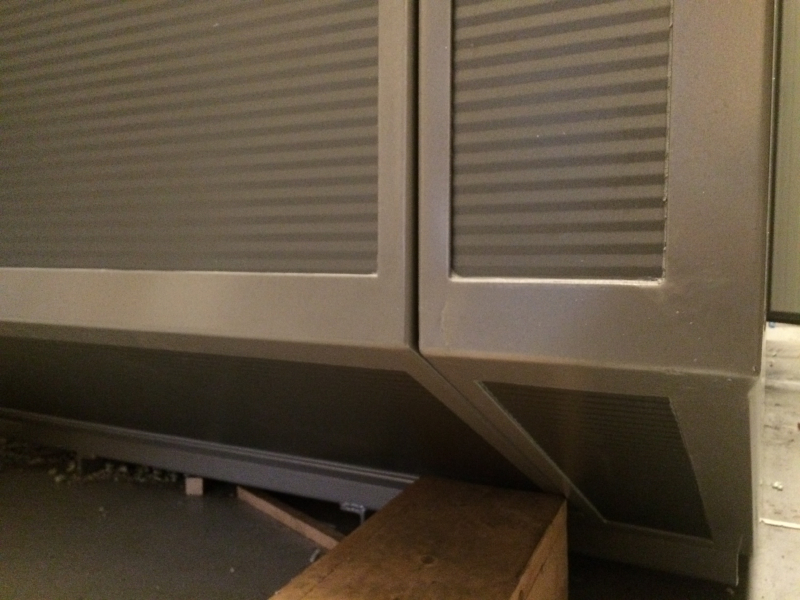

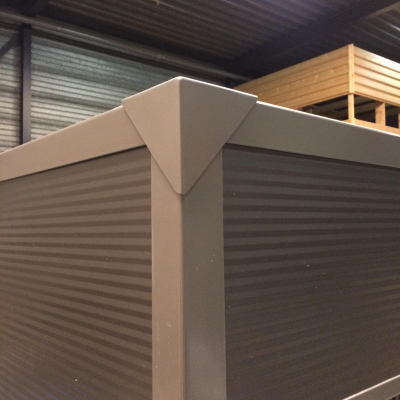

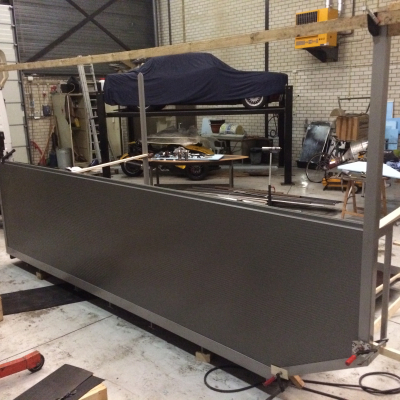

Material der Kabine | sandwichpanel |
Art und Stärke der Dämmung | roof and walls 60 mm, floor 80 mm |
Anzahl der Schlafplätze | 210x140 |

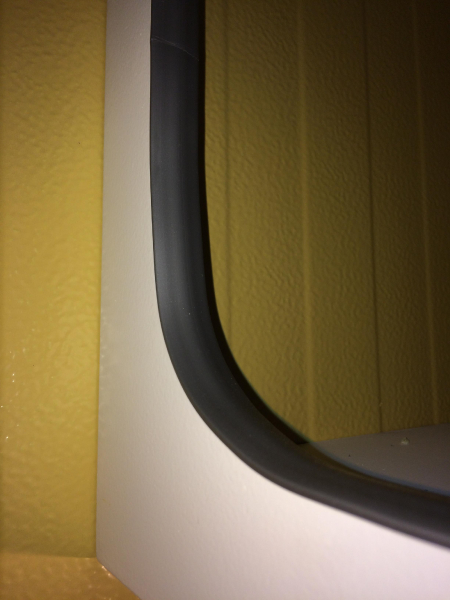

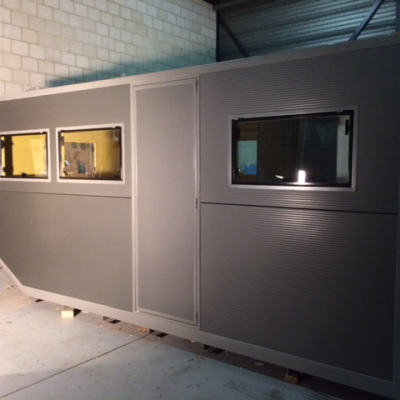

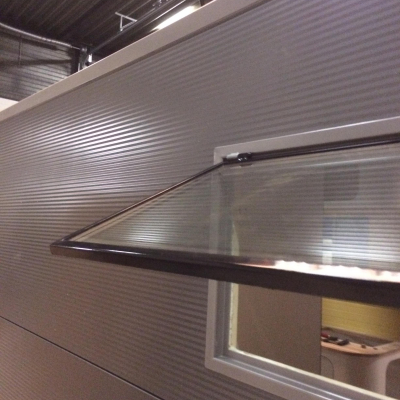

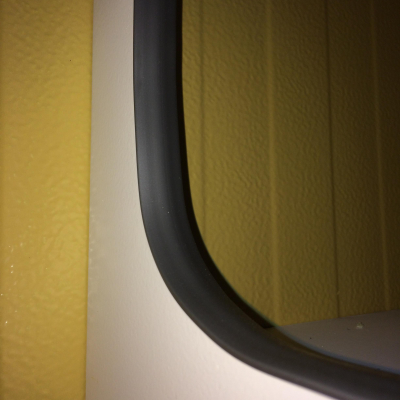

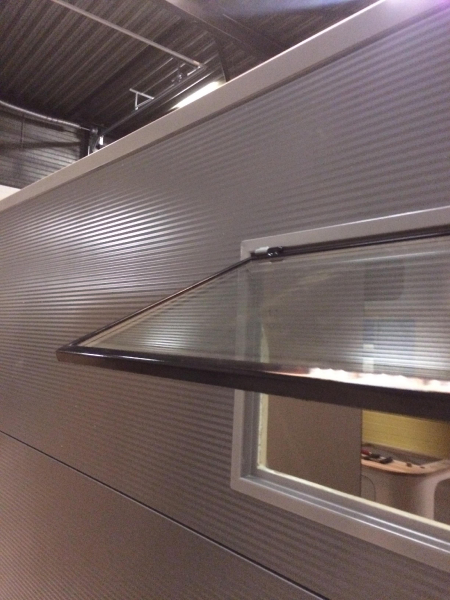

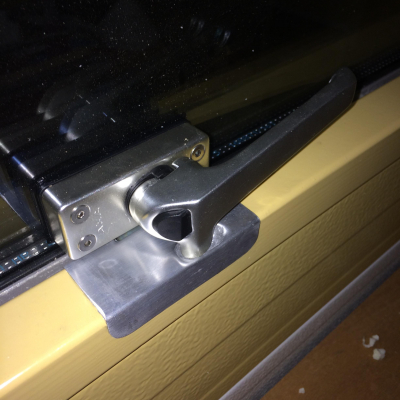

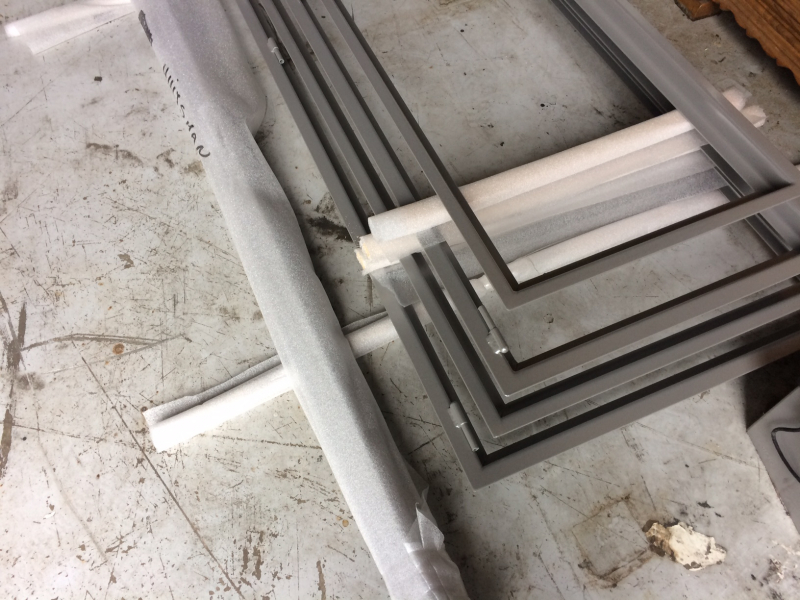

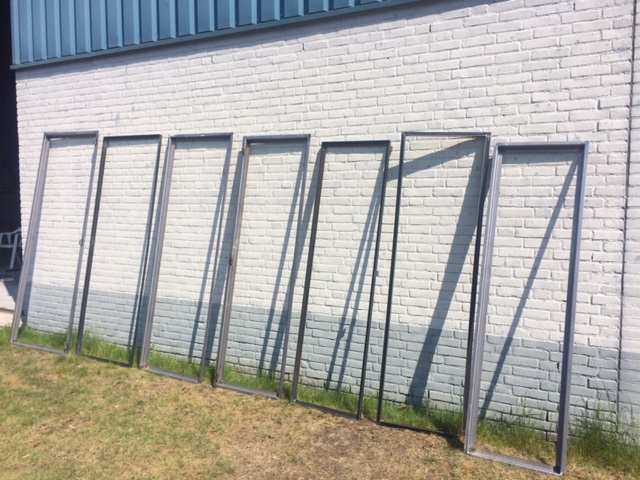

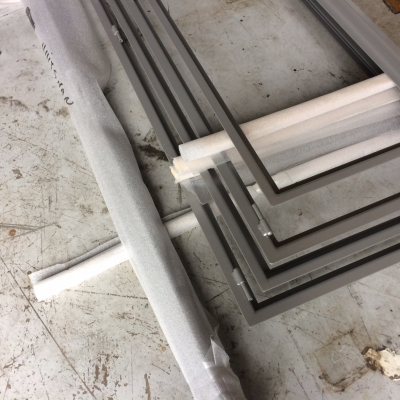

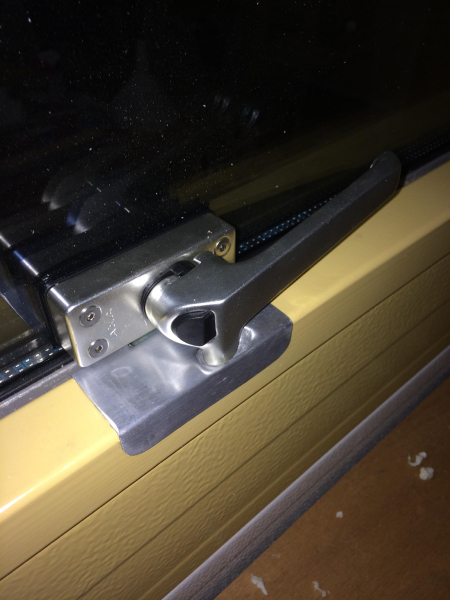

Fenster | 5 real glass double plane windows 500X900 2 roof hatch 40x40 |

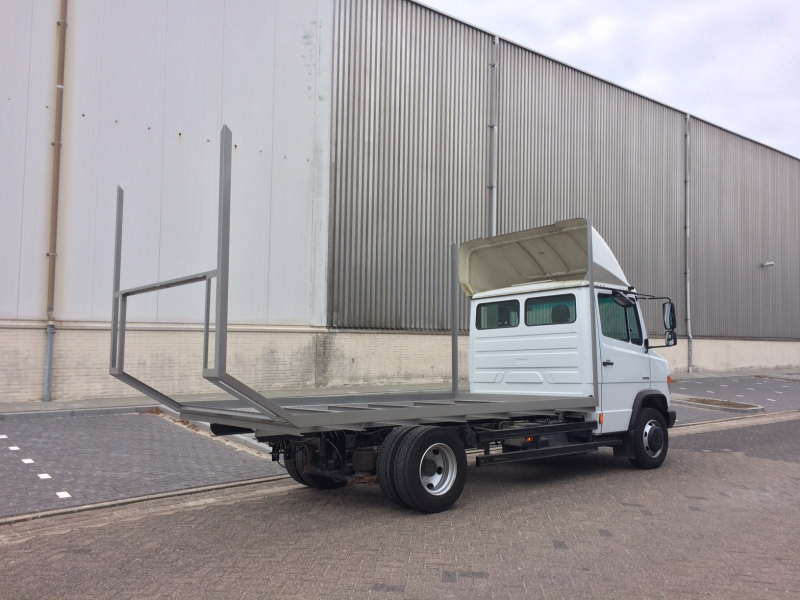

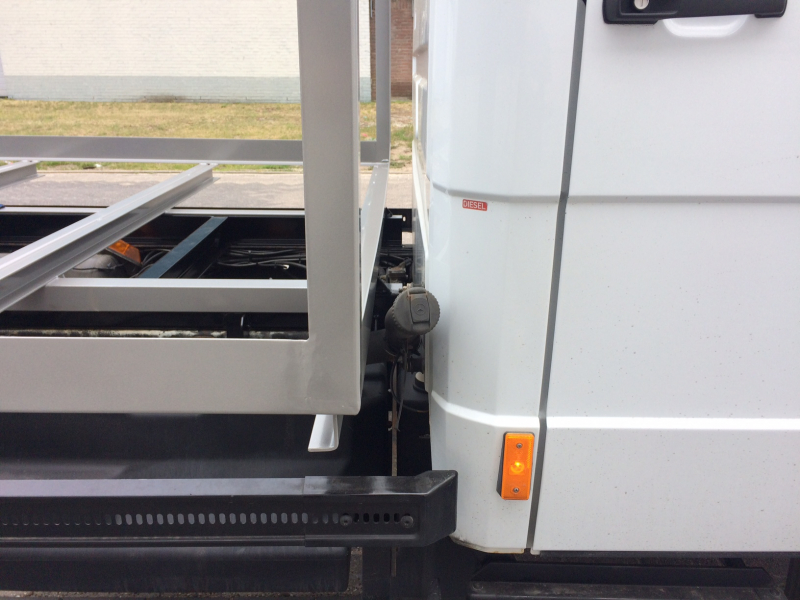

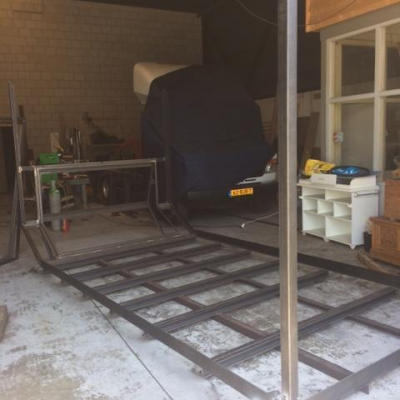

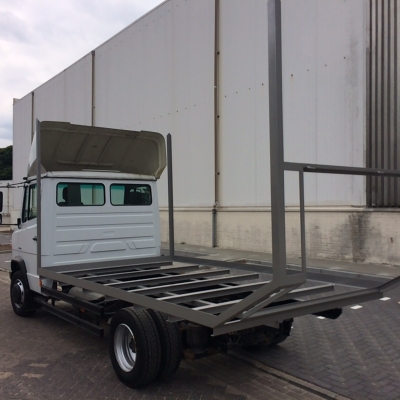

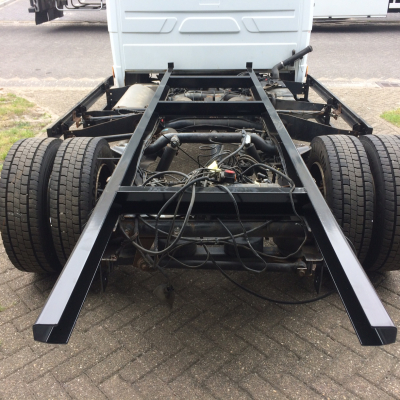

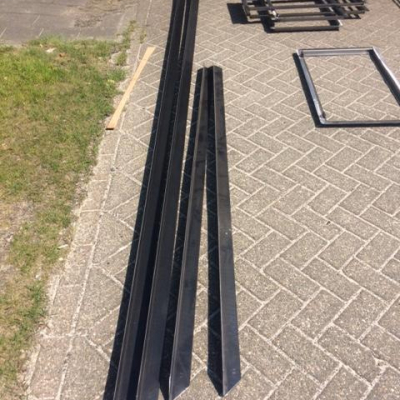

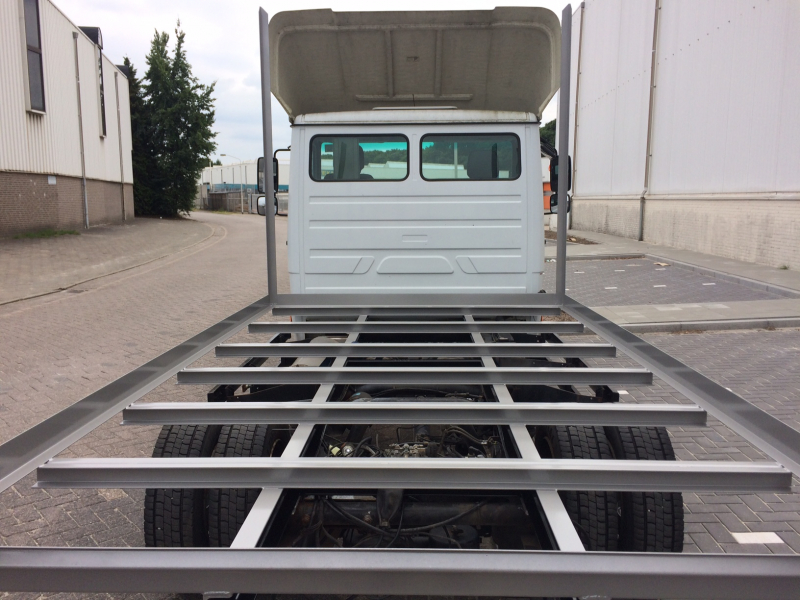

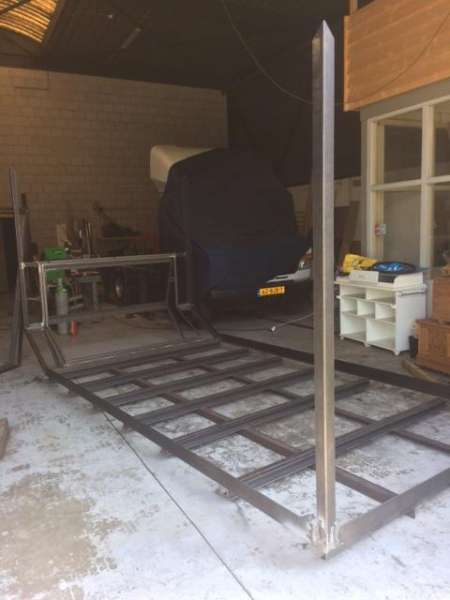

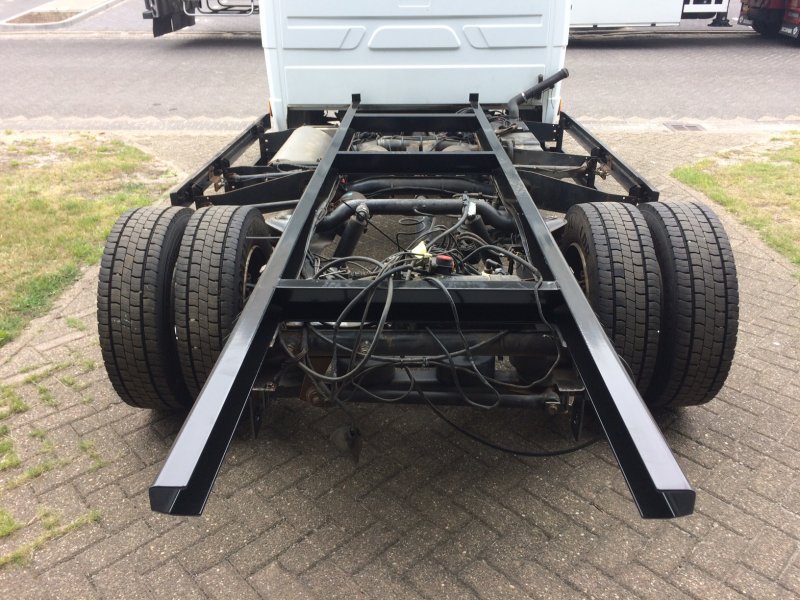

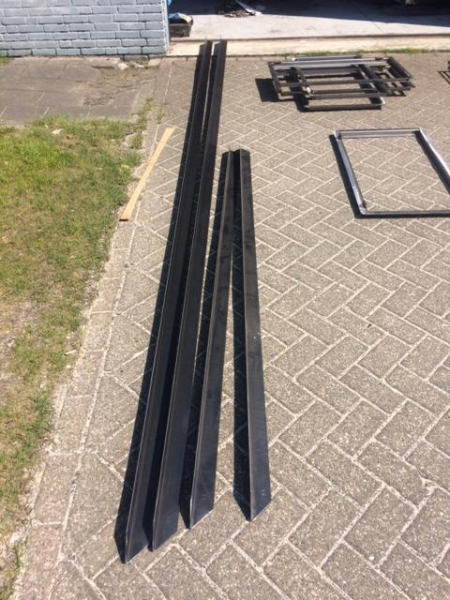

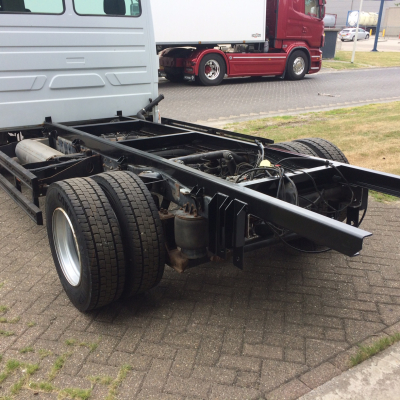

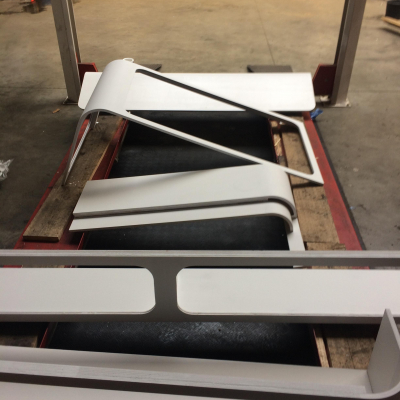

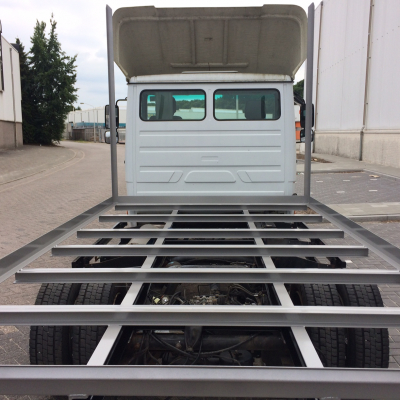

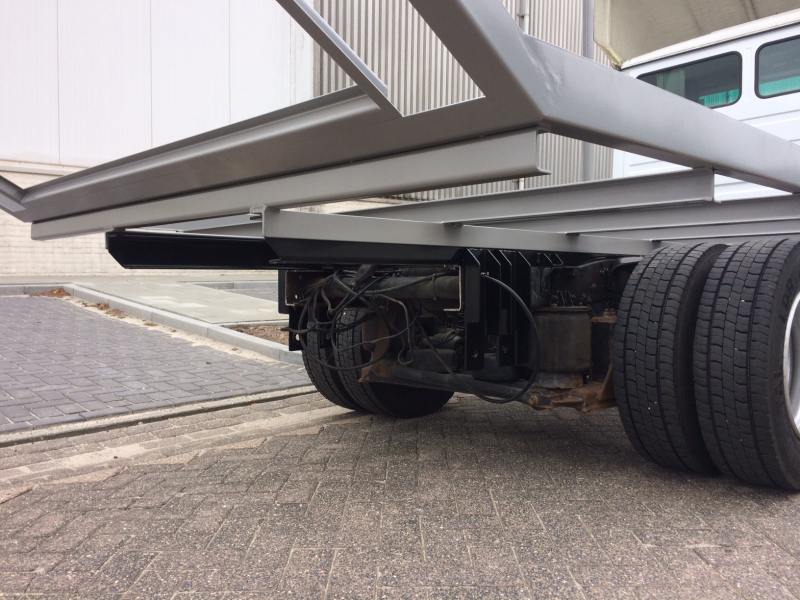

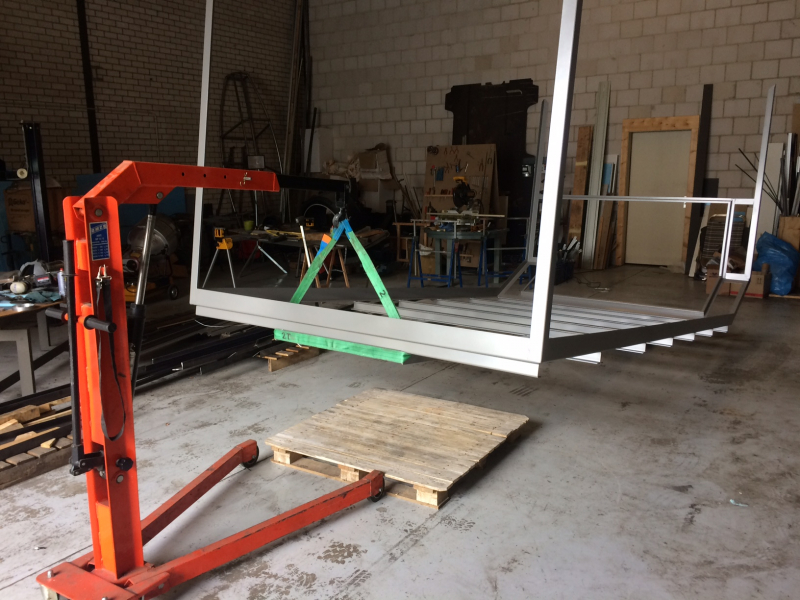

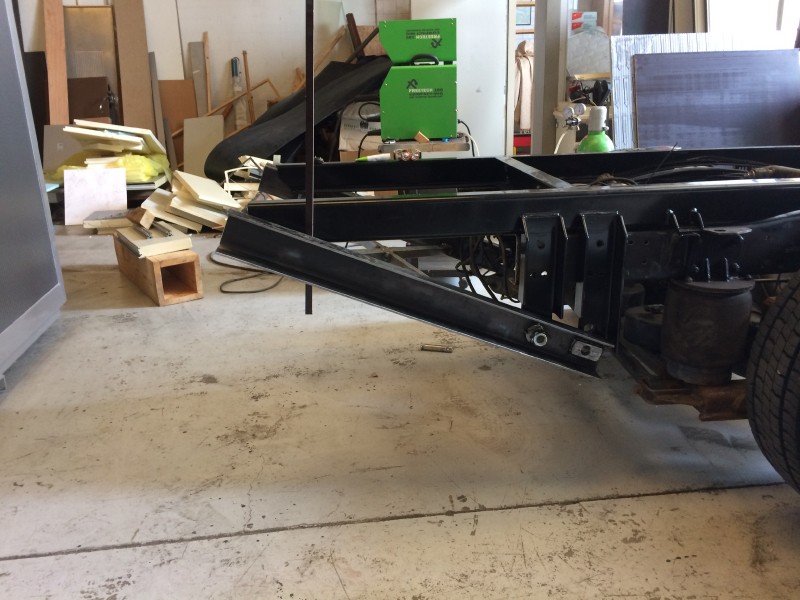

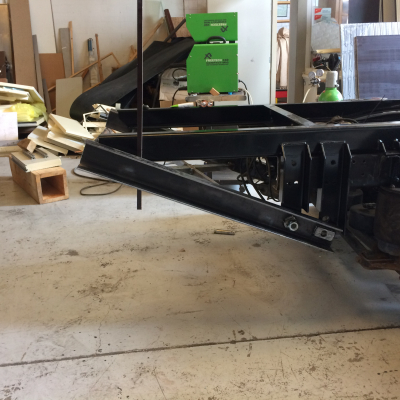

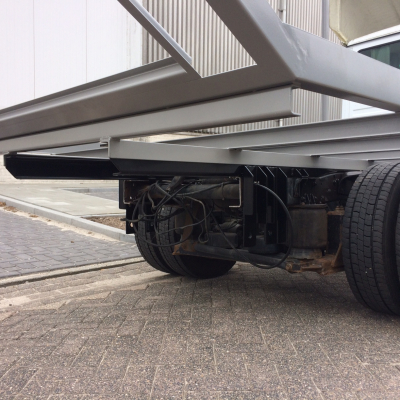

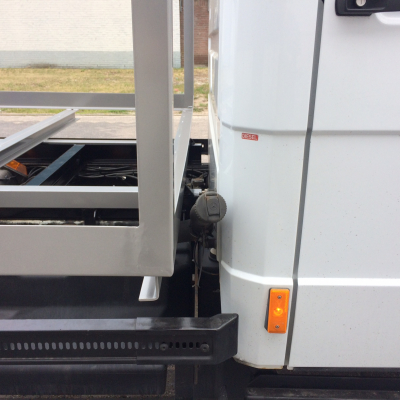

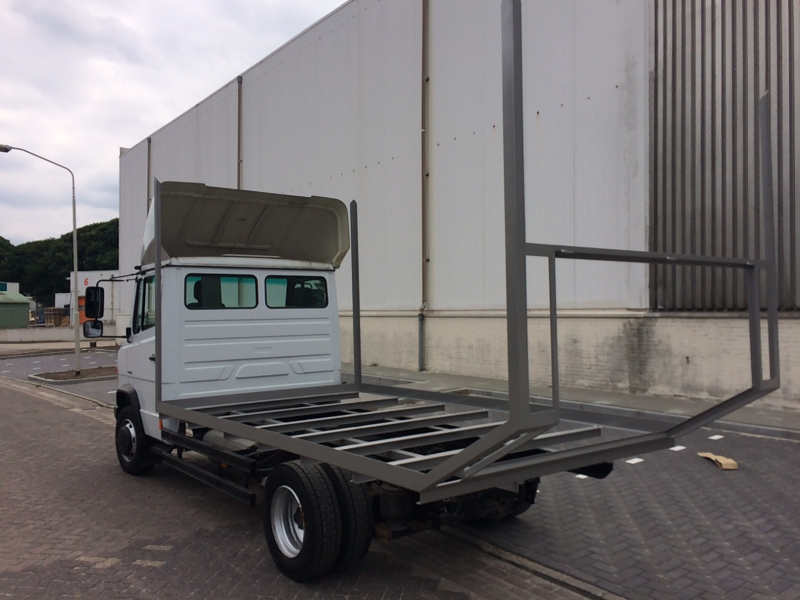

Zwischenrahmen | Yes self build. With build in torsion possibility |
Grundriss
Erläuterung Grundriss | |
---|---|

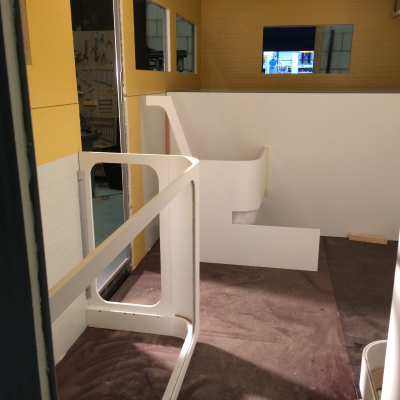

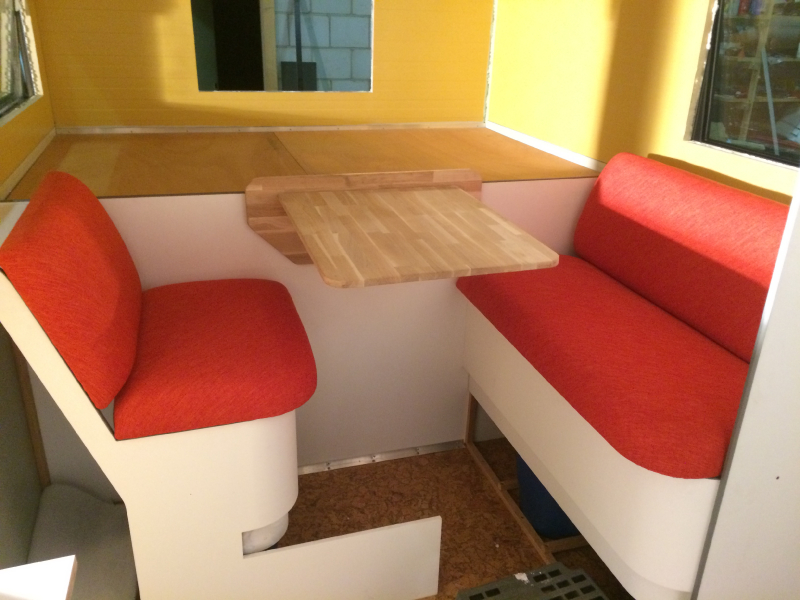

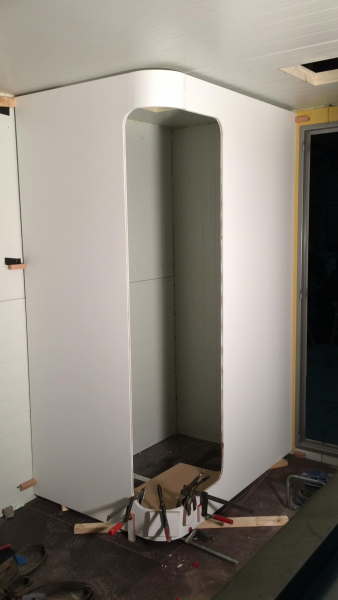

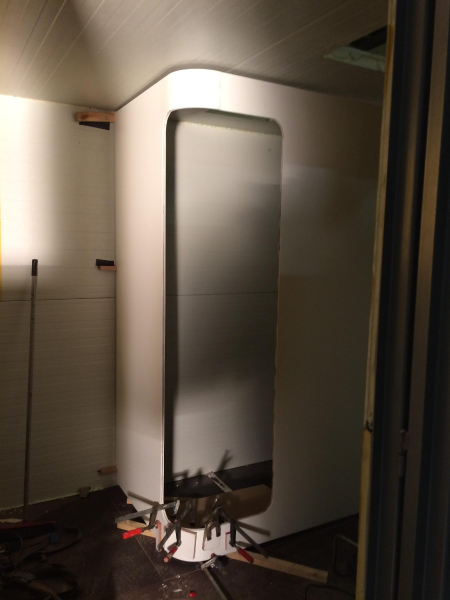

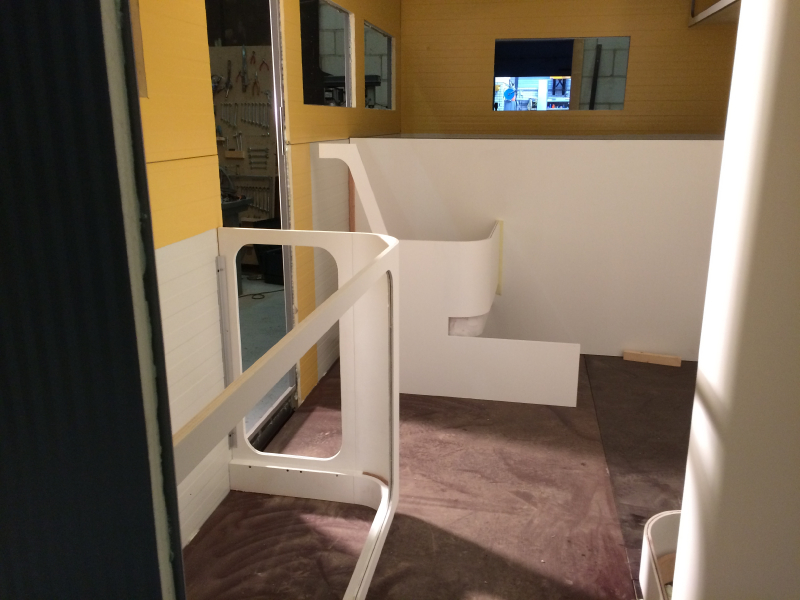

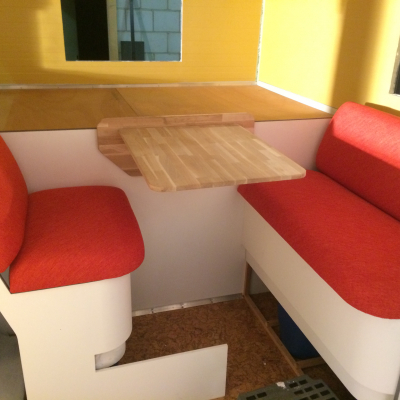

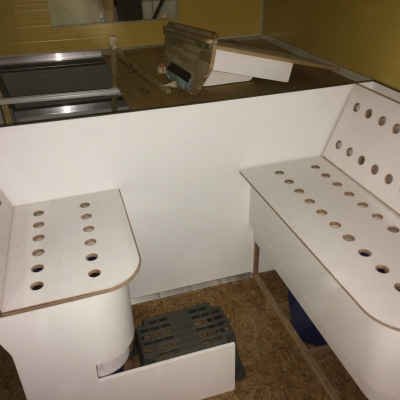

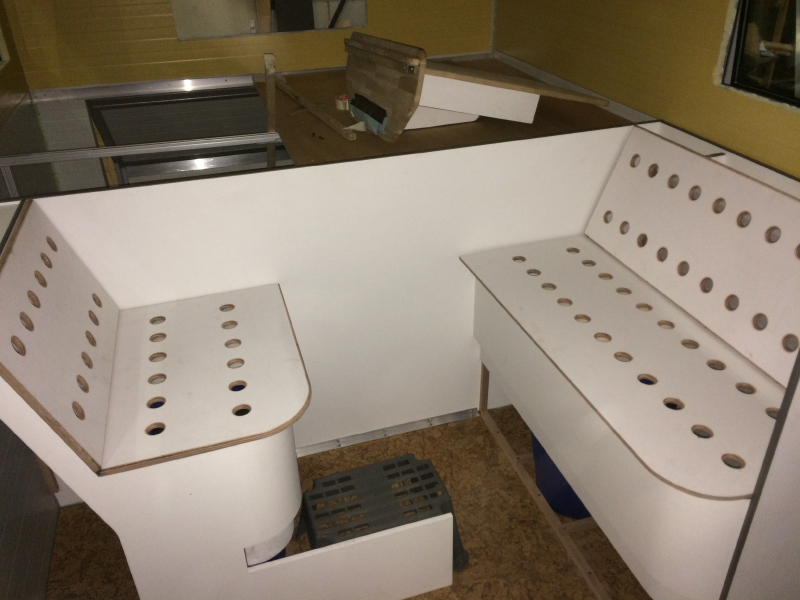

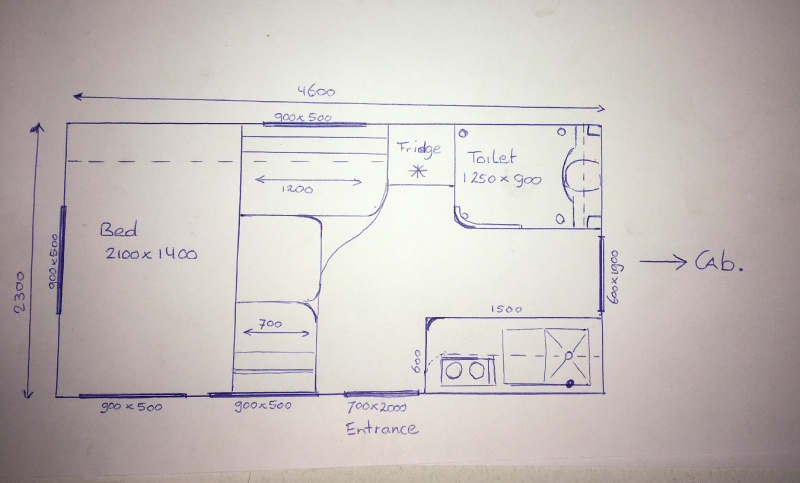

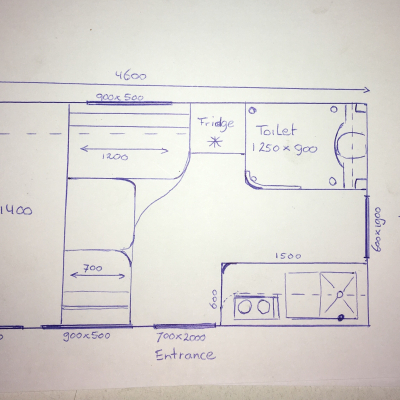

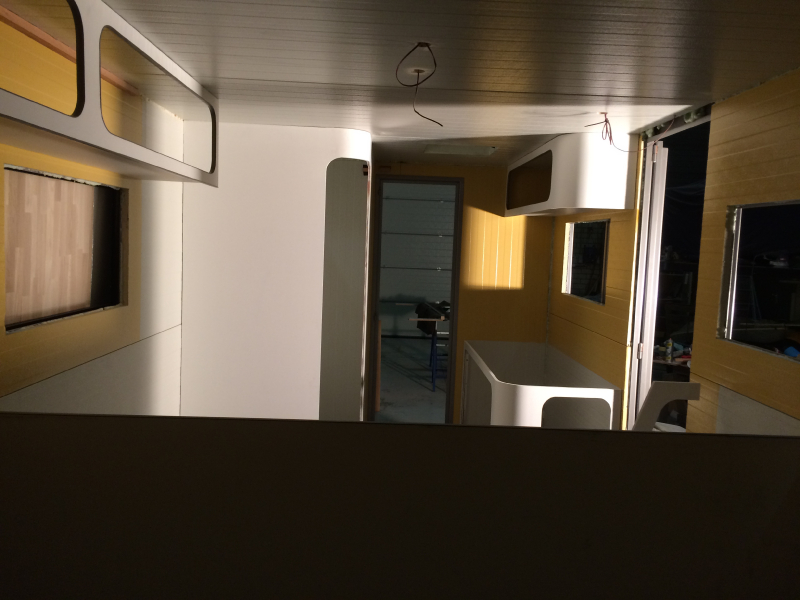

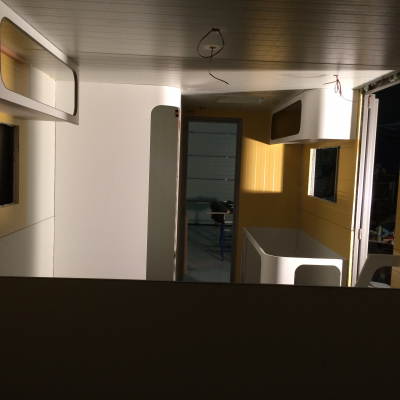

Rear main bed 210x140 with 2,5 M3 storage underneath . Dinette aria with sliding table. in the front left bathroom and on the right kitchen. In the front a door with acces to cab (future) and acces to storage on top of the cab. |
Möbelbau

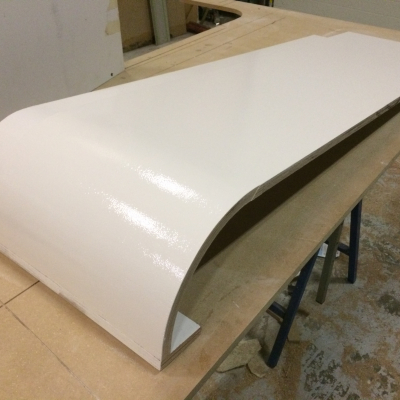

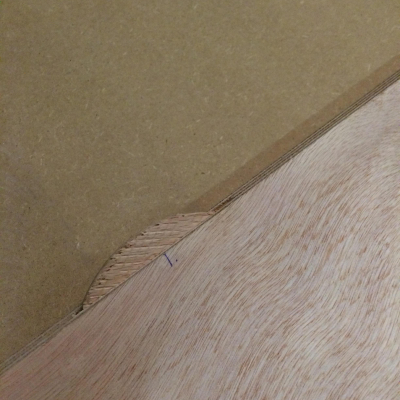

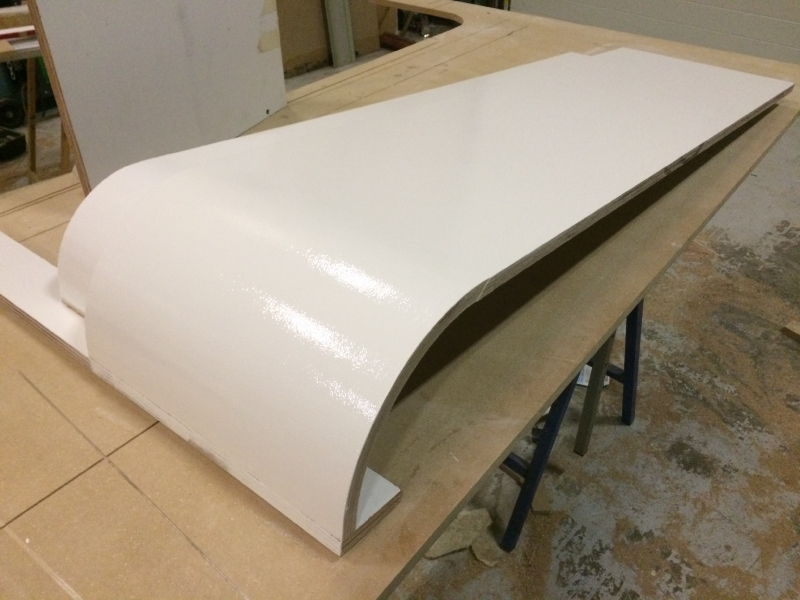

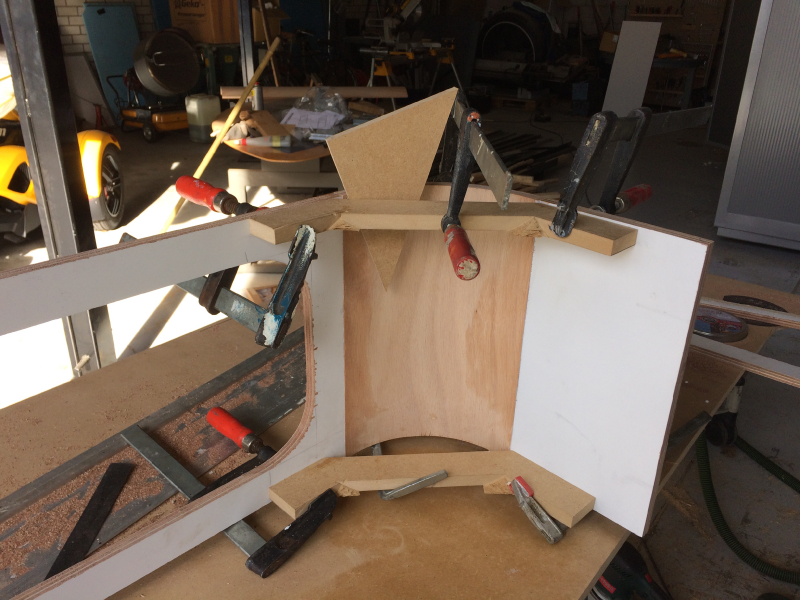

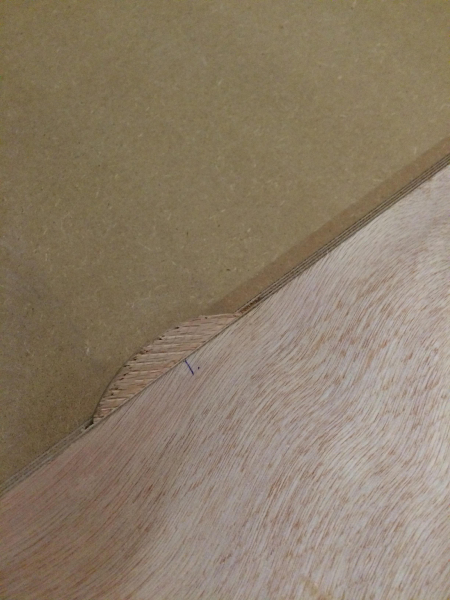

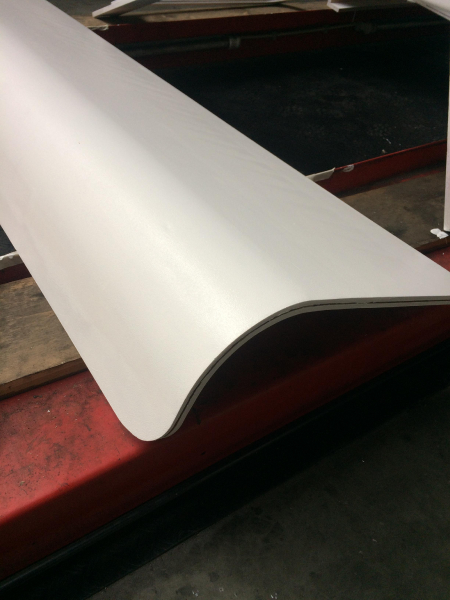

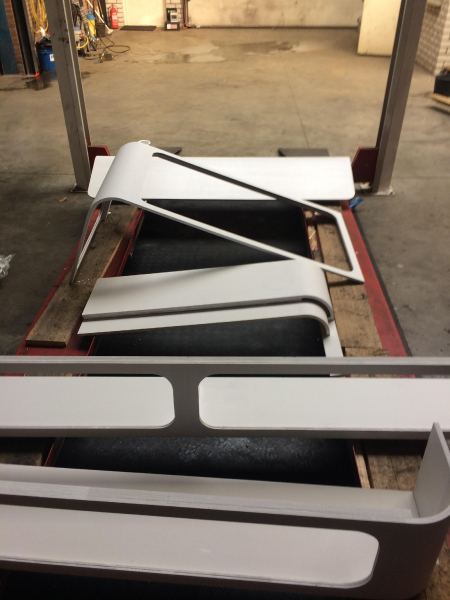

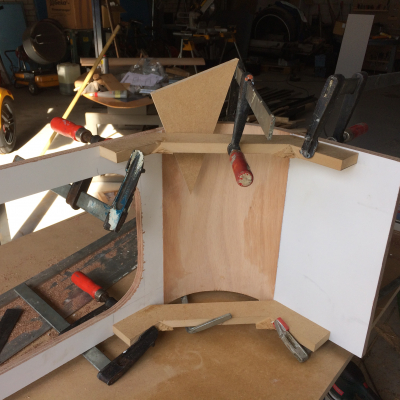

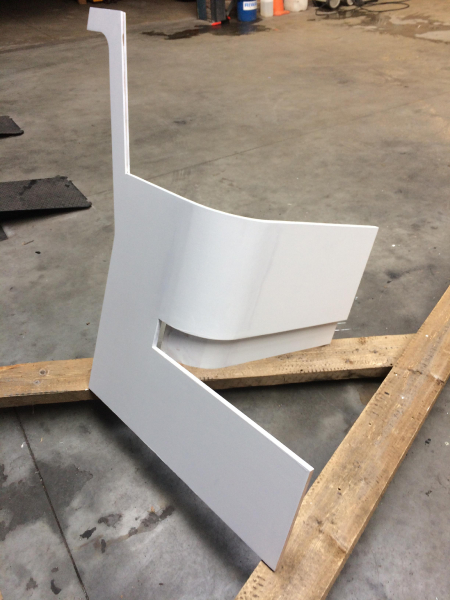

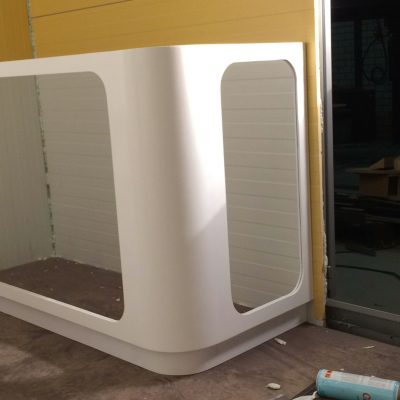

Material des Möbelbaus | 15 mm marine grade plywood |
---|---|
Sonstiges | |

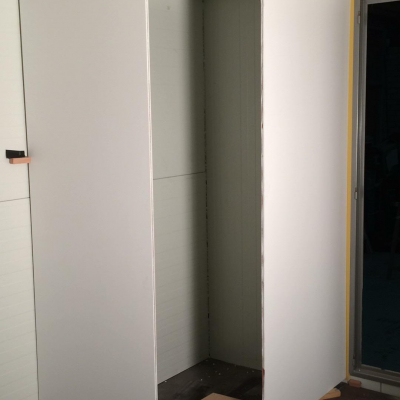

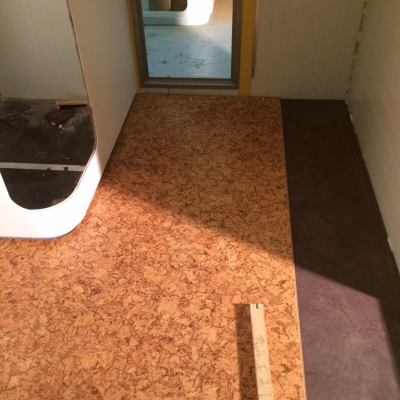

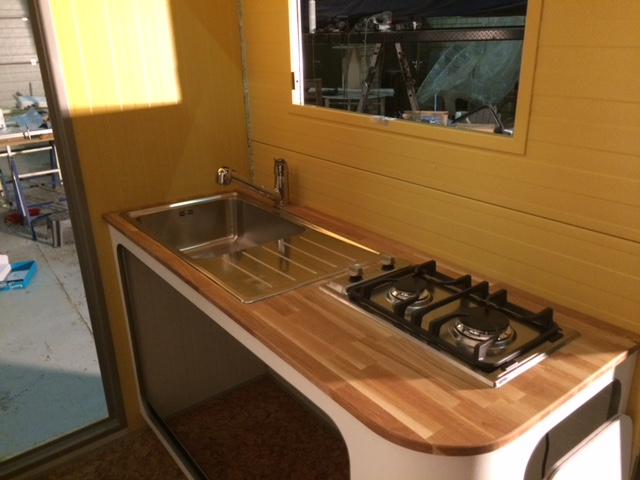

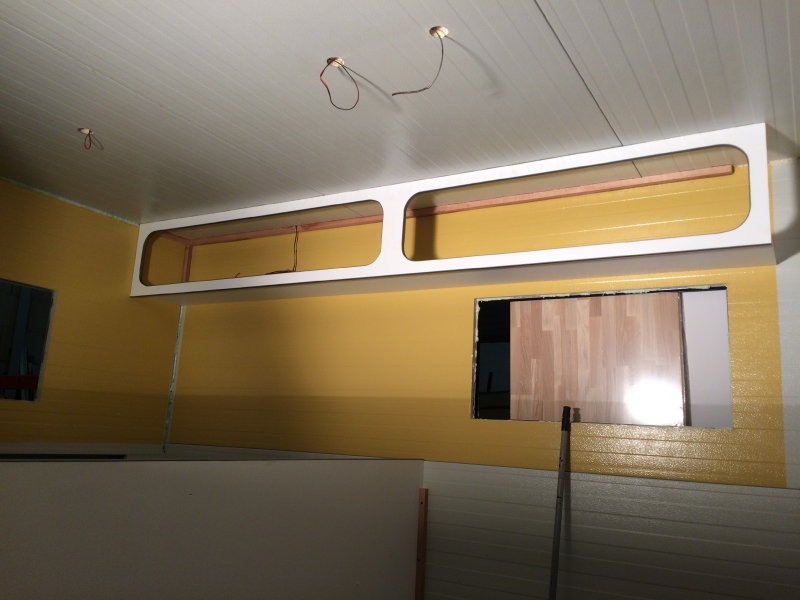

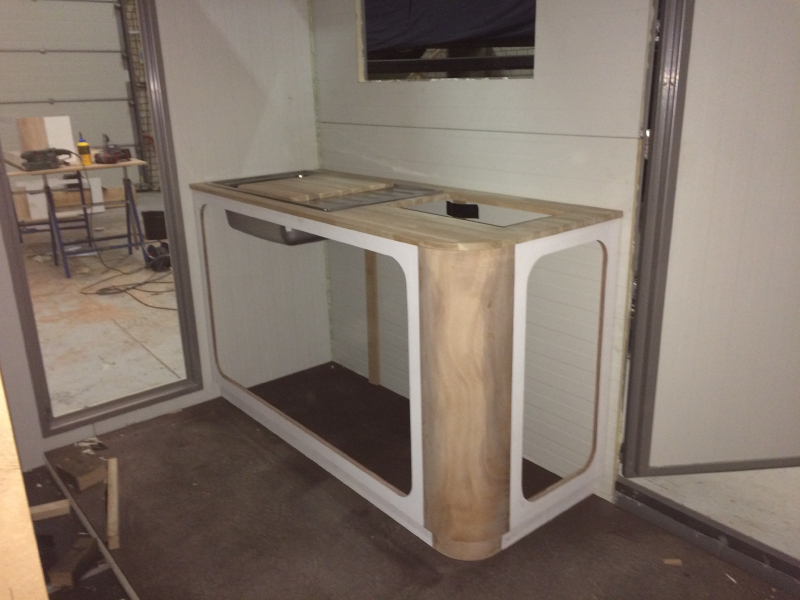

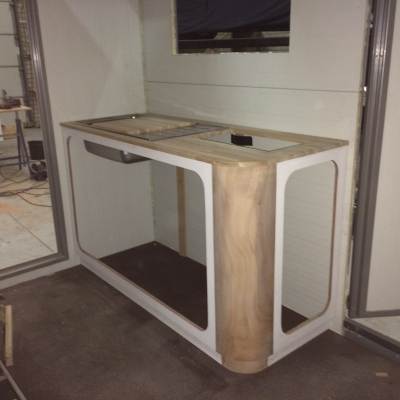

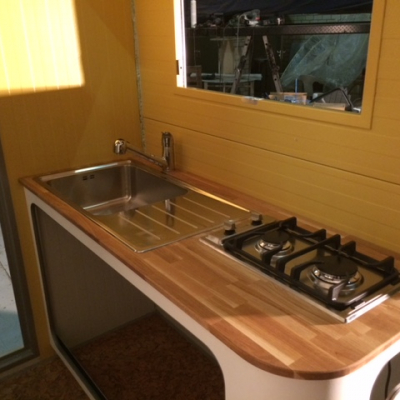

Walls painted sandwich panel, Cork floor in main aria, PVC lining in bathroom and oak countertop |
Kocher

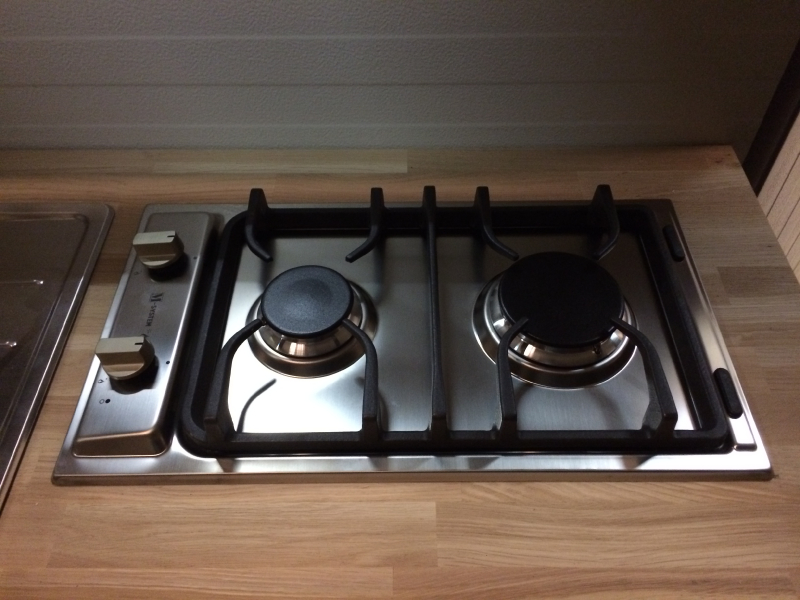

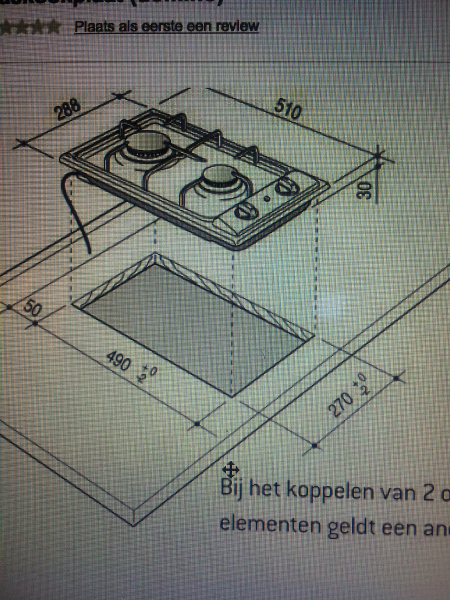

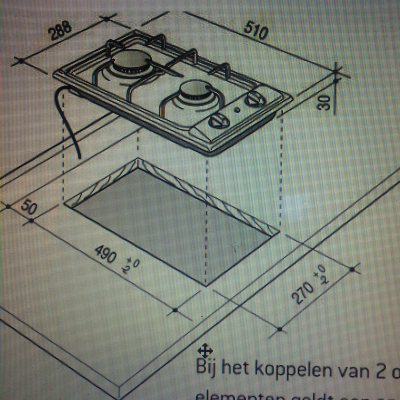

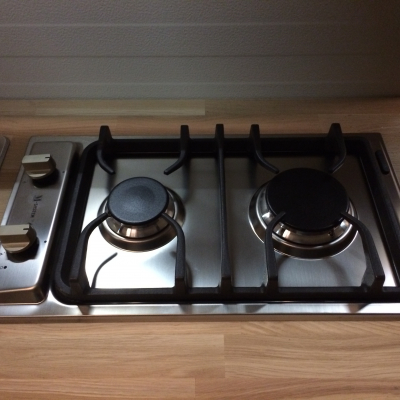

Kocher | 2 burner |
---|---|

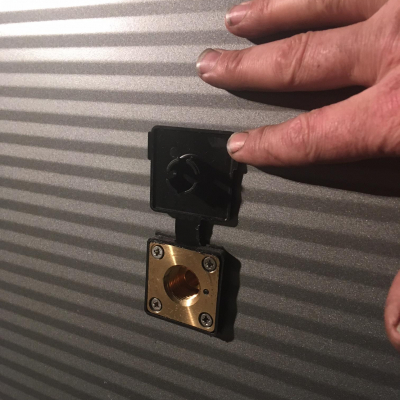

Gasinstallation | LPG tank out side filling |
Kühlschrank, Kühlbox

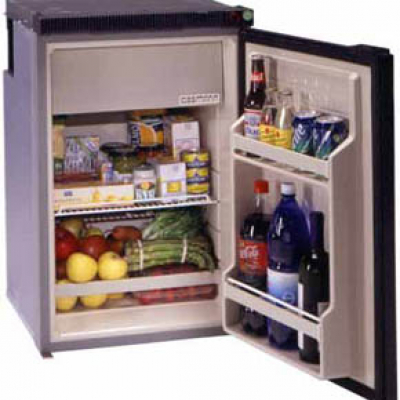

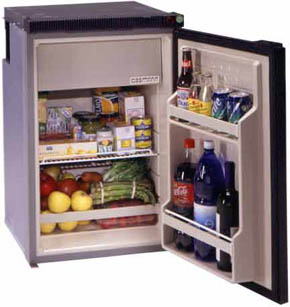

Hersteller und Typ des Kühlschrank | Kissmann KB100 ENI |
---|---|
Sonstiges | |
92 L with small freezer |
Stromkonzept
Stromspannung im Chassis | 24v |
---|---|
Stromspannung im Aufbau | 12v and 220 |
Ladewandler 24-12V | no |
110V / 230V im Aufbau? | Ja |

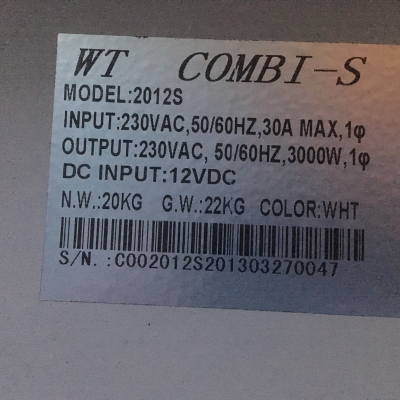

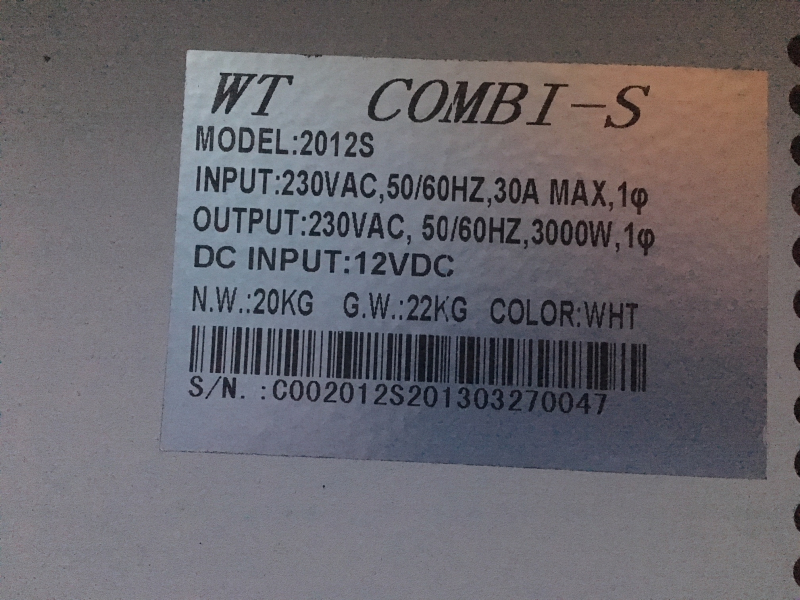

Wechselrichter | Westech 12v-220v 3000w |
Sontiges | |
possible extra separated alternator only for Cabin |
Batteriekapazität im Aufbau
Batteriekapazität im Aufbau | 2x 12v 100 amp |
---|---|
Batterietyp | to be defined |
Batterieladegerät für Aufbaubatterien | solar+possible own alternator+build in charger inverter |
Batterieüberwachung | victron |
Sonstiges | |
The batteries and the water tank are just above the rear axle in the middle of the vehicle |
Stromgewinnung
Solarkapazität | to be defined |
---|---|
Solarregler | to be defined |
Brennstoffzelle | Nein |
Generator | no |
Heizung

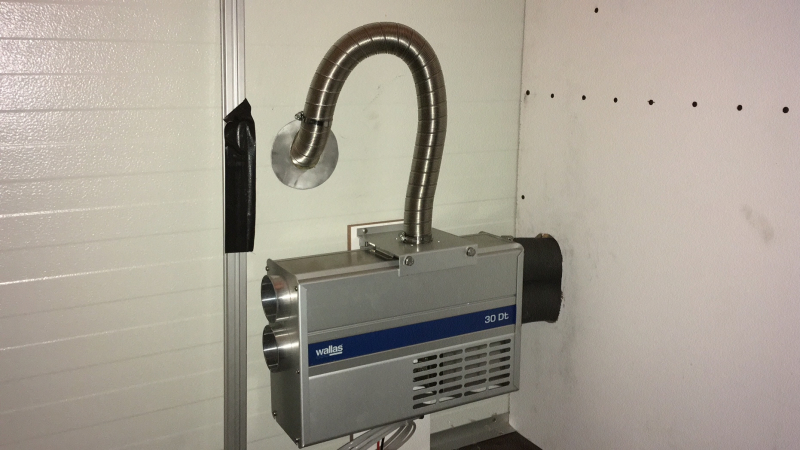

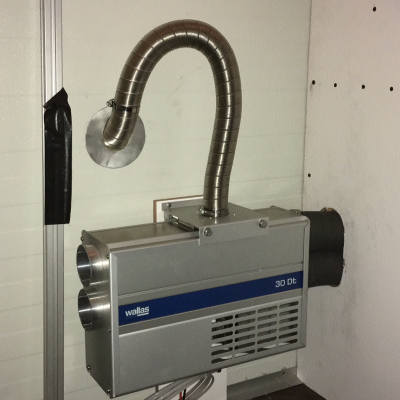

Hersteller und Typ der Heizung | Wallas D30 hot air system on Diesel |
---|---|

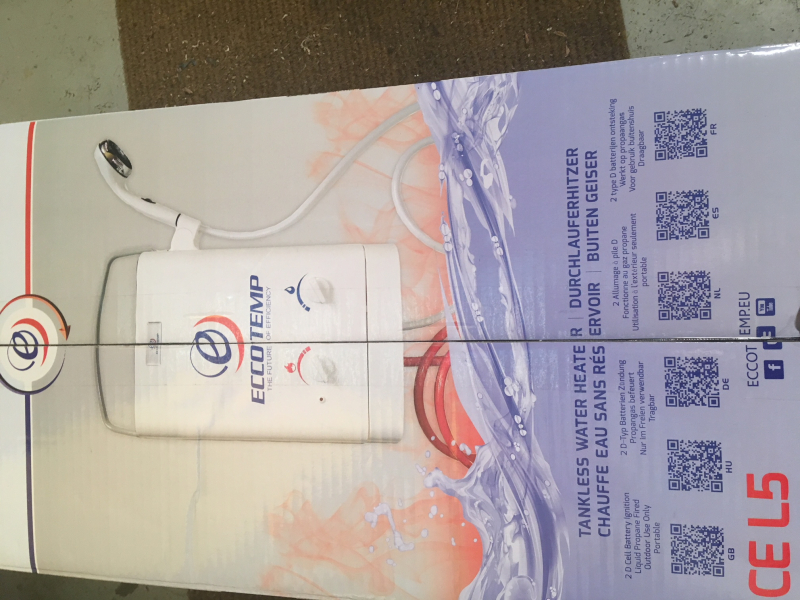

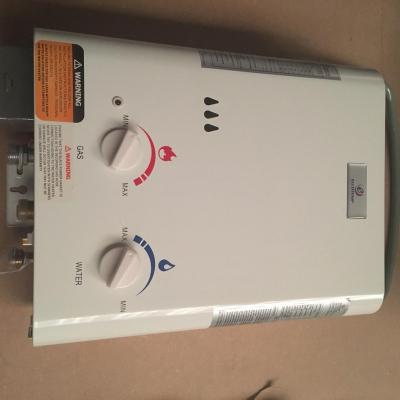

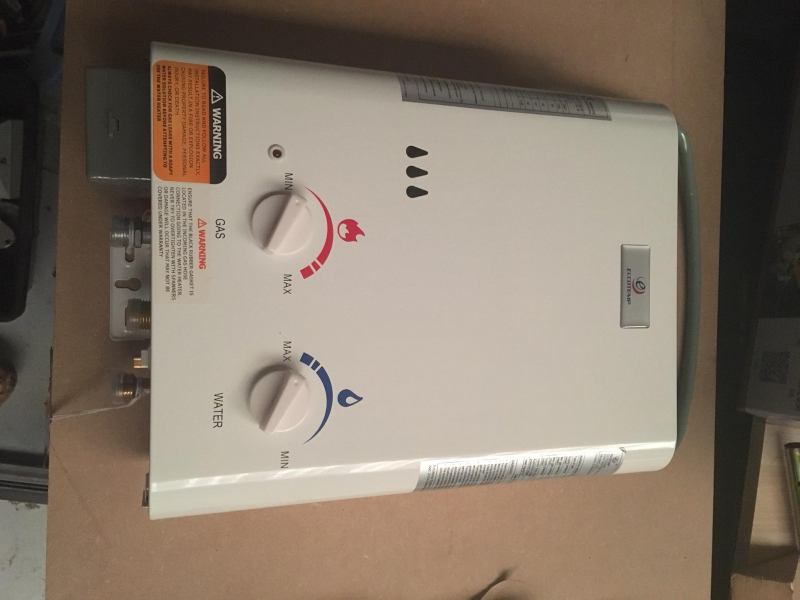

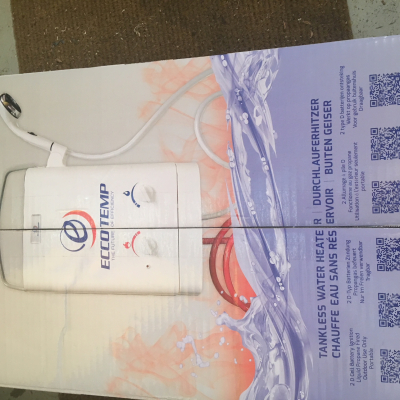

Warmwasseraufbereitung | tankless heater |
Fahrerhausheizung | factory system |
Sonstiges | |

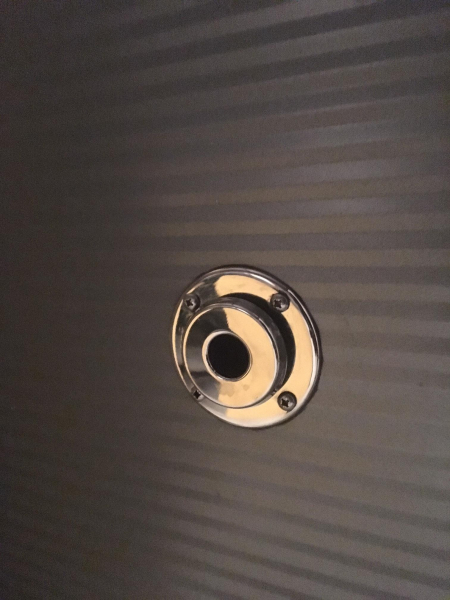

Stainless steel exhaust and combustion air intake . |
Gasanlage
Erläuterung Gasanlage | |
---|---|

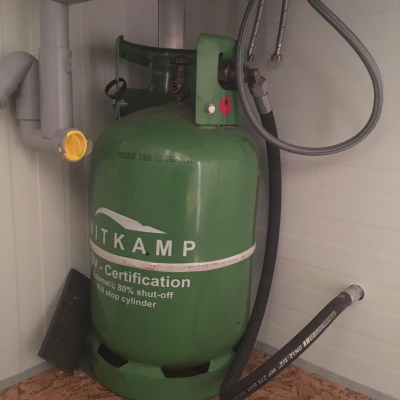

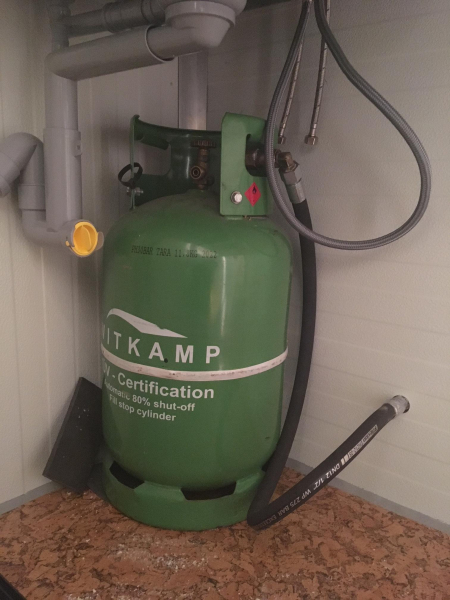

LPG bottle only for cooking and hot water (under construction) |
Wassersystem
Wasserführung | shurflo pump |
---|---|
Wasserfiltersystem | to be defined |

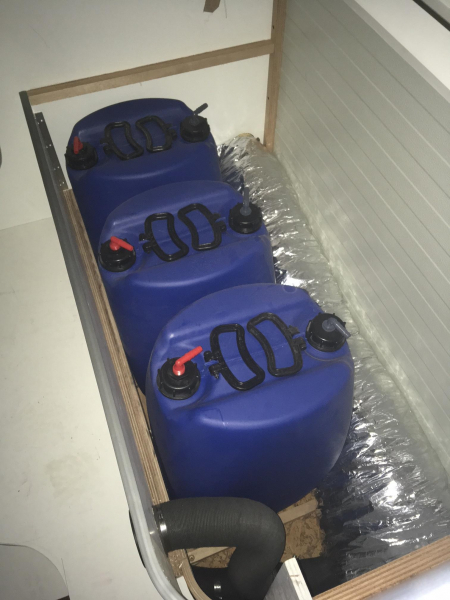

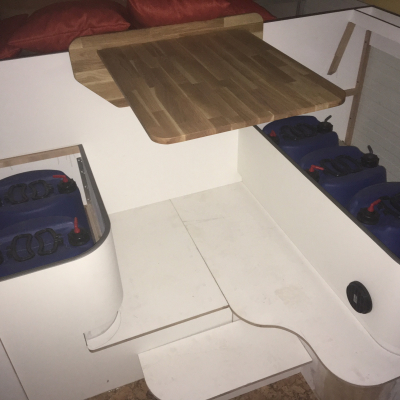

Volumen der Frischwassertanks | 300L Total 5x 60l The water tanks are just above the rear axle |
Volumen der Abwassertanks | 140 L |
Sonstiges | |

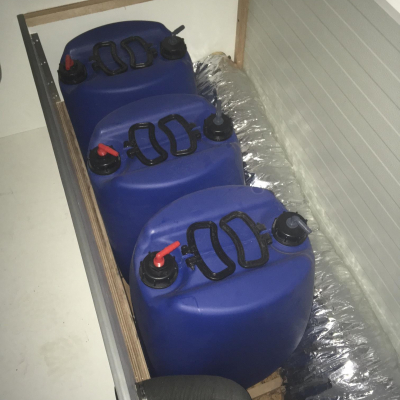

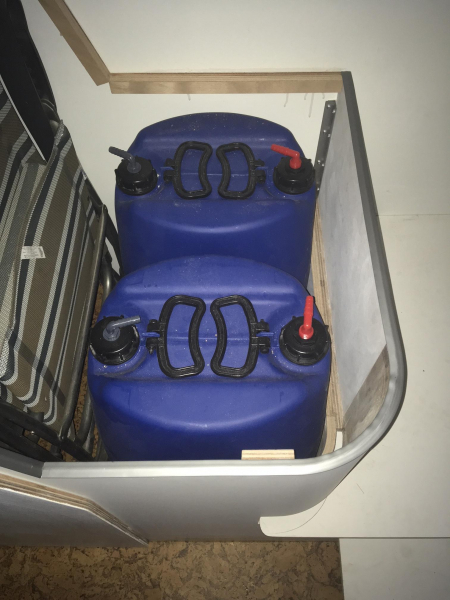

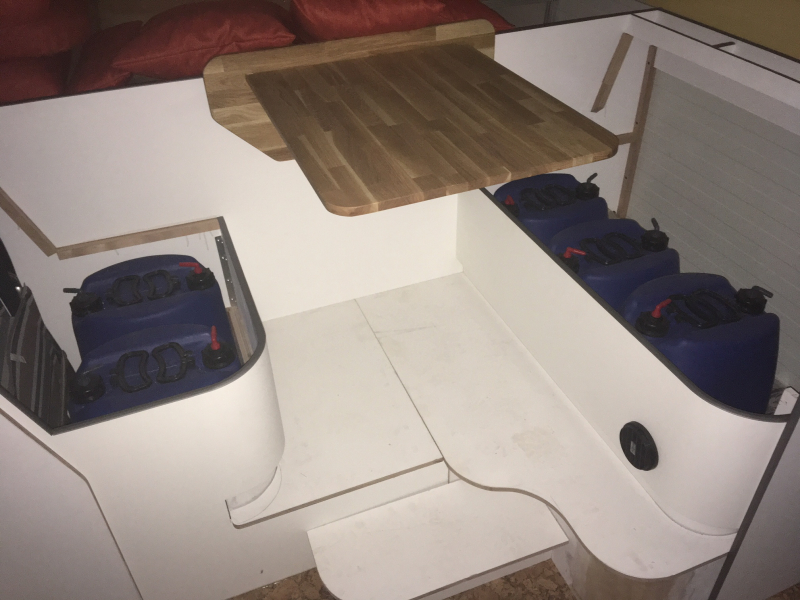

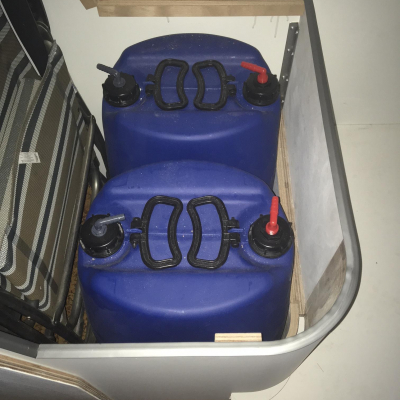

5 x 60L food grade containers that will individual selectable. Hot water for wet room,kitchen and external shower will be provided by tankless water heater. |
Toilette

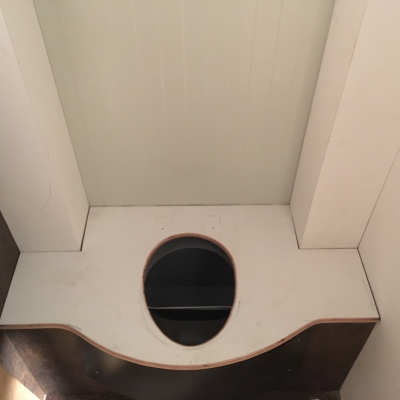

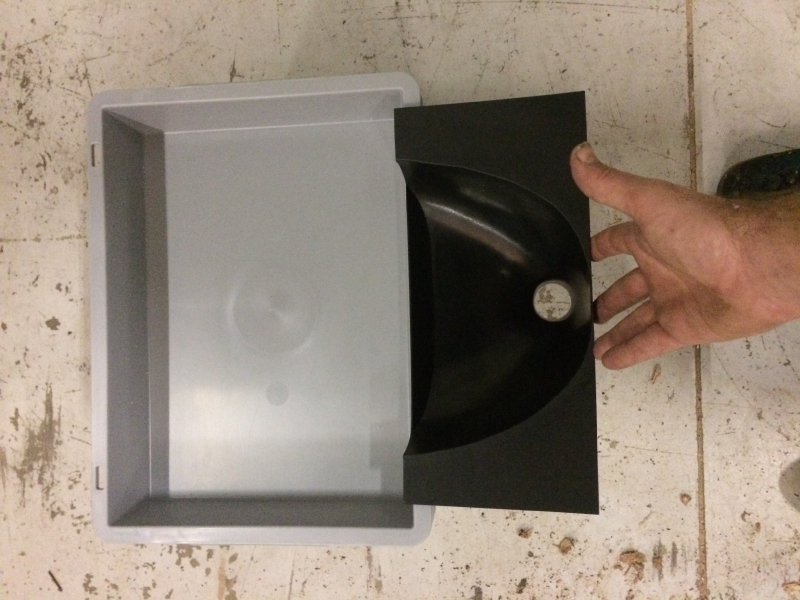

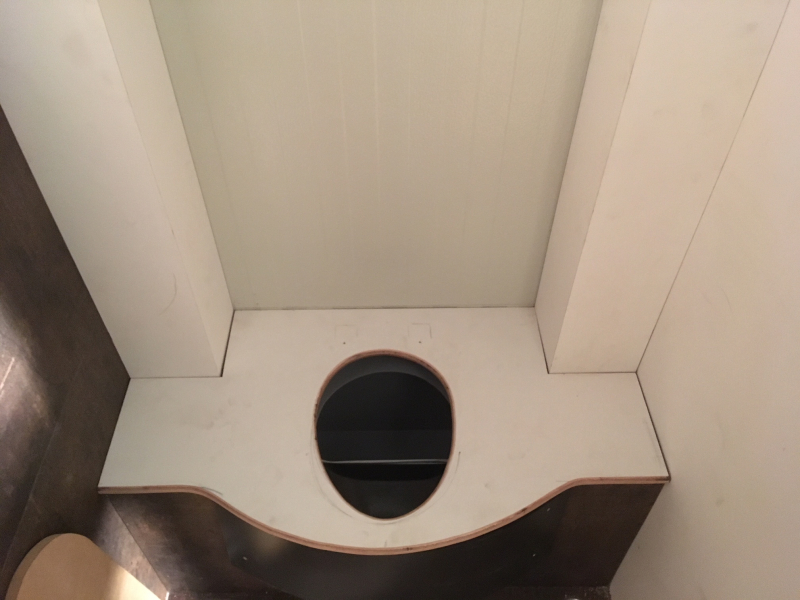

Hersteller und Art der Toilette | self build compost toilet separating liquid and solids |
---|---|
Kapazität Fäkalientank | no |
Sonstiges | |
under construction |
Anbauten
Heckträger | no |
---|---|
Dachgepäckträger | no |
Stauboxen | on chassis |
Außenkochstelle | to be defined |
Markise | to be defined |
Sonstiges | |
Retractable terras. Will be sliding from under cabin. Recovery system to get unstuck Small workshop in rear storage |
