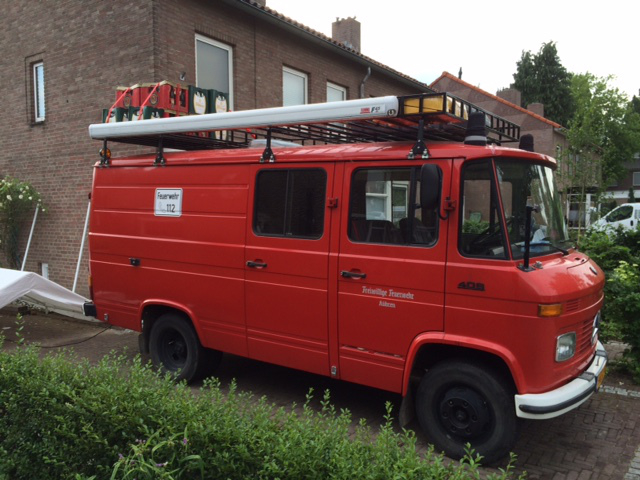

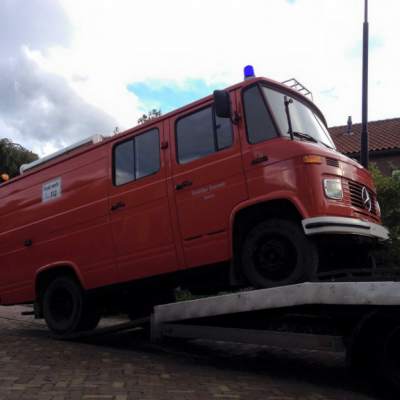

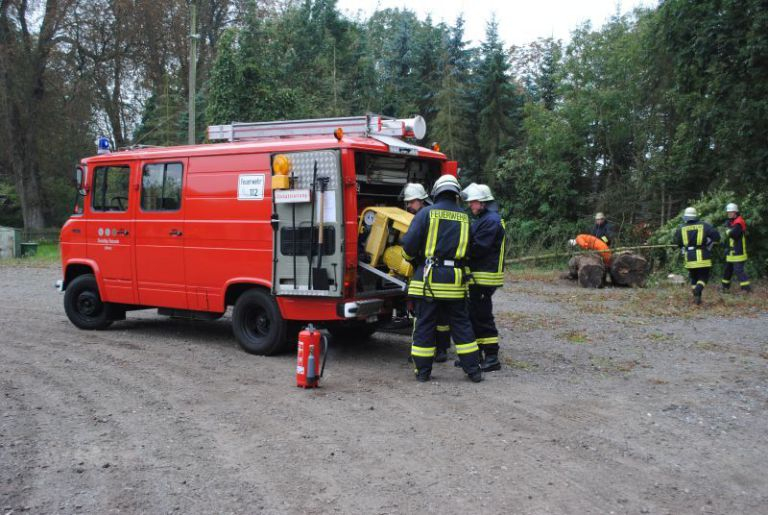

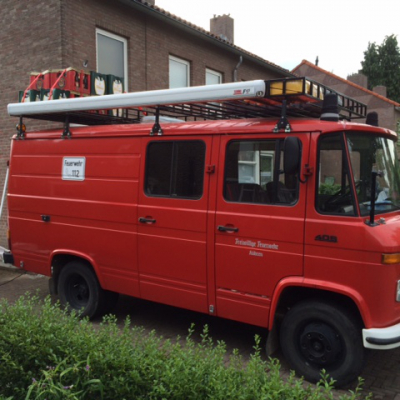

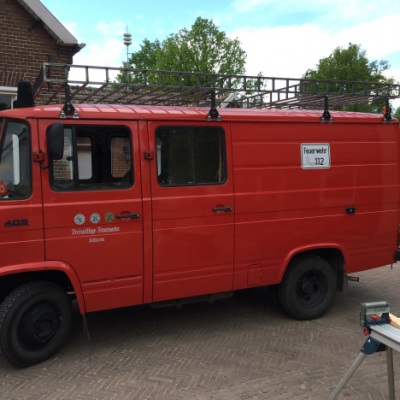

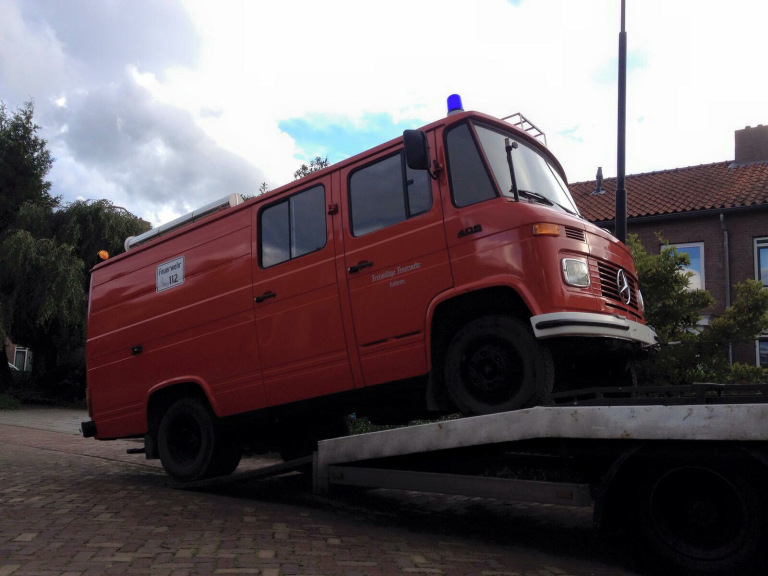

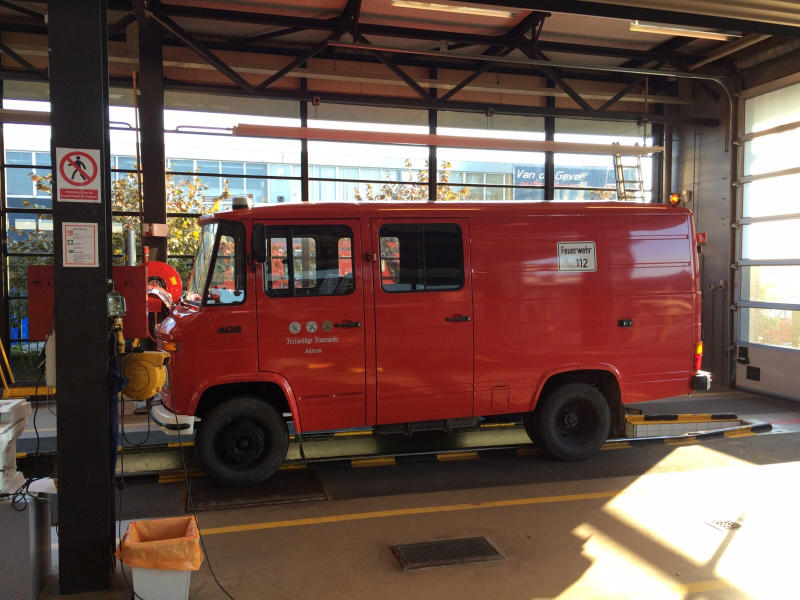

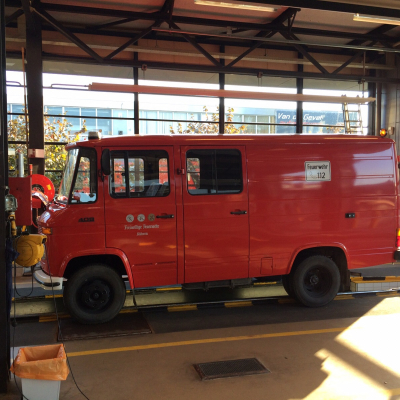

Mercedes LF409

6 person family travel car

Allgemeine Angaben

Fahrzeughersteller und Typ Daimler Benz
Name des Halters Red Bull
Land der Zulassung Netherlands
Webseite www.brandweer409.wordpress.com
Baujahr 1981
Fahrzeug steht zum Verkauf? Nein

Motor

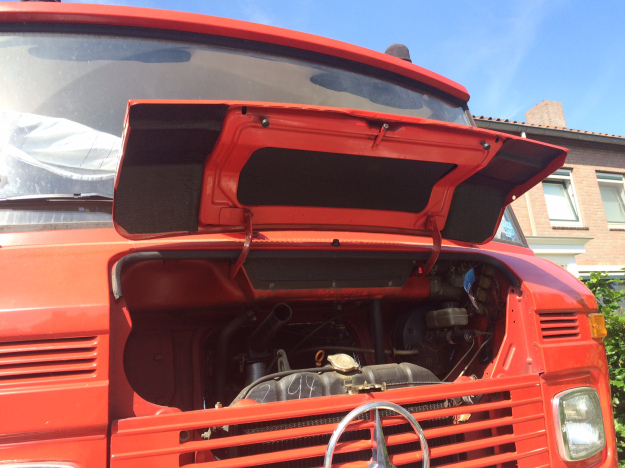

Motortyp M115.952
Hubraum 2.3
Zylinderzahl 4
Motorleistung in PS 90
Sonstiges
Baumuster: 309.050 – 059
Fuel consumption RON98 20l/100km (1l/5km). LPG= possible (not installed)
Odo: 34.000km Original
Weight: 2450kg

Fahrgestell

Radformel (4x2, 4x4, 6x6, 8x8) 4x2
Anzahl der zugelassenen Sitze 5 (6 on paper)
Reifengröße 6.50R16
Felgen 16
Reifenart On- Offroad
Tankkapazität 80
Dieselfilter Nein
Allrad zuschaltbar oder permanent None
Differenzialsperren None

Aufbau

Aufbauhersteller Daimler-Benz

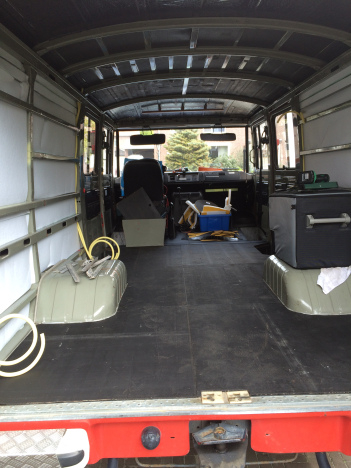

Kabinenmaße (Innen) 3000x1900x1600

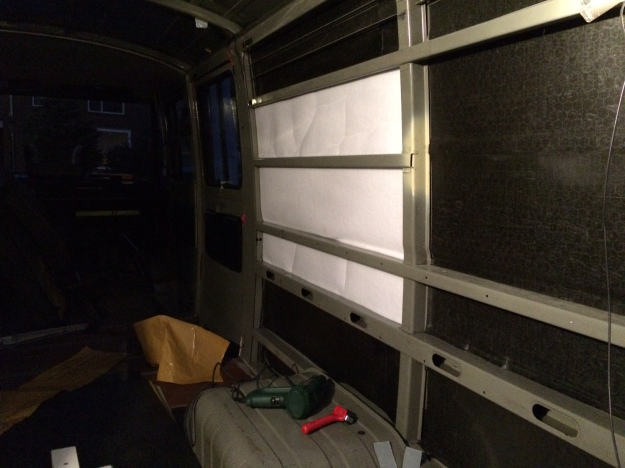

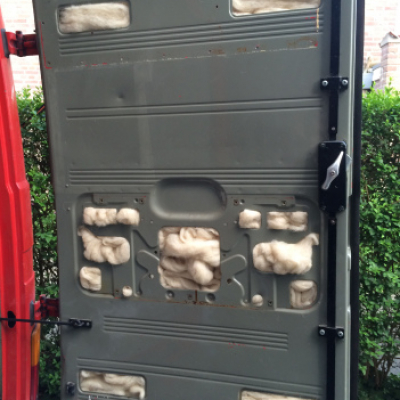

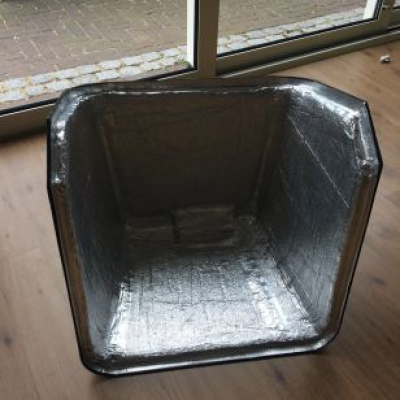

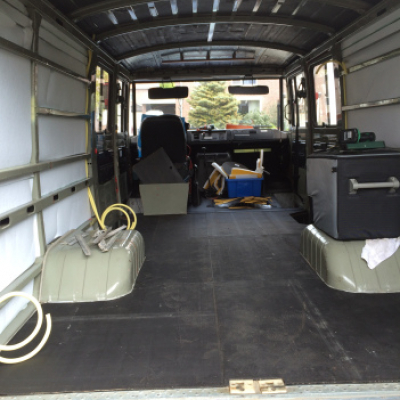

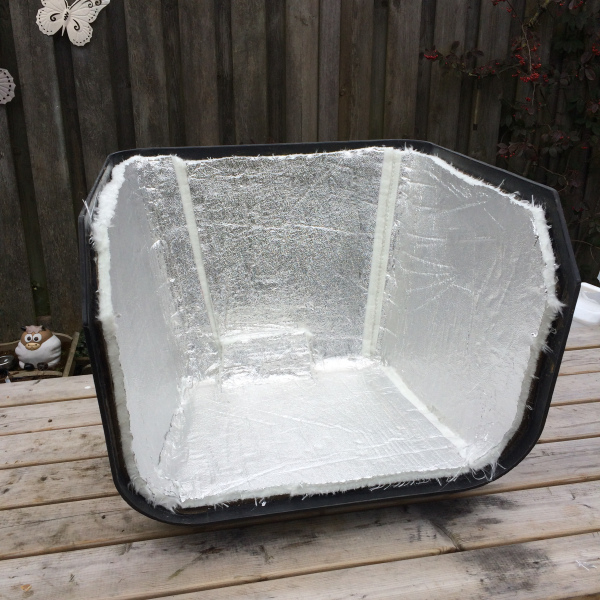

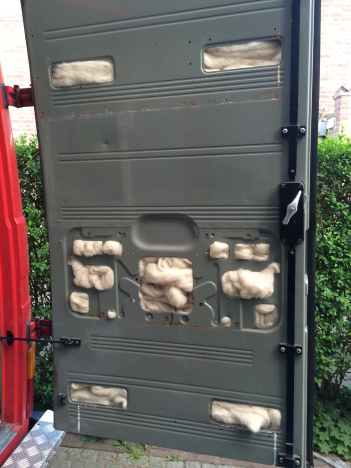

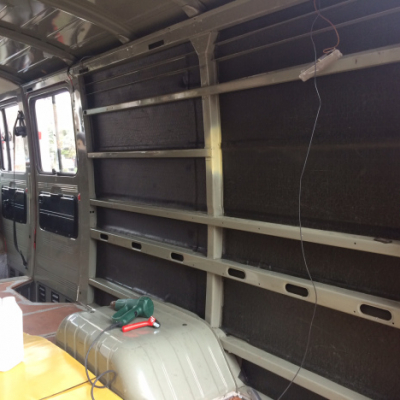

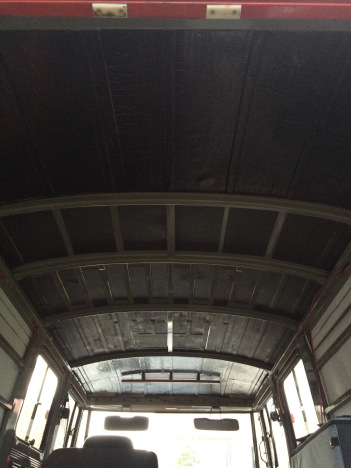

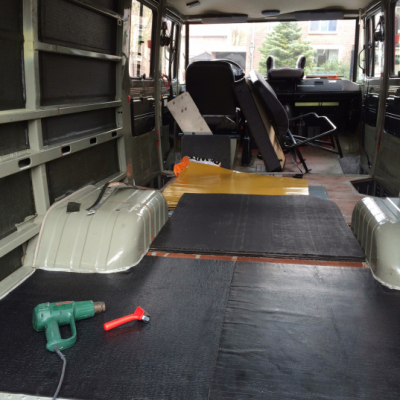

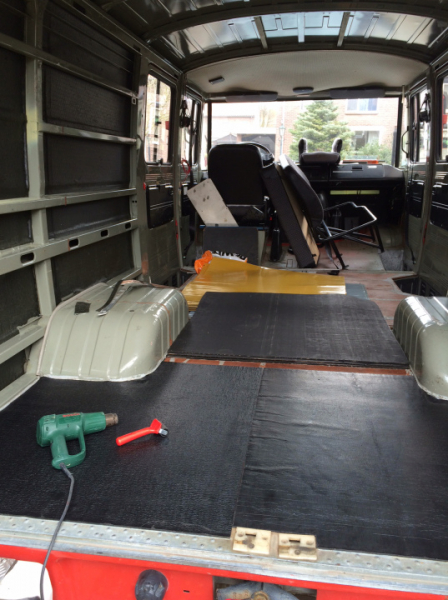

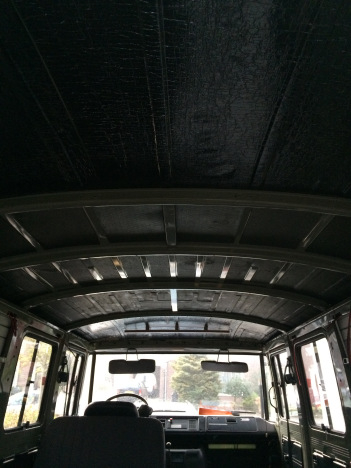

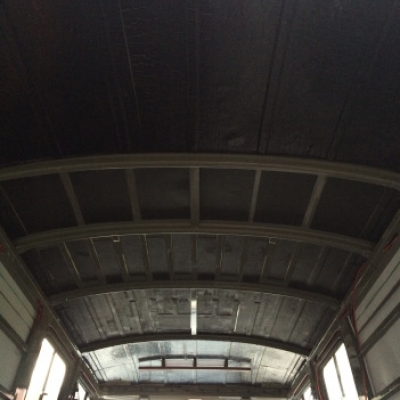

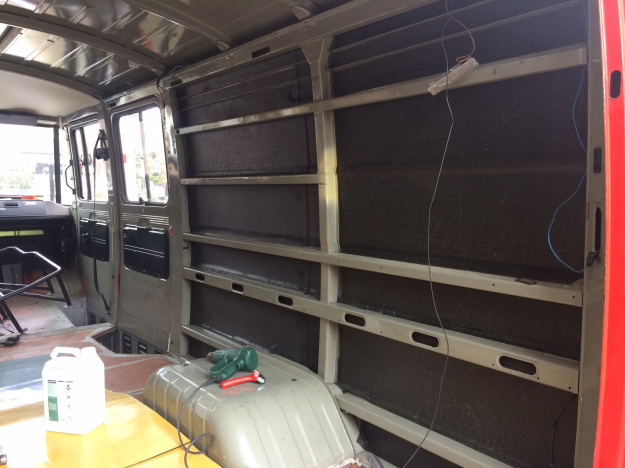

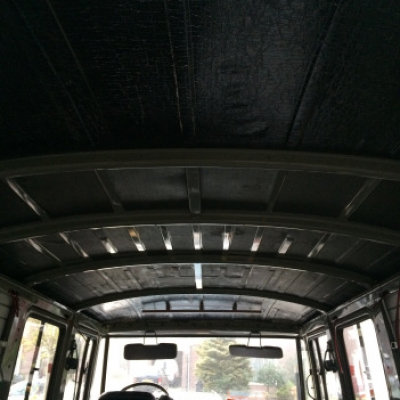

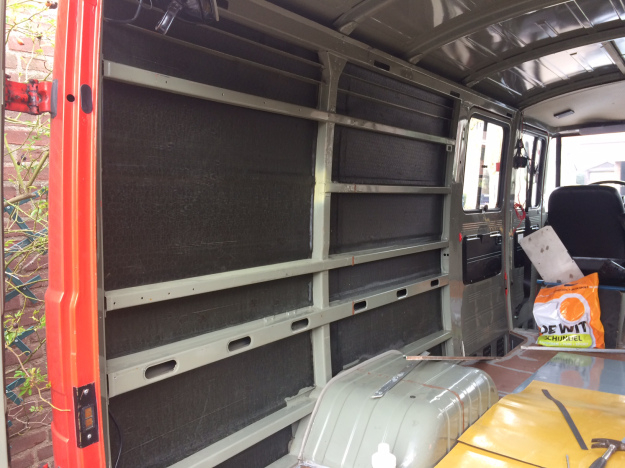

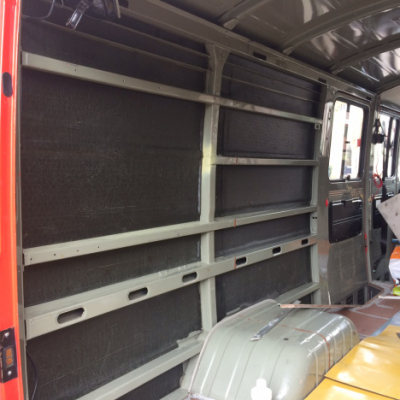

Art und Stärke der Dämmung Akotherm 20mm, Vibraflex Normal, Vibraflex Extreme (dammung), Whool in the doors.

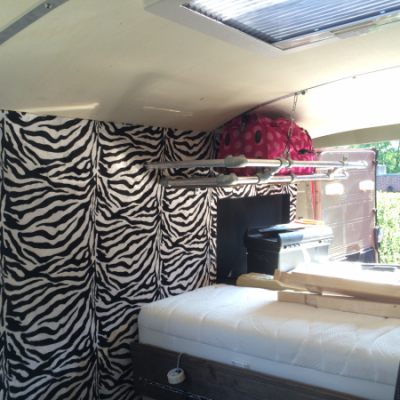

Anzahl der Schlafplätze 2 fieldbeds above cabin, 1 table place and 1 fixed doublebed 1400x2000
Fenster Roofwindow Seitz Midi Heki
Zwischenrahmen None
Sonstiges
https://brandweer409.wordpress.com/category/isolatie/

Sound isolation:
60 km/u = 72db
70 km/u = 74db
80 km/u = 77db (before 89db)
90 km/u = 77db
100 km/u = 79 db

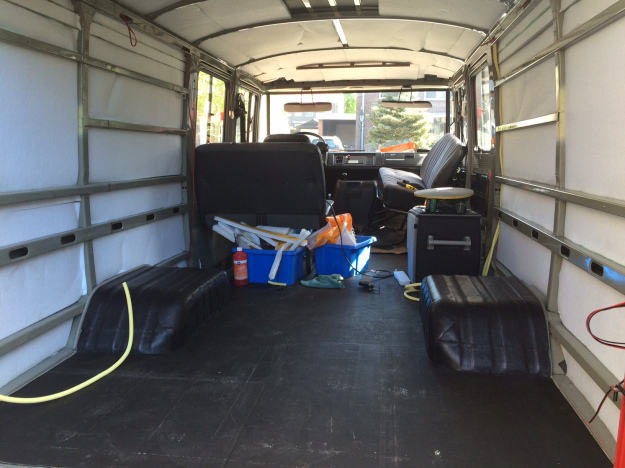

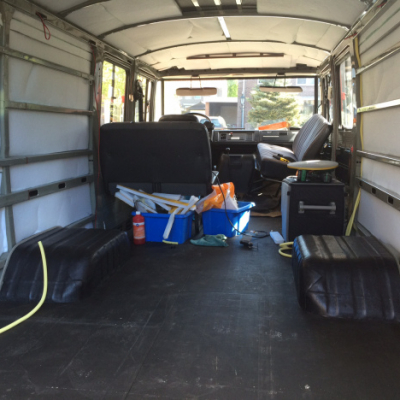

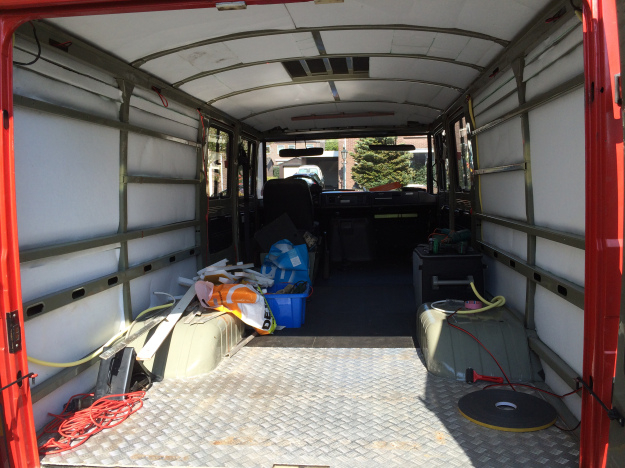

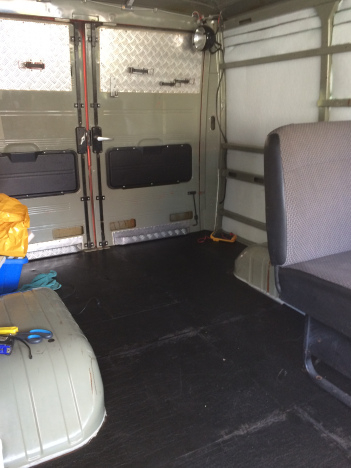

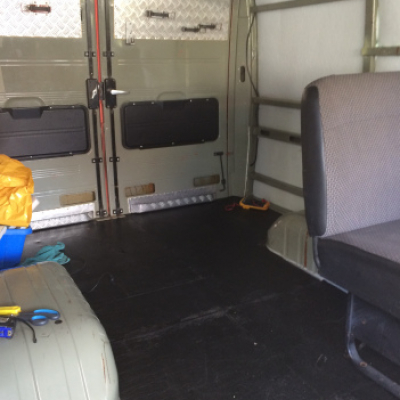

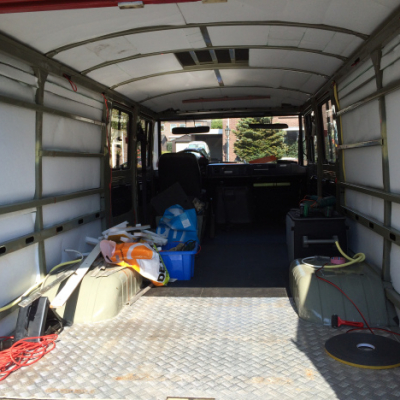

The VAN is thermal and sound isolated.

Grundriss

Erläuterung Grundriss
https://brandweer409.wordpress.com/category/inrichting/

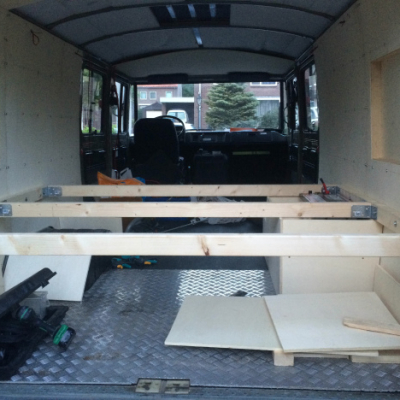

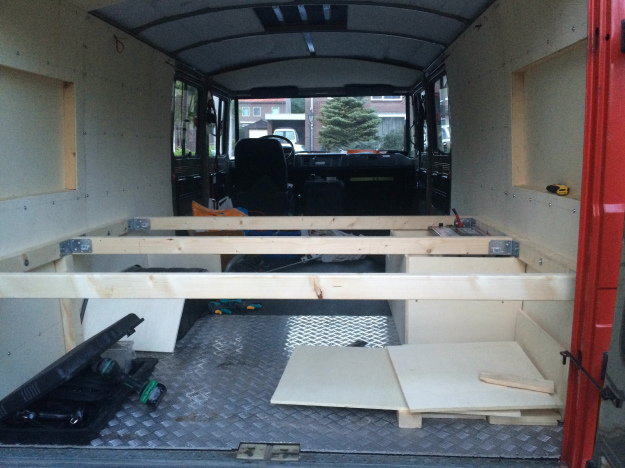

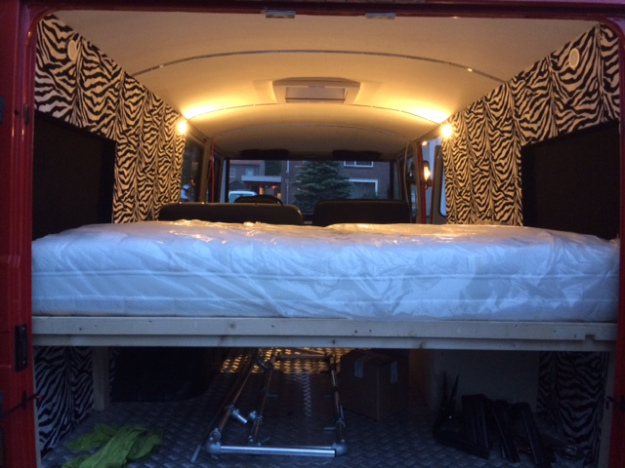

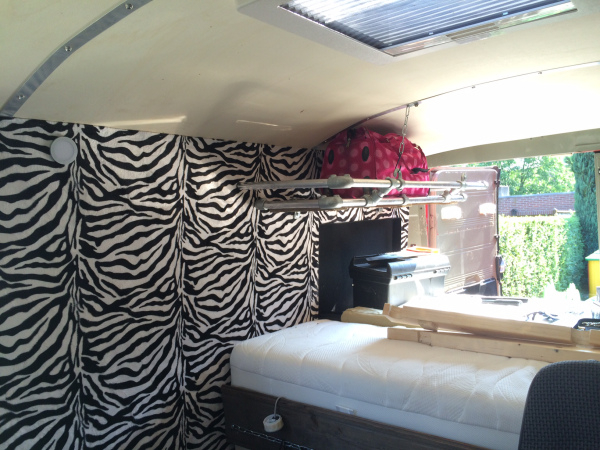

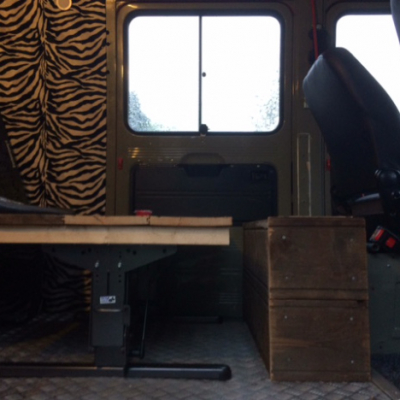

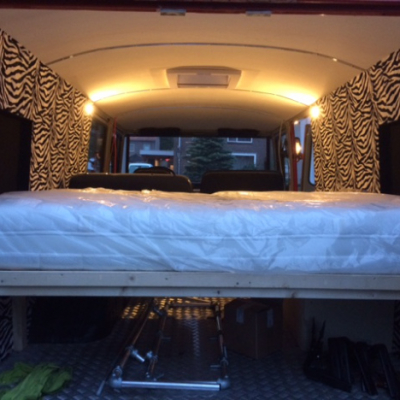

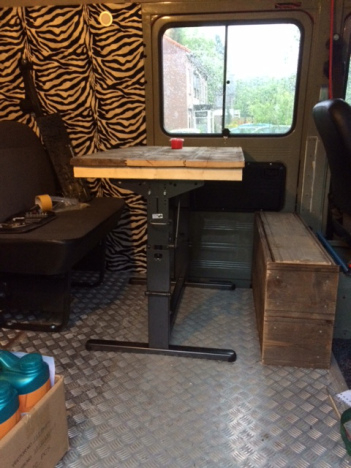

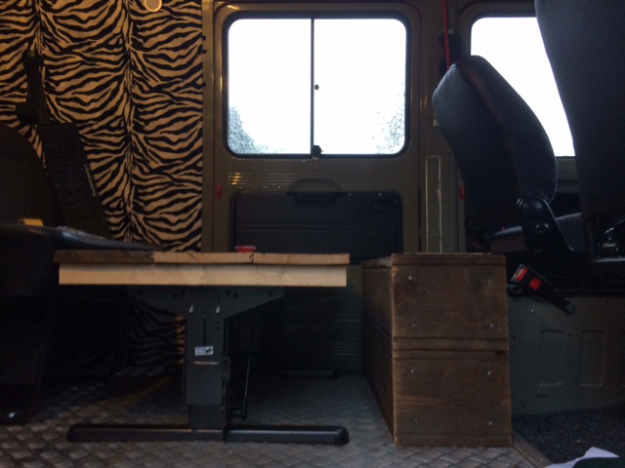

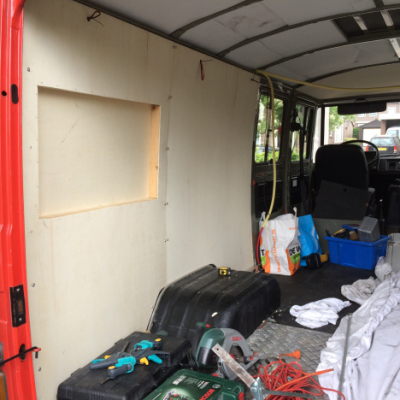

Need to sleep and eat with 5. Fixed double bed with thick matress and garage underneath. Two kids sleep in the fieldbeds above the steeringwheel and 1 sleeps on the table. Small benge for storage.

Möbelbau

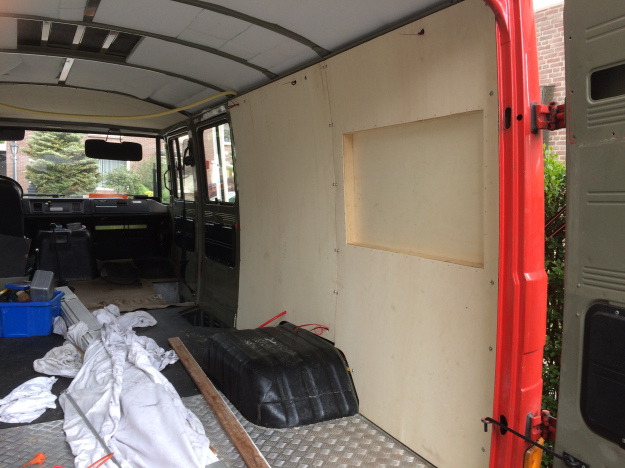

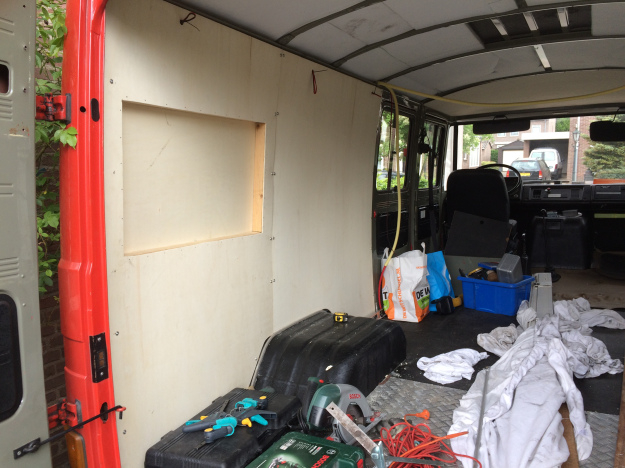

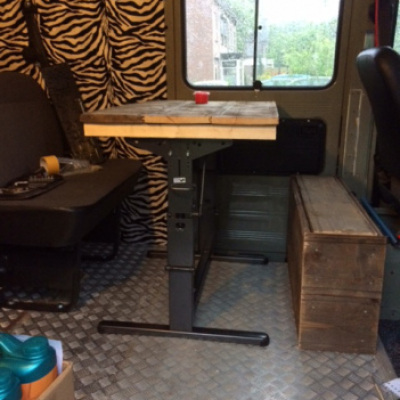

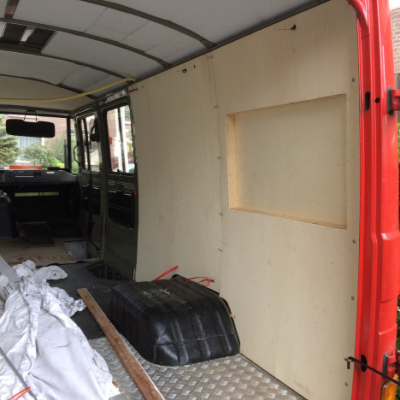

Material des Möbelbaus Recycled wood from an old house
Sonstiges
https://brandweer409.wordpress.com/category/inrichting/

Kocher

Kocher Portable 2 burner with 5kg GAS PROPANE and 2x protable single burners GAS PROPANE
Gasinstallation None

Kühlschrank, Kühlbox

Hersteller und Typ des Kühlschrank Waeco CF40 compressor

Stromkonzept

Stromspannung im Chassis 12V
Stromspannung im Aufbau 12V
Ladewandler 24-12V None
110V / 230V im Aufbau? Ja
Wechselrichter Victron inverter 12V/350A
Sontiges
https://brandweer409.wordpress.com/category/elektra/

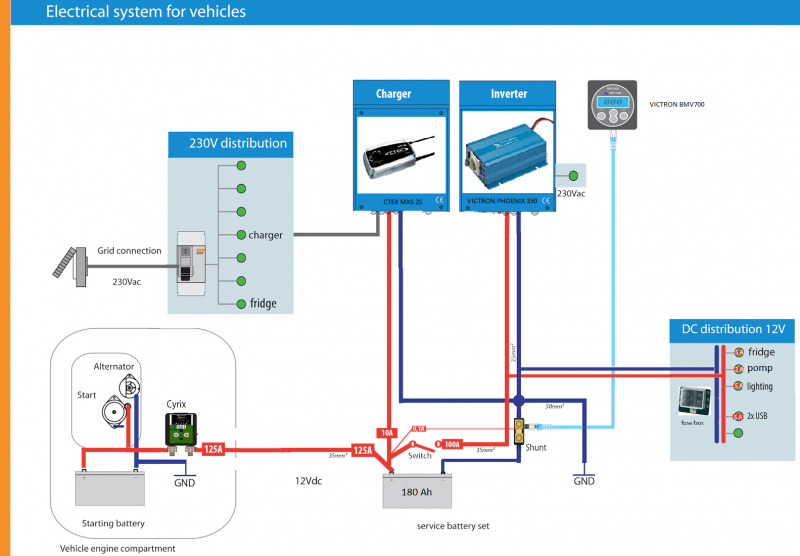

Battery consumption 20Ah/ day (mainly fridge). With this consumption we can stay put for 4,5 days (50% battery capacity). Solar not nescesary.

(1x) BAttery 180Ah AGM
Victron Cyrix-ct 12/24V-120A
Inverter 12V – 230V Phoenix 350 Victron
230V intake
Battery charger (Ctek 25 mxs)
Battery monitor Victron BMV-700

Batteriekapazität im Aufbau

Batteriekapazität im Aufbau 180Ah
Batterietyp AGM
Batterieladegerät für Aufbaubatterien Ctek MXS25
Batterieüberwachung Victron BMV700
Sonstiges
https://brandweer409.wordpress.com/category/elektra/

Stromgewinnung

Solarkapazität None
Solarregler None
Brennstoffzelle Nein
Generator None
Sonstiges
https://brandweer409.wordpress.com/category/elektra/

Heizung

Hersteller und Typ der Heizung Planned: Webasto 2000ST air heater
Warmwasseraufbereitung None

Gasanlage

Erläuterung Gasanlage
None

Wassersystem

Wasserführung Submersible pump
Wasserfiltersystem None
Volumen der Frischwassertanks 12l
Volumen der Abwassertanks 12l

Toilette

Hersteller und Art der Toilette Porta Potti
Kapazität Fäkalientank Enough for a family of 5

Anbauten

Heckträger Fiamma bicycle carrier

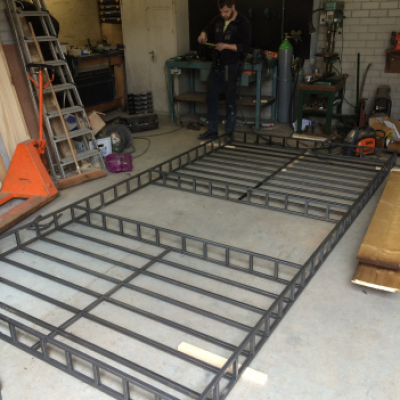

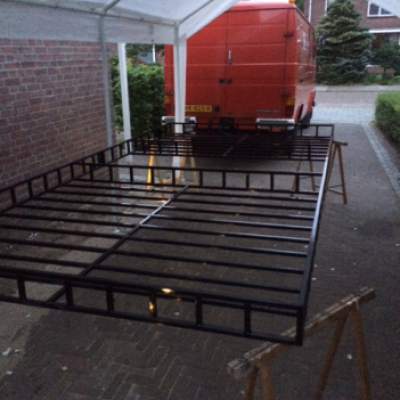

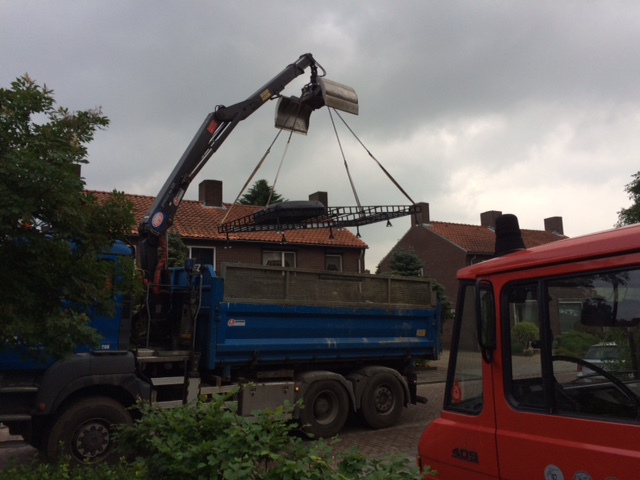

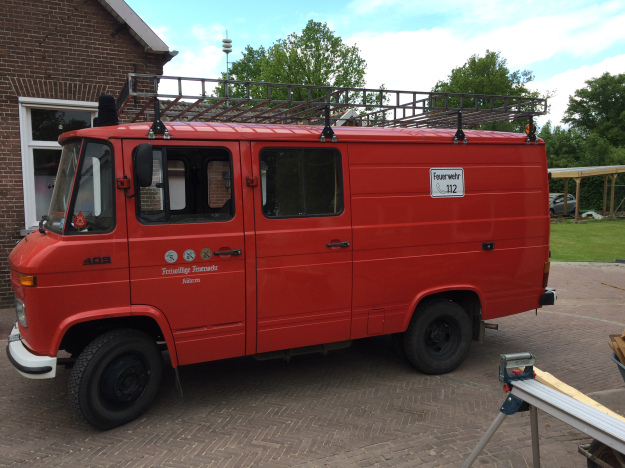

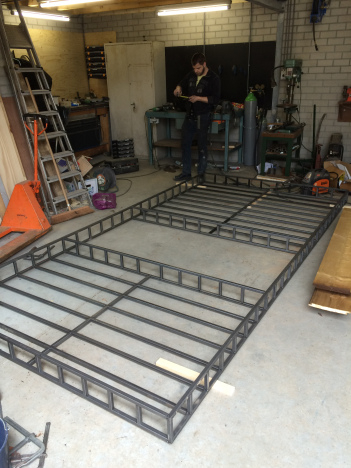

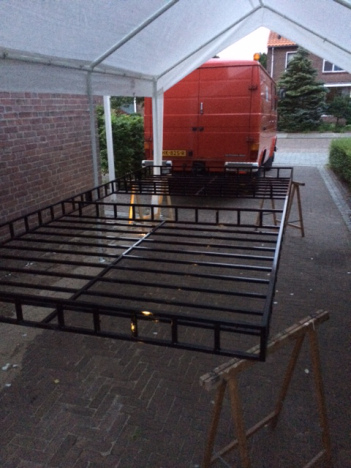

Dachgepäckträger Yes, self made
Stauboxen Plenty
Außenkochstelle Yes portable camping stove
Markise Fiamma F45 3500mm
Veröffentlicht 08.11.17
Halter Ivan de Wit
Aufrufe 14096
Ausgefüllt 100%
